Fledermaus Configure Custom Toolbar Dialog

Configure Custom Toolbar Dialog

Custom Toolbar


How to Start

  • Main Menu Bar → File → Configure Custom Toolbar
  • If the Custom Toolbar is already enabled, the
     icon will launch the Configure Custom Toolbar

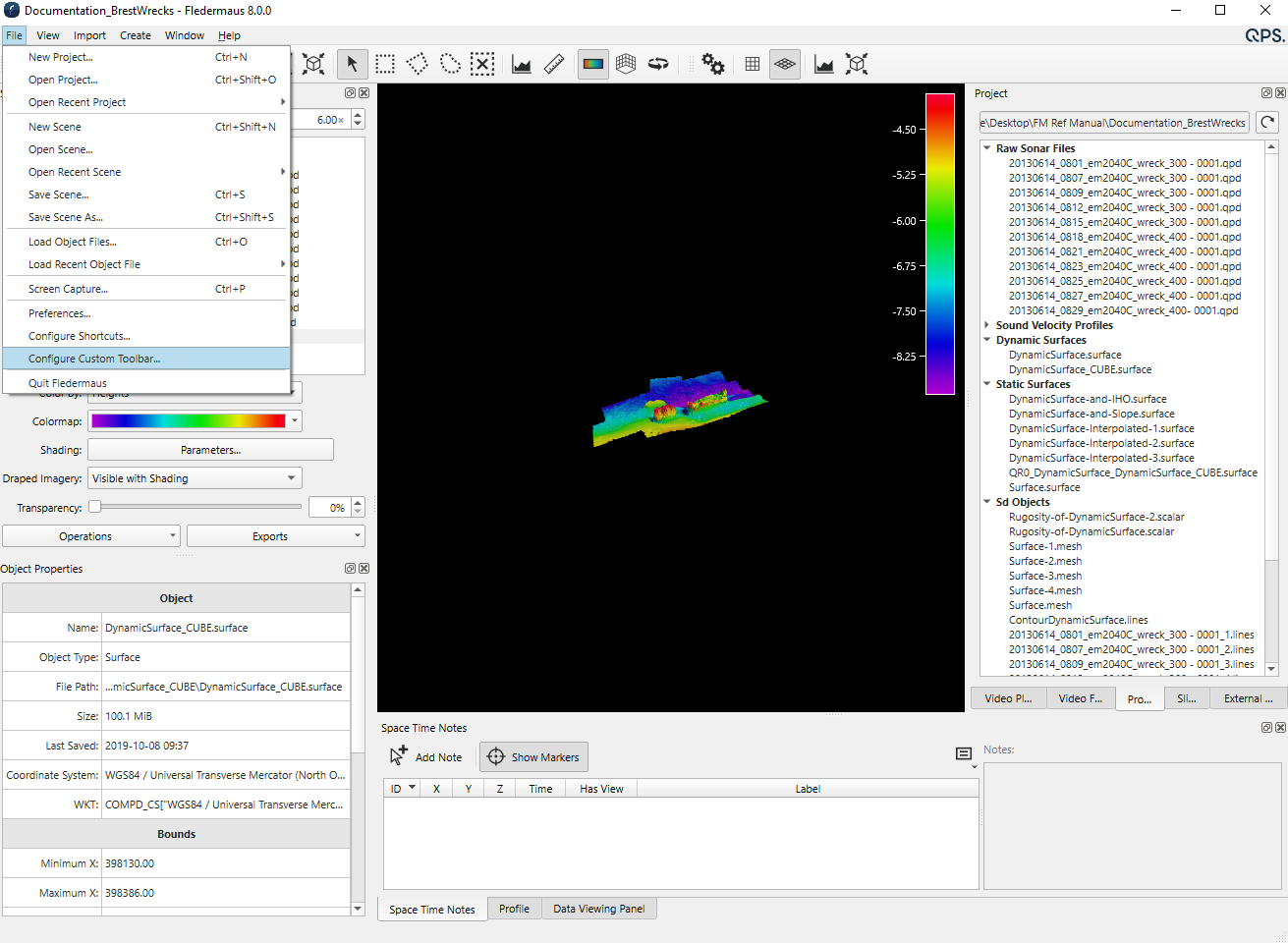

Configure Custom Toolbar Dialog from File Menu

What it Does

This dialog is used to configure items in the Custom Toolbar

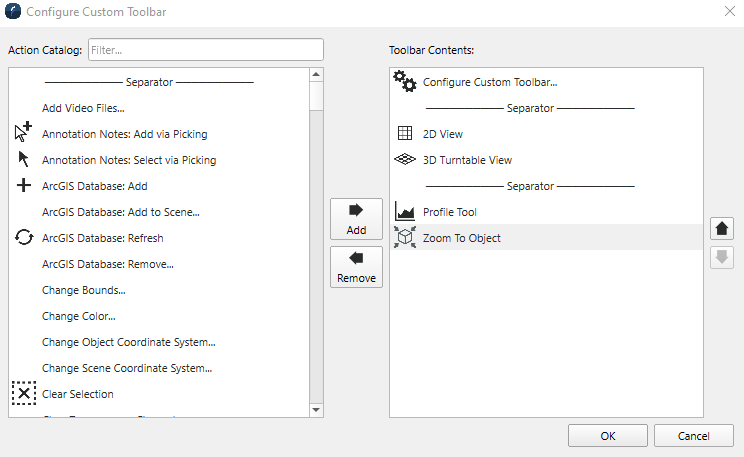

General Description

This dialog enables the customization of the Custom Toolbar by providing access to pre-determined actions. Actions can be filtered, added and removed, sorted and separated to facilitate the customization needs. All changes will be reflected in the Custom Toolbar upon completion.


Filter

The Action Catalog Filter can be used to search and narrow the list of actions.

Action Catalog

The Action Catalog list contains all available actions that can be added to the Custom Toolbar. Included as the first element in the list is a line separator that can be used for visual separation between actions.

Tool Bar Contents

The Tool Bar Contents list contains all the actions, separators and ordering that are currently applied to the Custom Toolbar

Add

The Add button will add the selected Action in the Action Catalog list to the Tool Bar Contents list.

Remove

The Remove button will remove the selected Action from the Tool Bar Contents list.

Up/Down

The Up or Down button will move the currently selected Action in the Tool Bar Contents list in the appropriate direction. An order change in the Tool Bar Contents list will be reflected in the Custom Toolbar from Left to Right or Top to Bottom depending on the layout orientation of the Custom Toolbar.

Ok

Clicking Ok will apply the new layout as defined in the Tool Bar Contents list to the Custom Toolbar and close the dialog.

Cancel

Clicking Cancel will revert all changes.
