Fledermaus Mesh Slicer Dialog

Mesh Slicer Dialog

How to Start

• Scene Objects Dock → Right-Click on Object → Operations → Slice Mesh

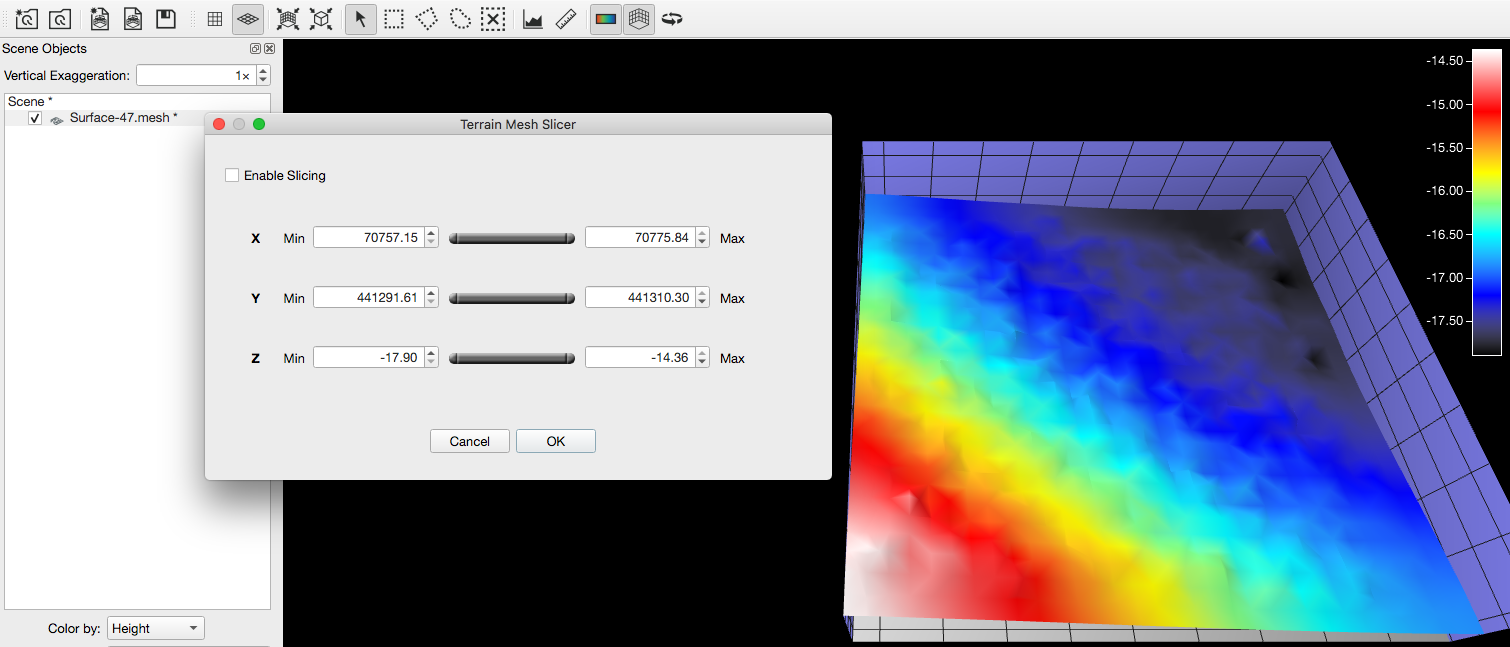

Terrain Mesh before being sliced using the Terrain Mesh Slicer Dialog.

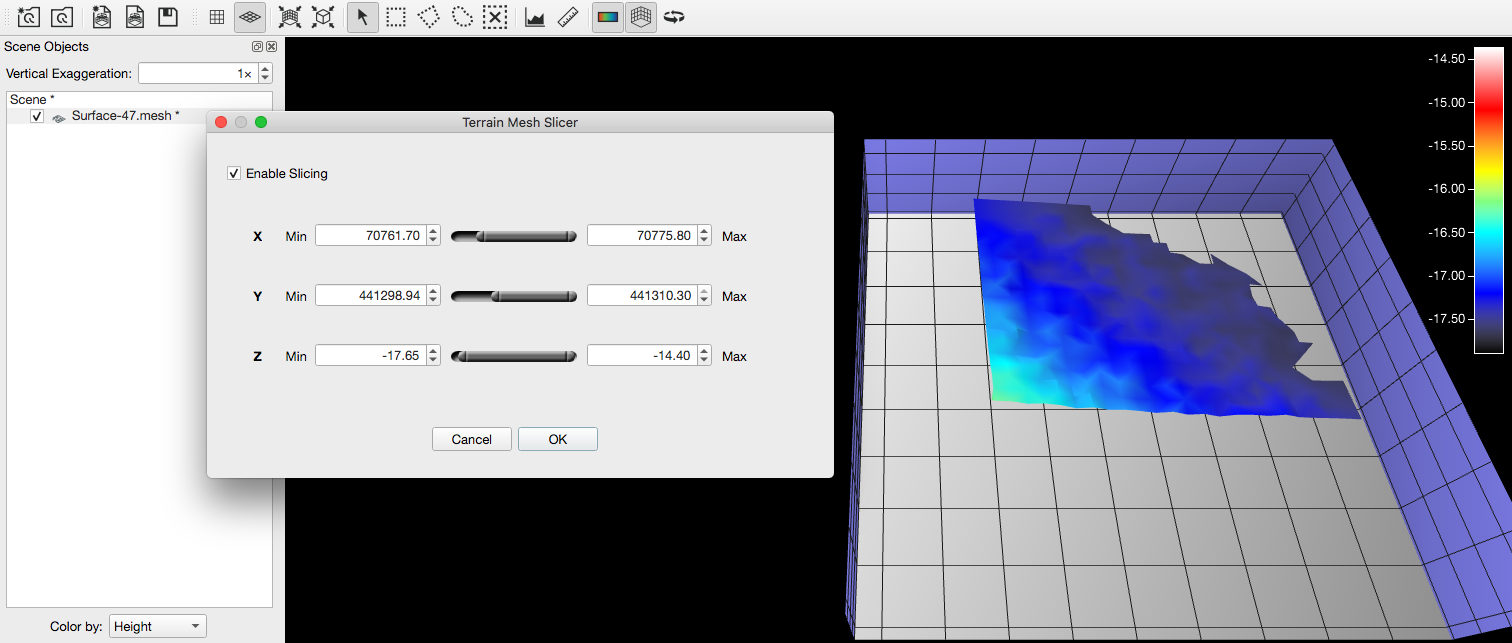

Terrain Mesh after being sliced using the Terrain Mesh Slicer Dialog.

What it Does

The  Mesh Slicer dialog allows the user to slice the selected terrain mesh on X,Y and/or Z axis.

General Description

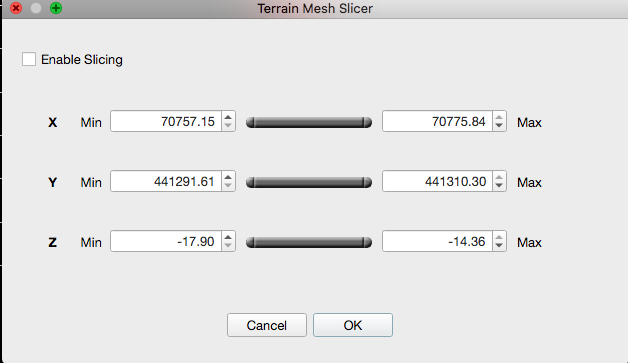

Click on the Enable Slicing checkbox to enable or disable the Terrain Mesh slicing feature.

Use  the X,Y,Z range sliders to select the ranges to be rendered on the three axis.

After clicking the OK button the  dialog windows will be closed. Should any modification to the slicing options is needed, this dialog needs to be opened again following the steps described on the How to Start section of this page.
