Fledermaus Screen Capture Dialog

Screen Capture Dialog

How to Start

• Main Menu Bar → File → Screen Capture
• Keyboard Shortcut: Ctrl+P

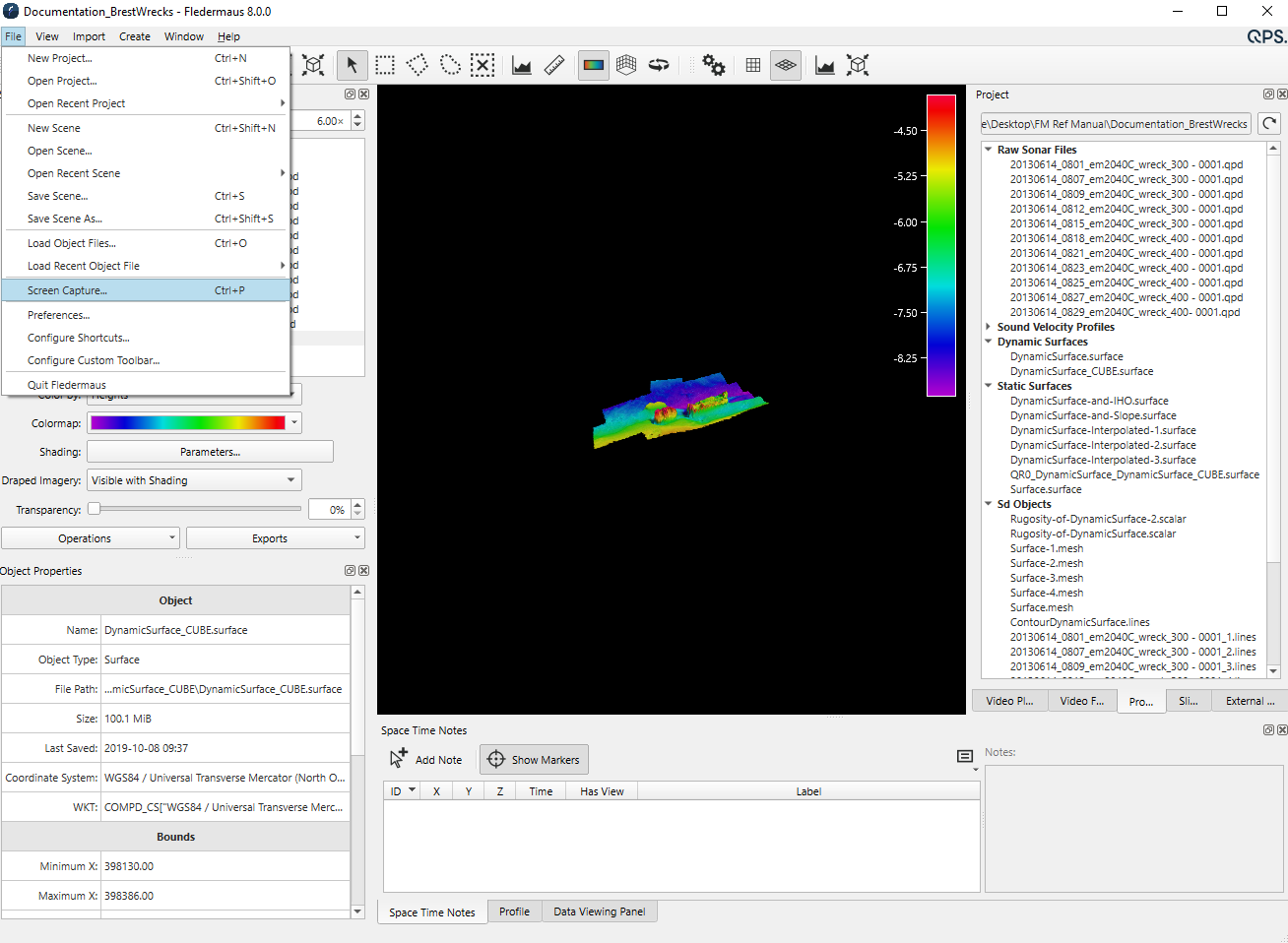

Screen Capture Dialog from File Menu

What it Does

This dialog is used to capture the current scene display as an image and export it to a supported image format.

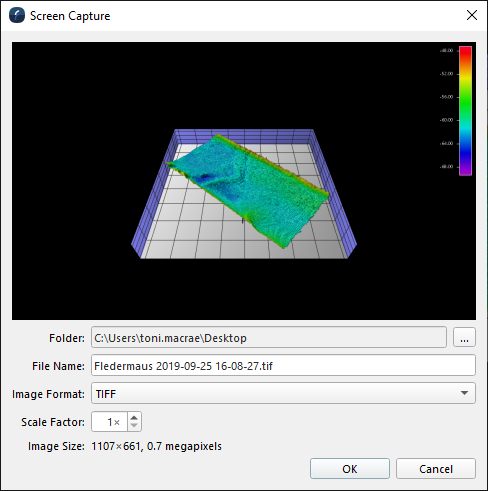

General Description

A screen shot of the current scene can be saved using this dialog. The export image location, name, format type and scale factor must be specified in this dialog.

Folder

The folder where the exported image will be saved. The default folder will point to /Graphics/Screen Captures in the current Fledermaus 8 project directory.

File Name

The filename of the exported image including its format extension. If the extension is removed it will be automatically applied based on the format selected in the 'Image Format' Combo Box.

Image Format

This Combo Box allows selection of the exported image format. Current supported export formats are JPG, PNG, TIFF, EPS (Encapsulated PostScript). The 'Copy to Clipboard' option will copy the image to the operating system clipboard and allow for pasting into an external application.

Scale Factor

Increasing the scale factor will increase the resolution of the resulting image. The resulting image size and megapixel values will be displayed next to the 'Image Size' label.

Return to the File menu.
