Fledermaus Attach Scalar Dialog

Attach Scalar Dialog

How To Start

• Scene Objects Dock → Right-Click on Object → Operations → Attach Scalar

• Scene Objects Dock → Operations → Attach Scalar

What It Does

Any standalone Scalar file can be attached to a Surface file using the Attach Scalar Operation. Once attached, the Scalar file can be used to shade the Surface and the Scalar data will be displayed during any geo-picking operation on the Surface.

General Description

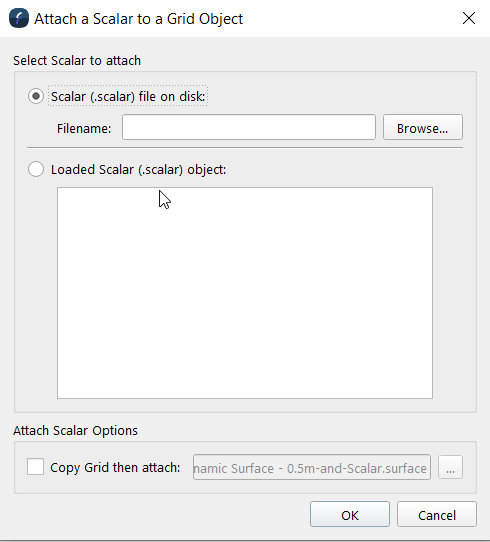

You can choose to attach a Scalar file that you have on disk or one that has already been loaded to your scene. Once attached you use the color by option in the Scene Objects Dock to color by the attached scalar.
