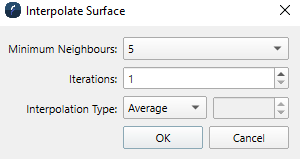

Fledermaus Interpolate Surface Dialog

How to Start

• Scene Objects Dock → Right-Click on Object → Operations → Interpolate

• Scene Objects Dock → Operations → Interpolate

What it Does

The surface interpolation tool allows for small holes in a surface or scalar to be filled in using values from one or more of the surrounding cells.

General Description

Four options are available for determining the interpolated values:

1. Average: Calculates the average value of all surrounding cells

2. Minimum Value: Uses the maximum of all surrounding cells

3. Maximum Value: Uses the minimum of all surrounding cells

4. Fixed Value: Uses the value supplied by the user

Once the interpolation method has been chosen, the next step is to determine what cells will be filled in by the interpolator. This is done by setting the minimum number of neighbours required for a cell to be filled in, ranging from 1 to 8. You can also set the number of times the algorithm runs over the entire grid by setting the Number of Iterations pull down menu.
