Fledermaus Resample Dialog

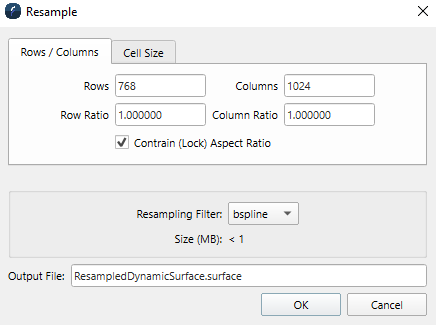

Resample Dialog - Rows/Columns Tab

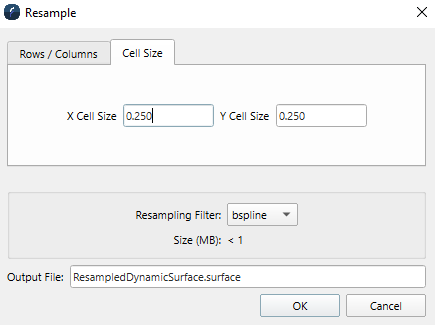

Resample Dialog - Cell Size Tab

How to Start

• Scene Objects Dock → Right-Click on Object → Operations → Resample
• Scene Objects Dock → Operations → Resample

Resample Dialog from Operations Menu

What it Does

The resample operation can change the number of rows or columns in a surface. This is useful to change the resolution of an SD, for example to make it smaller in size.

General Description

This operation does not affect the geo referencing bounds. By default, the ratio of rows to columns is not allowed to change, that is the aspect ratio is preserved. By un-checking the Constrain Ratio check box, the aspect ratio can be changed.

Instead of resampling based on the number of rows or columns, the surface can also be changed by specifying the X and Y cell sizes.
