Fledermaus Mesh Clipping Dialog

Adjust Mesh Clipping Range Dialog

How to Start

• Scene Objects Dock → Right-Click on Mesh → Operations → Clip Mesh
• Scene Objects Dock → Operations → Clip Mesh

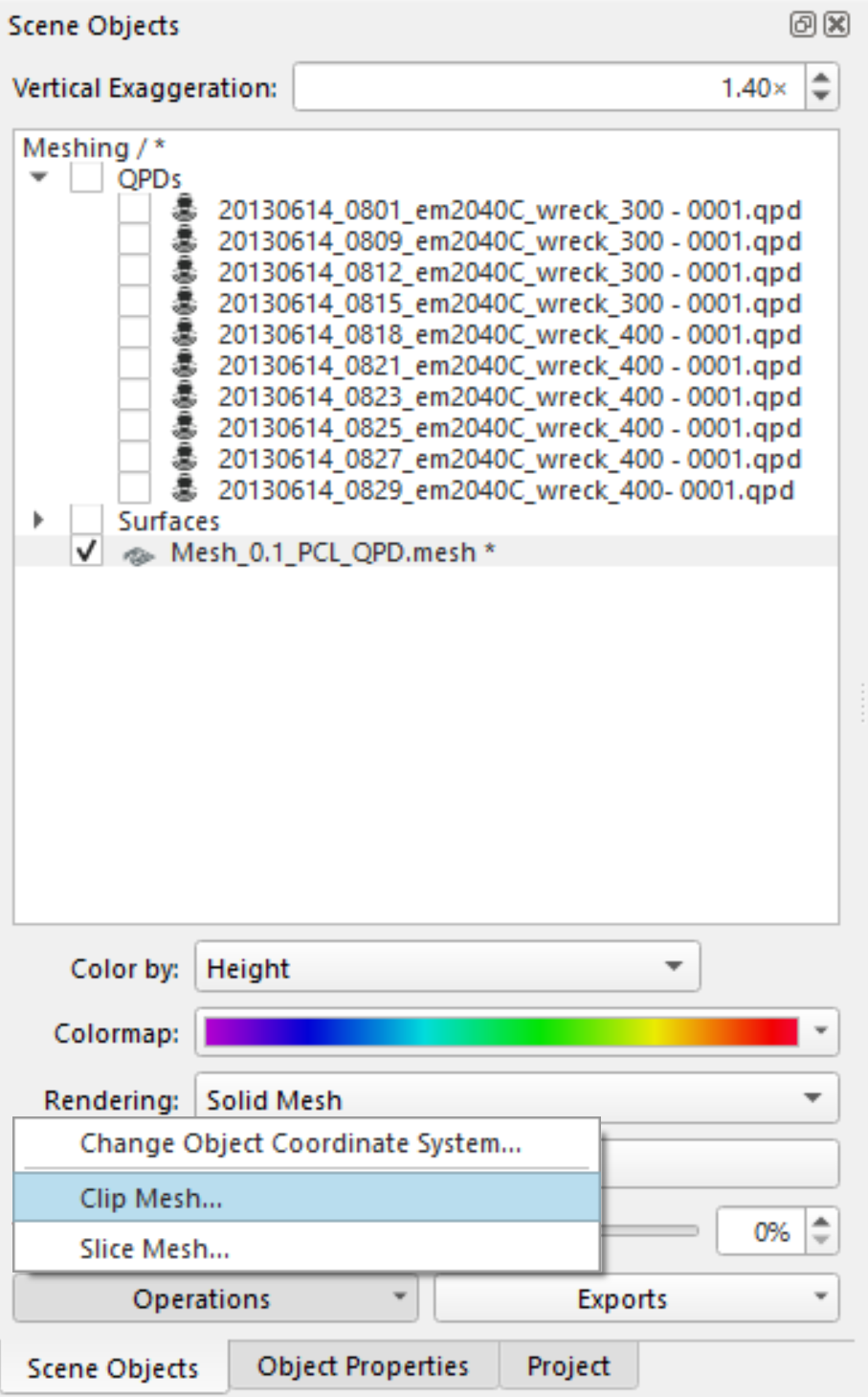

Clip Mesh Dialog from Operations Menu

What it Does

This dialog clips the selected mesh according to the sounding density along it.

General Description

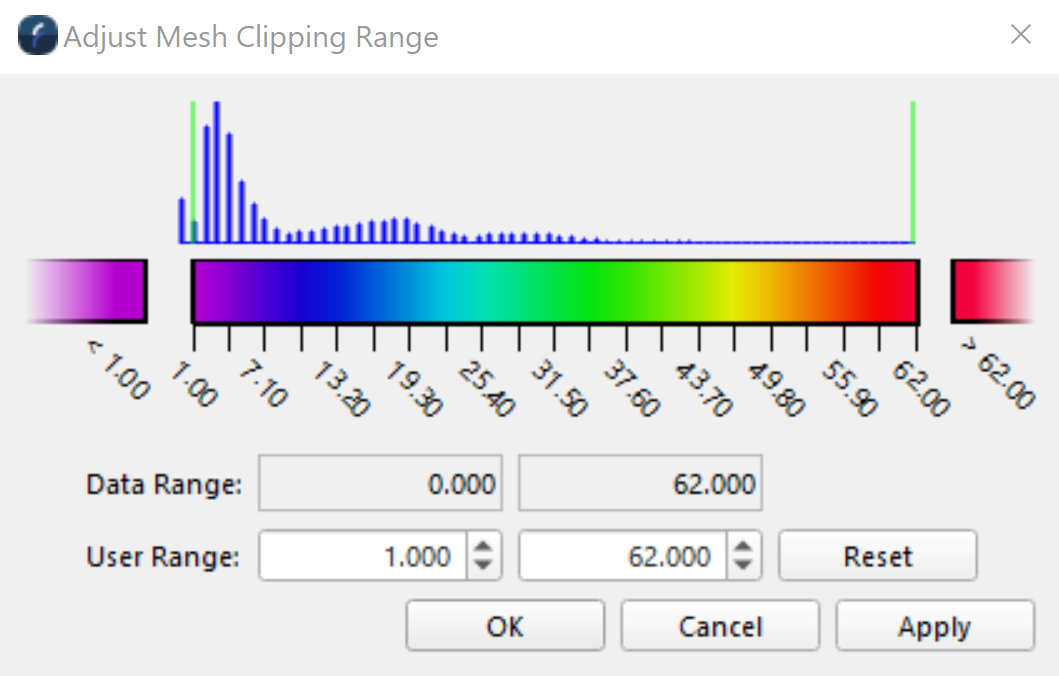

The dialog shows two ranges:

• The Data Range is the actual range of density values found in the selected files. This is not user editable.
• The User Range is a separate range that can override the data range when clipping the surface. By default the minimum is set to 1, so as to hide areas that have 1 or fewer soundings in them.

The range can be reset, as the data is not removed, but just hidden.
