Fledermaus Create Grid Lines Dialog

Create Grid Lines dialog

How to Start

• Main Menu Bar → Create → Create Grid Lines

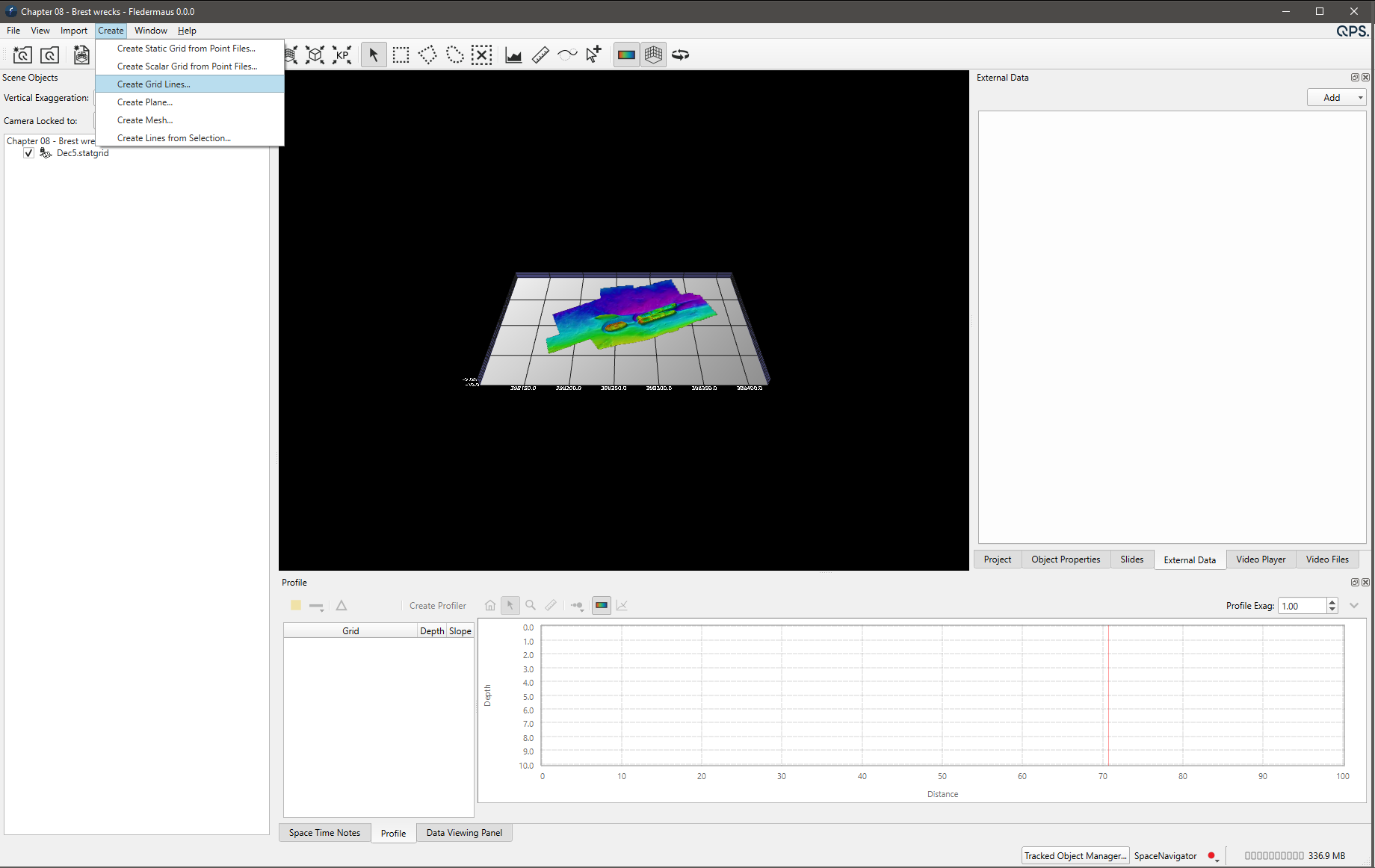

Create Grid Lines dialog from Create menu

What it Does

This dialog adds a simple grid of lines within a specified area and grid cell size.

General Description

Grid lines are simple to produce sets of lines which can be draped on surfaces or other objects primarily to use as a visual measurement grid. The grid cell size can be adjusted during creation. Grid lines are restricted by the bounds of the scene or a specific area of selection.

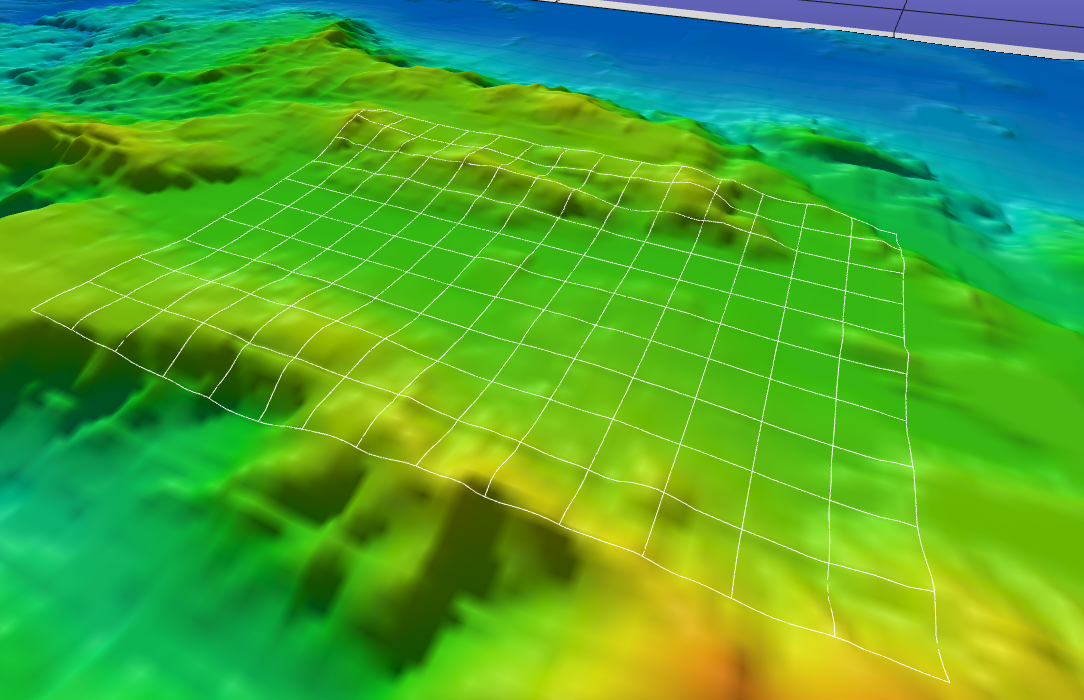

Grid lines created within a specific selection

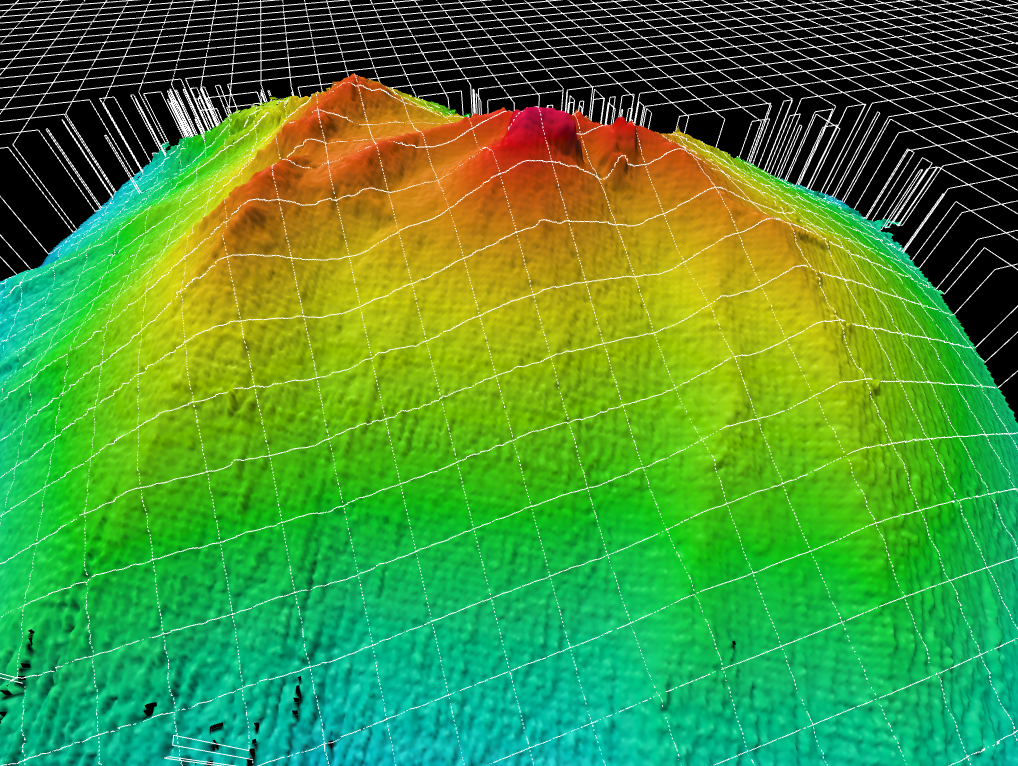

Grid lines created using the scene bounds
