Fledermaus Cell Information Dialog

Cell Information Dialog


How to Start

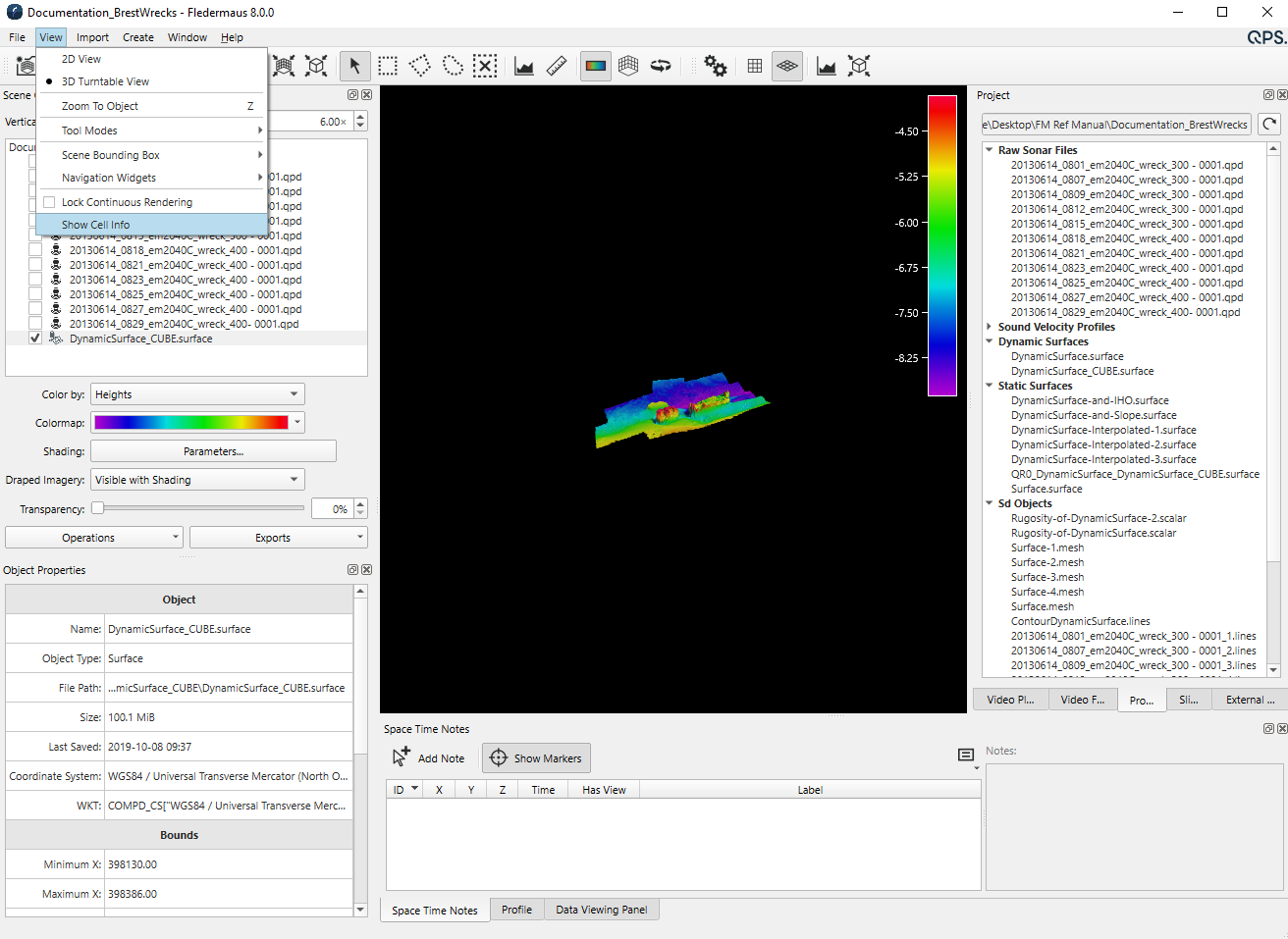

Show Cell Information Dialog from View Menu


What it Does

This dialog shows the attribute values for a cell of the selected dynamic surface that the cursor is hovering over.

General Description

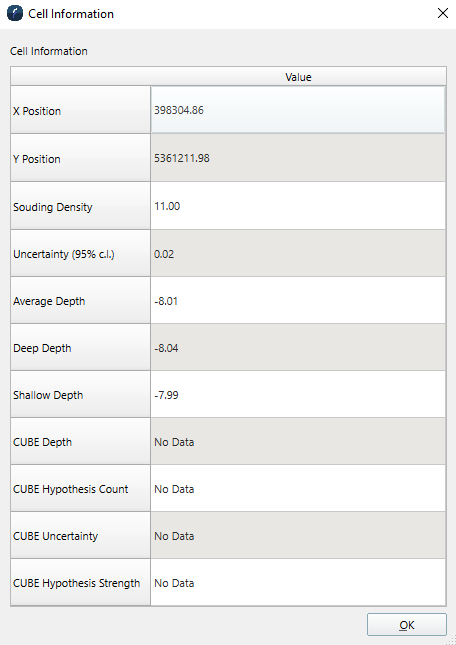

After selecting a dynamic surface from the Scene Objects window, Fledermaus will utilize this dialog for viewing Cell information. The Cell Information will not just show cell information for the selected Dynamic Surface from the the layers window, but rather from any dynamic surface that the cursor is hovering over. Fledermaus will use the x,y position of the cursor and match that up with a Cell from the dynamic surface that the cursor is hovering over. The Cell Information dialog will display X, Y position of the cursor, the Sounding Density, the Uncertainty, and the Average, Deep and Shallow Depth values. If CUBE is included with the Dynamic Surface, it will also display the CUBE depth value, the number of hypothesis, the Hypothesis Uncertainty, and the Hypothesis Strength values.
