Qimera Import Lines Dialog

How to Start

  • Import Lines option of the Layer menu in the Main Menu bar

What it Does

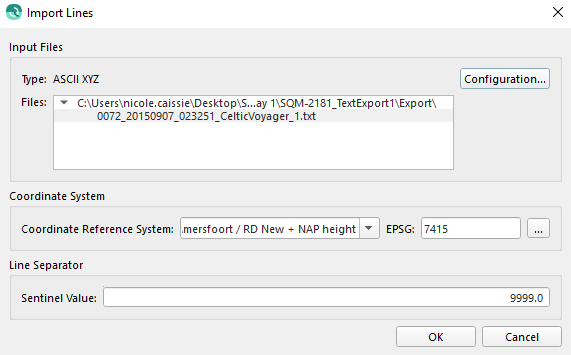

This dialog imports 2D or 3D polylines from ASCII files into your project as a visual layer.

General Description

After selecting a file, the Custom ASCII File Configuration dialog is automatically be shown. Later, pressing the Configuration... button shows the dialog again.

The Coordinate System options section is used to define the coordinate system of the input data. See the Coordinate System Selection dialog for more information.

If the data file contains multiple polylines, specify the line separator Sentinel Value which is used to separate those polylines.

The import will create a Fledermaus SD line object which will be added to the scene and appear under the SD Objects node of the Project Layers window.
