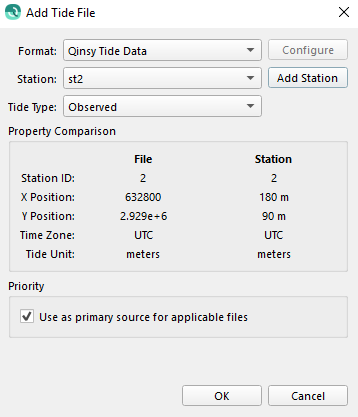

Qimera Add Tide File Dialog
How to Start
- Add Tide Files option of the Source Menu in the Main Menu bar
- Right-click on Tides or Stations group in the Project Sources Window and select Add Tide Files from the context menu
What it Does
This dialog imports tide data used for tide corrections and assigns the data to a station for management.
General Description
The dialog has several sections, these are explained below.
Format
After selecting a tide file the Format dropdown will be populated with any Tide Formats that match the file in addition to a Custom ASCII option. If the file format is not supported the default is Custom ASCII.
Configure
The Configure button is currently only enabled for Custom ASCII format. Clicking it opens the Custom ASCII File Configuration dialog. Be sure to map appropriate fields for both Time and Tide.
Station
Tide files must be assigned to a station. If there are existing stations the drop down will be blank and a station must be added. If files have already been added to the project the drop down will be populated with the existing stations, and the best match based on metadata in the file will be selected by default.
Add Station

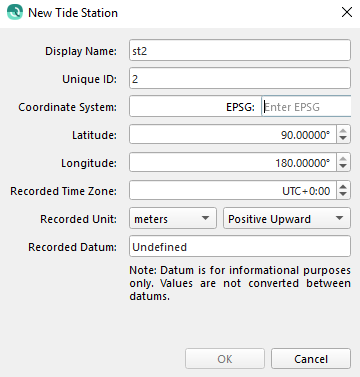

Click Add Station will open the New Tide Station Dialog. If there is any metadata in the tide file those fields will be automatically filled.
Tide Type
The tide type allows for tides of different priority to be imported for the same time period.
The three types in increasing priority are Predicted, Observed, and Verified. The highest priority tide type that is available at any given time will be applied to raw sonar files when processed with vertical referencing set to Tide mode (see Processing Settings Dialog for more information).

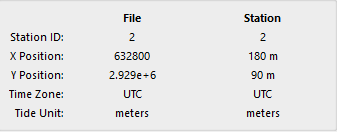

Property Comparison
The property comparison is for reviewing the station details to see if the agree with the file's metadata.
Use as primary source for applicable files
When checked this option will make the imported files take the highest priority in the Processing Settings Dialog and switch the Vertical Referencing Method to Tide.
