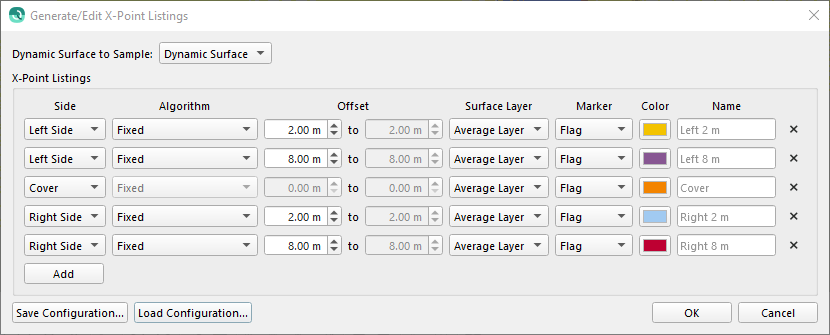

Qimera Generate/Edit X-Point Listings Dialog

How to Start

What it Does

X-Lines refers to cross sections in Qinsy and any other survey software packages.

X-point listings get updated when processing is done in Qimera and the surface is updated.

The X-Point Listings are created using picking.  The user will be able to designate Fixed, Shallow, Deep or Mean Seabed X-Point Listings.  When choosing anything other than fixed, the user will be able to designate a minimum and maximum across track window to use for the surface picks.

General Description

Dynamic Grid to Sample

This dropdown lets you select which grid to sample.


X-Point Listings

This table is organized as follows:

SideAlgorithmOffsetSurface LayerMarkerColorName

Left Side

Rigth Side

Cover

Fixed

Shallowest in Window

Deepest in Window

Average in Window

Min/Max

Average Layer

Shallow Layer

Deep Layer

Flag

Circle

Square

Crosshair

Cube

Diamond

Cylinder

Sphere

Point

Color Picker

The default name will be format like so:

<side>-<min-max>

Add/x

These button lets you add/remove X-Point Listings.


Save/Load Configuration

These button let you save/load predefined .xml configurations from disk. This enables reusing configurations.
