ISIS (JD Soundvelocity Depth and Fixnumber) - 15
Description
Driver to output sound velocity and depth data to Port 3 of the ISIS Acquisition System, or to output start and stop recording commands to Port 4 of the ISIS Acquisition System.
Driver Information
| Driver | ISIS | Interface Type | Driver Class Type | Counted/Terminated | |
|---|---|---|---|---|---|
UTC Driver  | No | Input / Output | Output | Executable | DrvOutISIS.exe |
| Related Systems |
| ||||
| Related Pages | |||||
Database Setup
Add an output system to the database and select the driver "ISIS (JD, Sound Velocity, Depth, Fix Number)" to output to Port 3 of the ISIS Acquisition System. Select the COM port that is connected to Port 3.
Add another output system and select the driver "ISIS (Start/Stop Logging)" to output to Port 4 of the ISIS Acquisition System. Select the correct COM port that is connected to Port 4.
Under the Geodetic Parameters you can set the Vertical Datum for Height results. If you select a MSL model, depths outputted by the "ISIS (JD, Sound Velocity, Depth, Fixnumber)" driver will match the depth/range of the sound velocity profile
Online

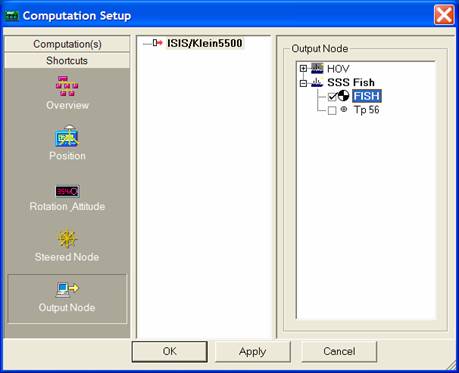

Select in the Computation Setup under Output Node the reference node of the fish object.
