TSHD Generic - Overview

Display Button

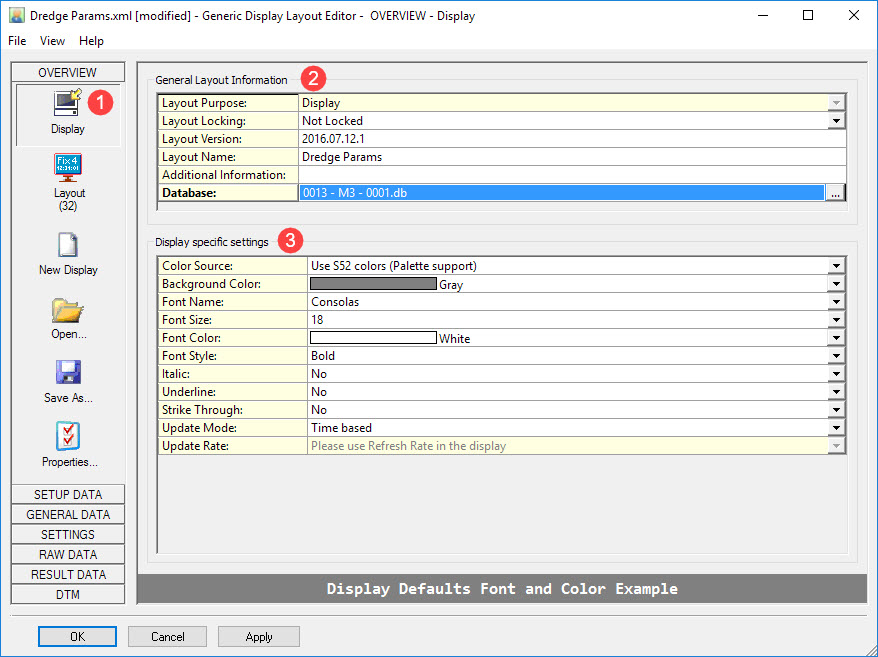

When creating a new Generic Display the Layout Editor defaults to Overview - Display.

Make selections and enter parameter values.

Layout Purpose cannot be changed when the Layout Editor is activated by creating a Generic Display from the Online Display Manager, i.e. Controller-Options-Displays.
Locking options are: Not Locked, All Settings Locked (no settings can be adjusted in the lower pane), Only Layout Settings, Only Data Settings.
When the editor is invoked online by the Generic Display, the loaded database is always the current template database.

Make selections and enter parameter values to control the general appearance of the display.

In choosing Color Source be aware:

• • Use S52 colors (Palette support). Only 16 different colors are available. These colors are influenced by the day/night palette of the Global Settings.

  • Use RGB colors. 140 colors are available (from file RGB.txt), but the colors will not be dimmed when the night palette is activated.

Update Mode options are:

• • Time Based - use the Refresh rate option in the display itself. Requires a valid Steered Node in the Controller.

  • Fix Based - updates the display at one of several fix intervals, i.e. every fix, every second fix, every fifth fix, etc. (see drop down list).  Fix mode is set in the Controller - Settings - Session Setup - Fixing.

  • System Based - Select the system used to trigger the display, i.e. whenever new data is detected from that system, the display is updated.

Return to top of page.

Layout Button

Changing the Layout via the Layout Editor

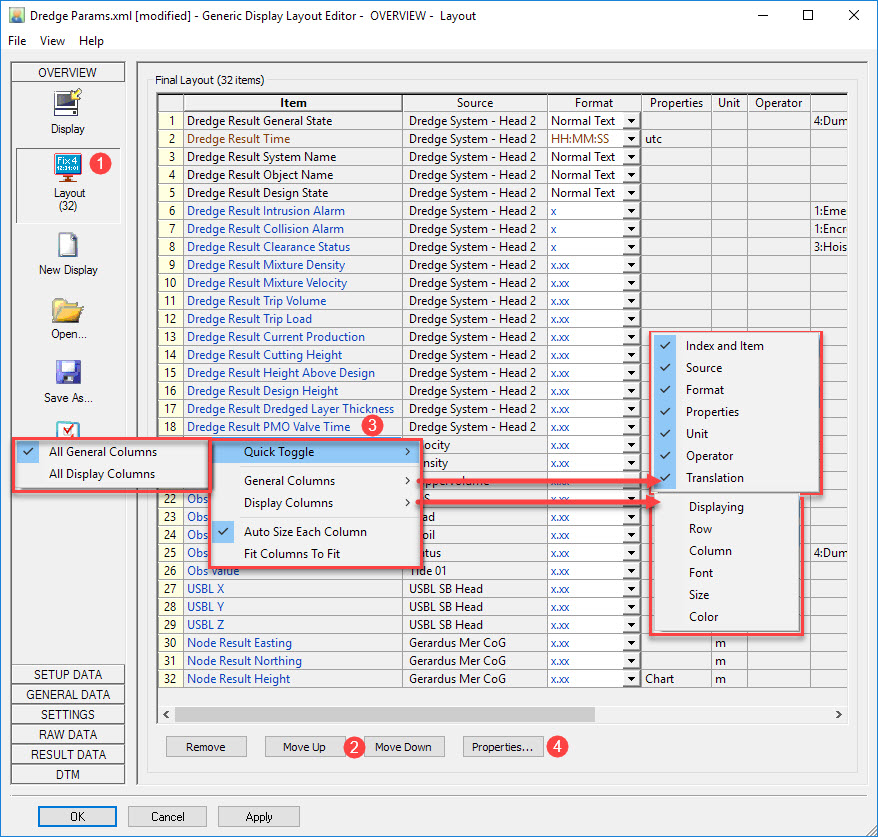

Click on Overview and then Layout. This page shows the layout of all items selected so far which in our example is 44.

Saving the layout writes an XML file to the \CurrentProject\Settings\Display folder.

One of the ways to reconfigure the layout is to highlight an item and use the and buttons to rearrange the layout order.

Another option is to use the mouse in the actual display to drag and drop individual or blocks of items.

By default only a limited number of columns (General columns) are shown in the layout overview.

Right clicking anywhere in the table pops up a menu with options, one of which is to add mode columns (Display columns).

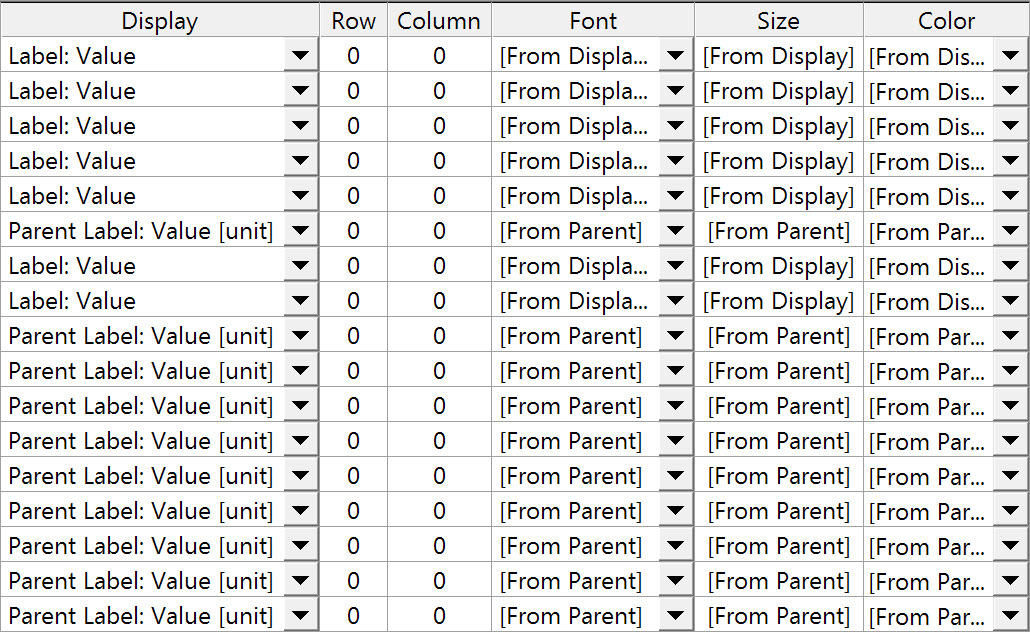

The following Display Columns are added:

The properties for any individual item are accessed by:

• • either double clicking on an item.

  • or Highlighting an item and pressing .

In each case the definition page for that item is opened.
Some properties are directly editable in the layout table.

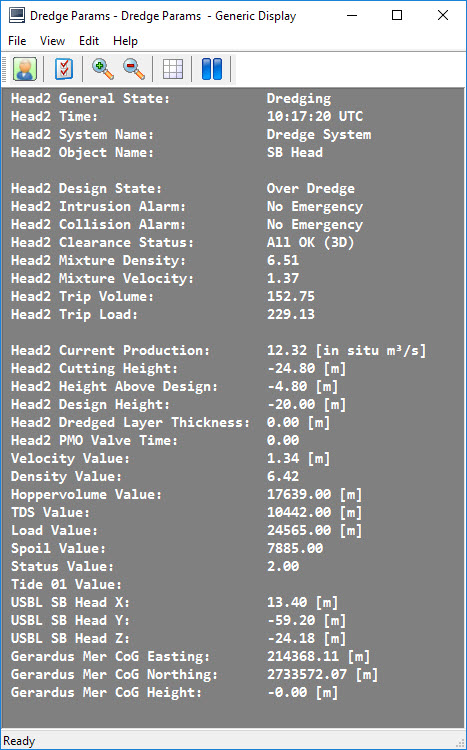

Save the layout. It looks like this:

Properties Button

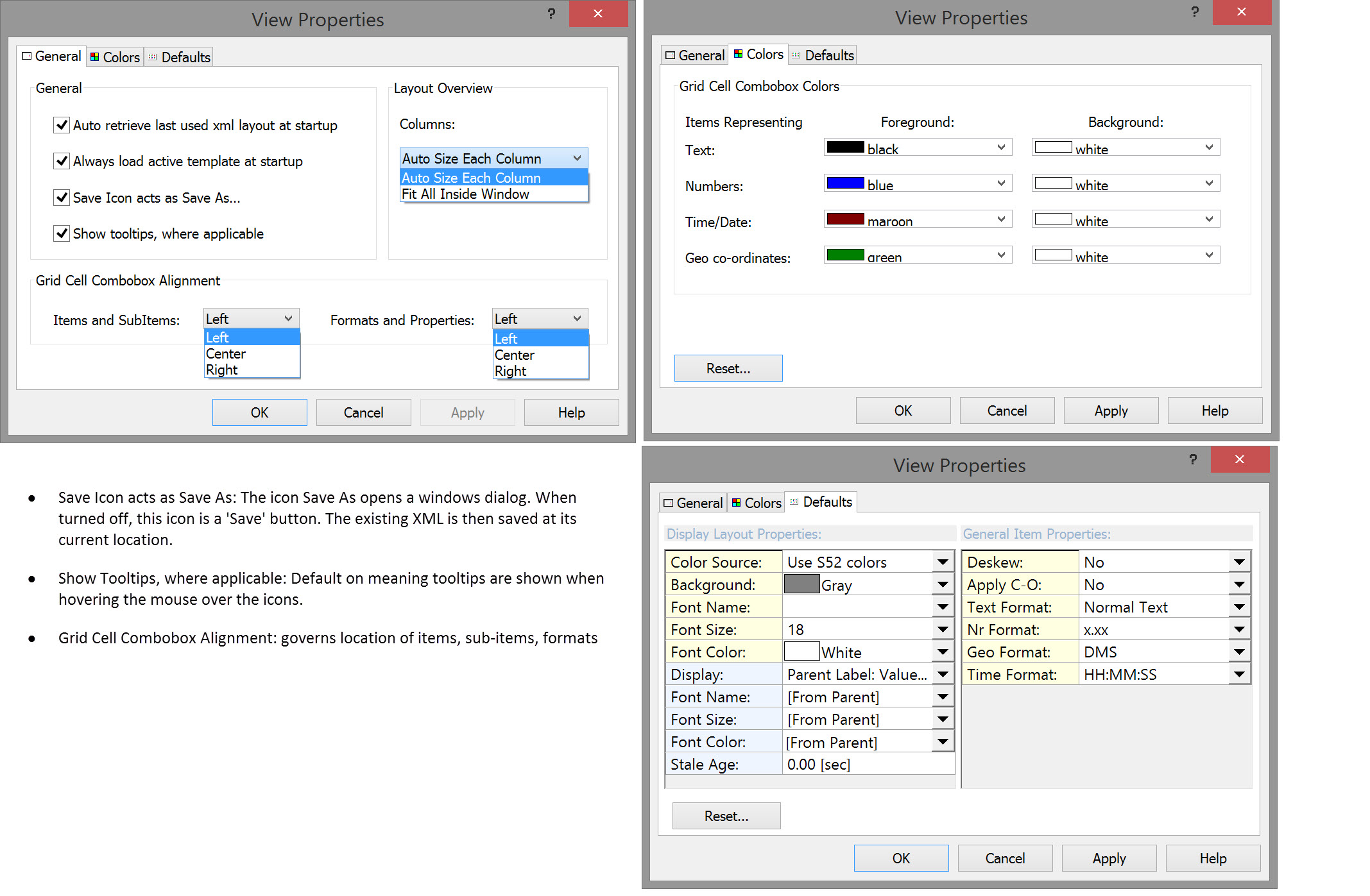

Click on the Properties  button. All parameters are fairly self explanatory. See notes in the image below.

Return to top of page.

Changing the Layout Changes in the Generic Display Dialog

Items can also be moved around within the main Generic Display dialog.

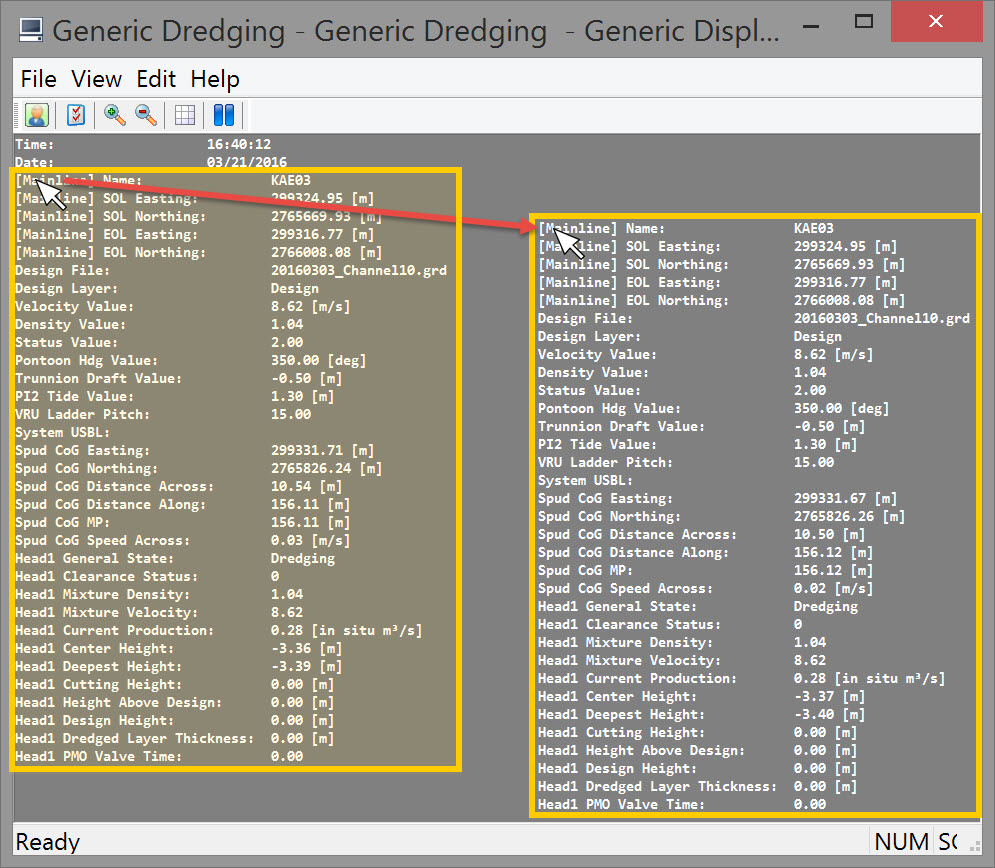

The next image illustrates what happens when you click on an item, in this case Mainline Name, and drag to another location; the whole block of text below this item is also picked up and moved.

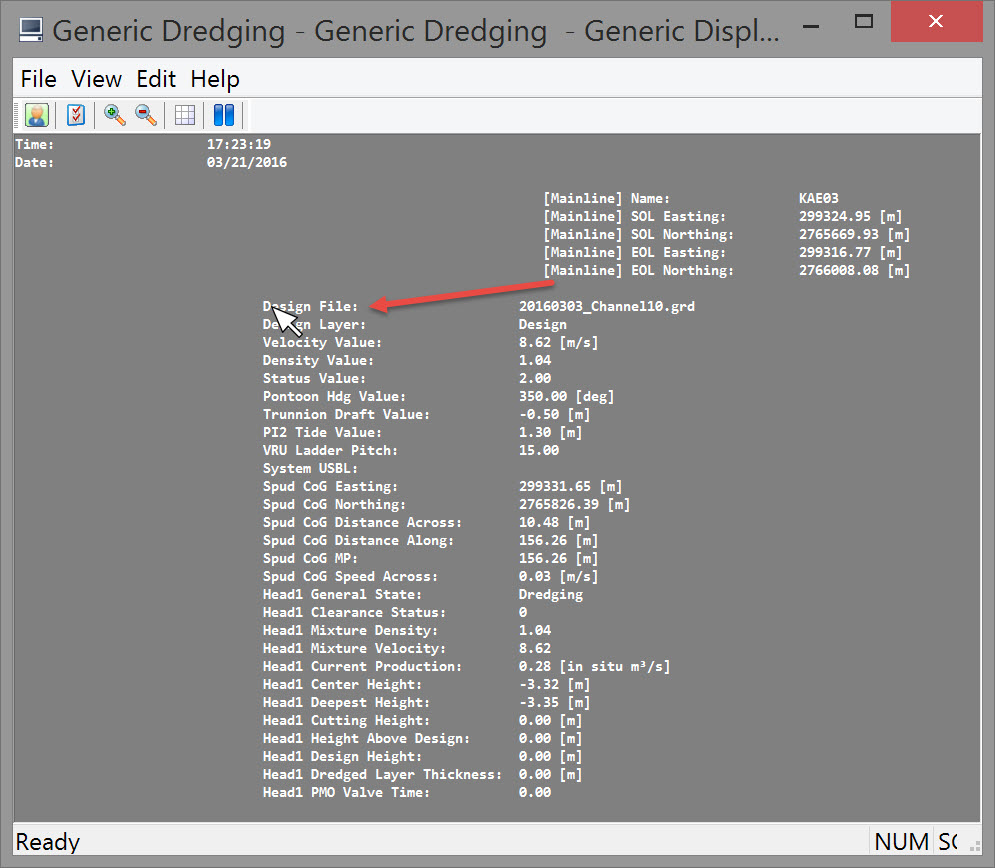

This means you have to separate blocks of text as illustrated in the next image where Design File was clicked and the block of text below was moved with it as the mouse was dragged to the left.

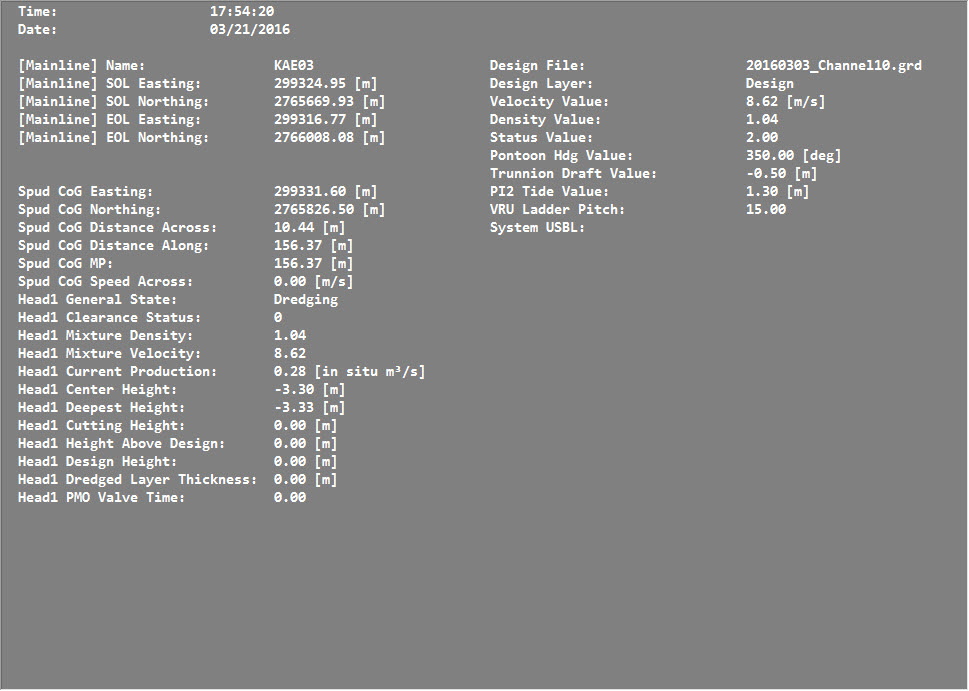

In this next image you see that there is a block under Mainline Name, another under Design File and another under Spud CoG Easting.
Of course the idea is to move items around so related data are clustered. For example Line data (name and coordinates) with Spud CoG coordinates, distance across, distance along SOG, COG etc.
In order to accomplish this you may have to separate individual items so each can be moved independently.
Once an item is isolated from other items it can be moved individually from then on, even when positioned right under another item.

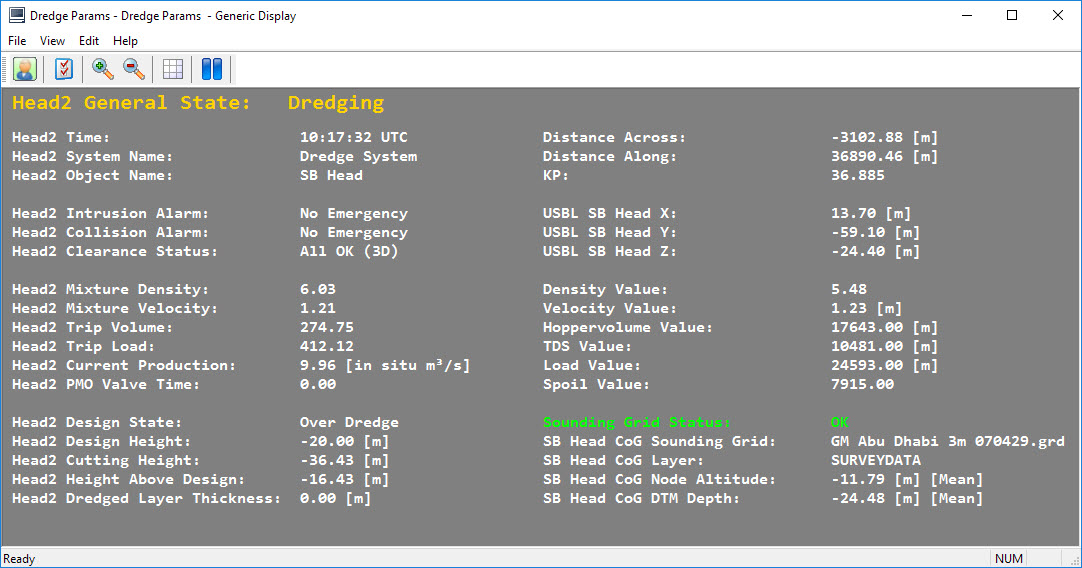

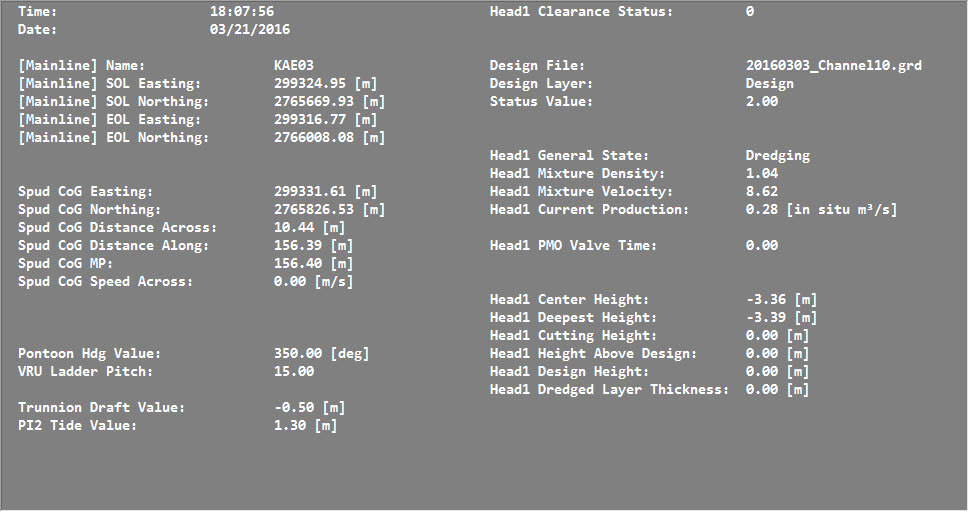

As an example the display could end up with the layout shown in the next image.

Next it might be useful to highlight certain items with larger text and/or different colors.

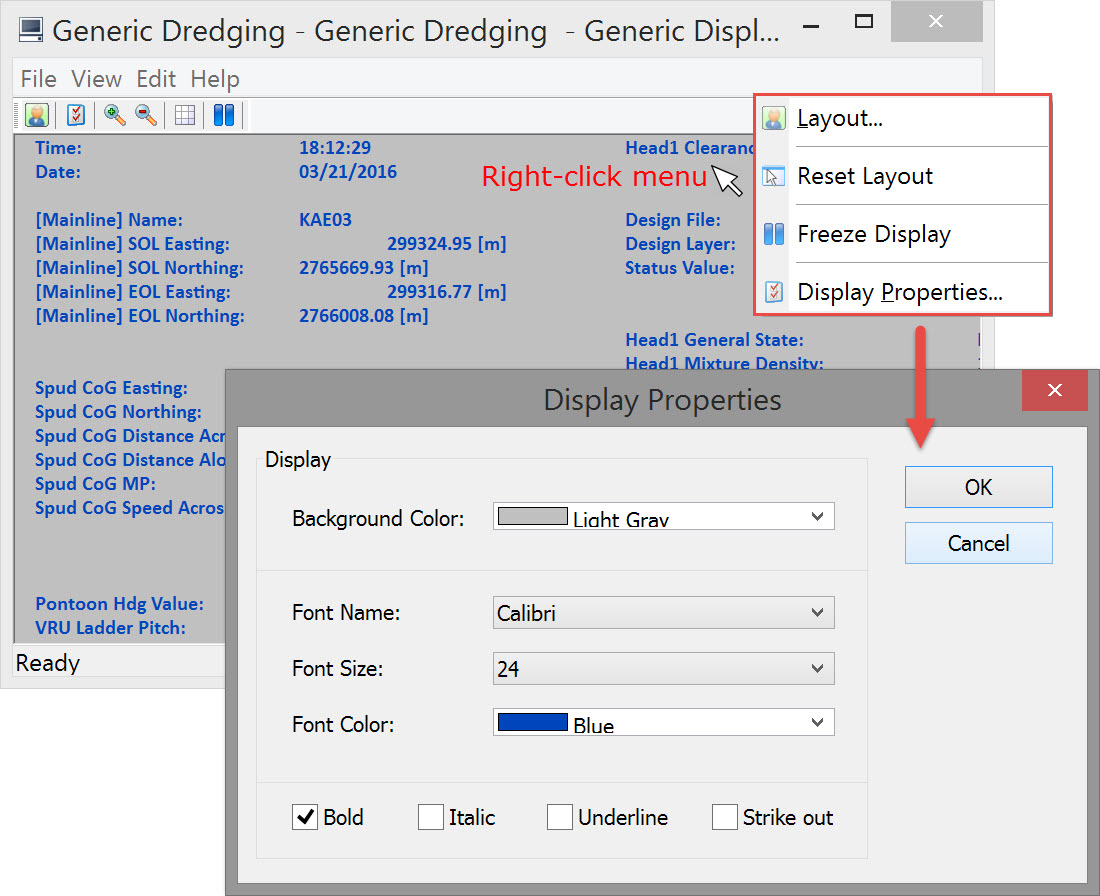

Using the right click menu select Display Properties.Modify one or more of the parameter values and notice that the changes apply to all items in the dialog.

In order to change individual items, either double-click on the item, or right click on the item and select Layout from the menu. Each method takes you to the appropriate page of the Layout Editor.

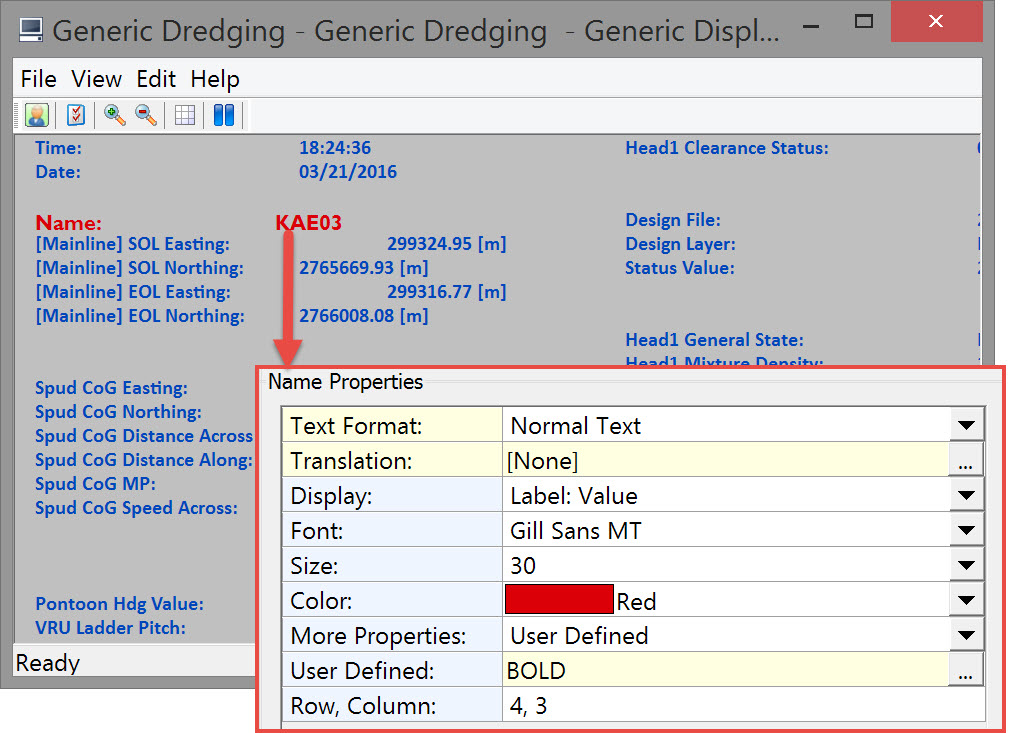

In the item Properties pane, modify any one or more properties.

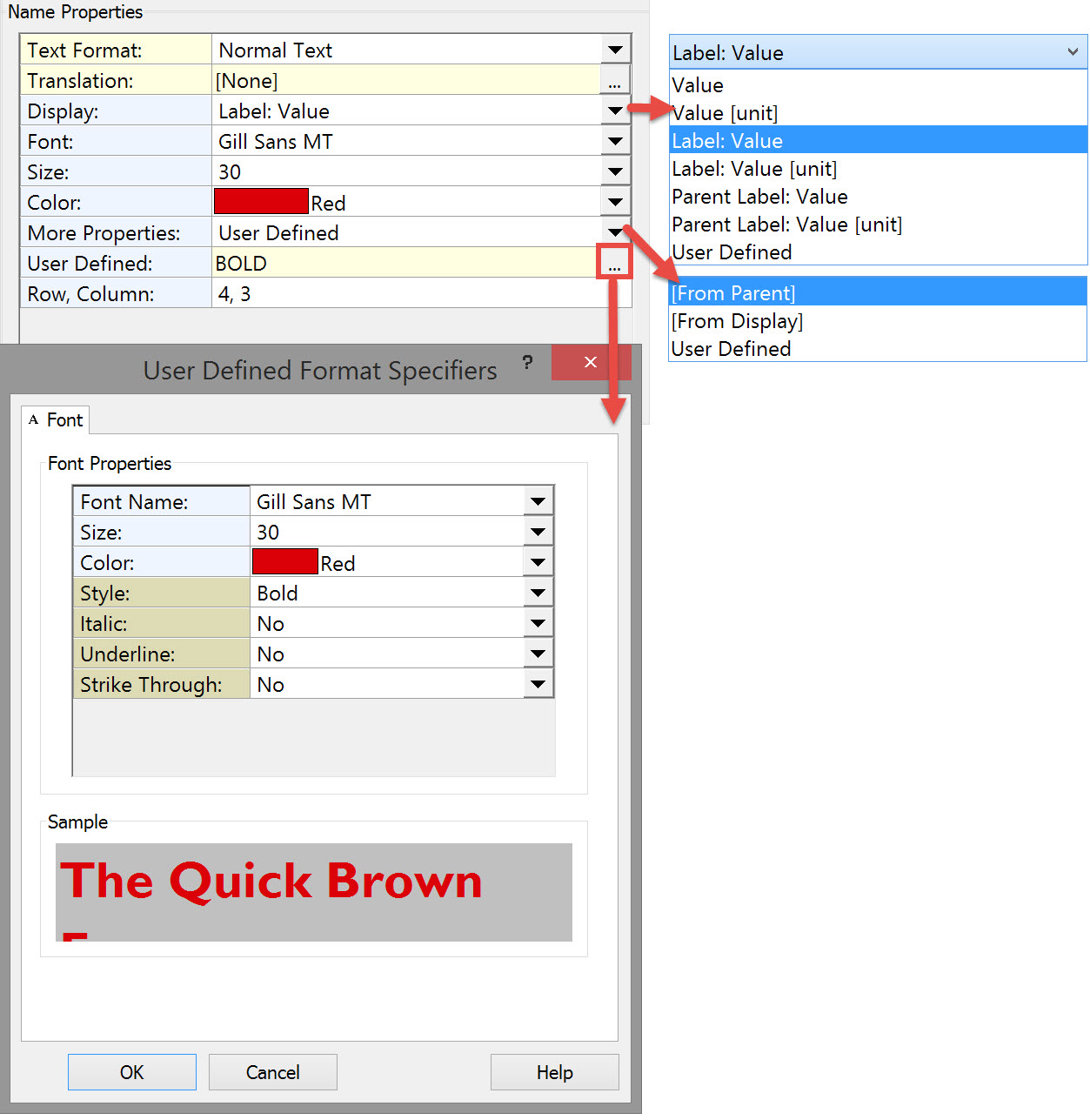

The Display  and More Properties parameters offer the following options:

If User Defined is selected under More Properties, you can click on the button which opens the User Defined Format Specifiers dialog where all font related items can be changed for the individual item.

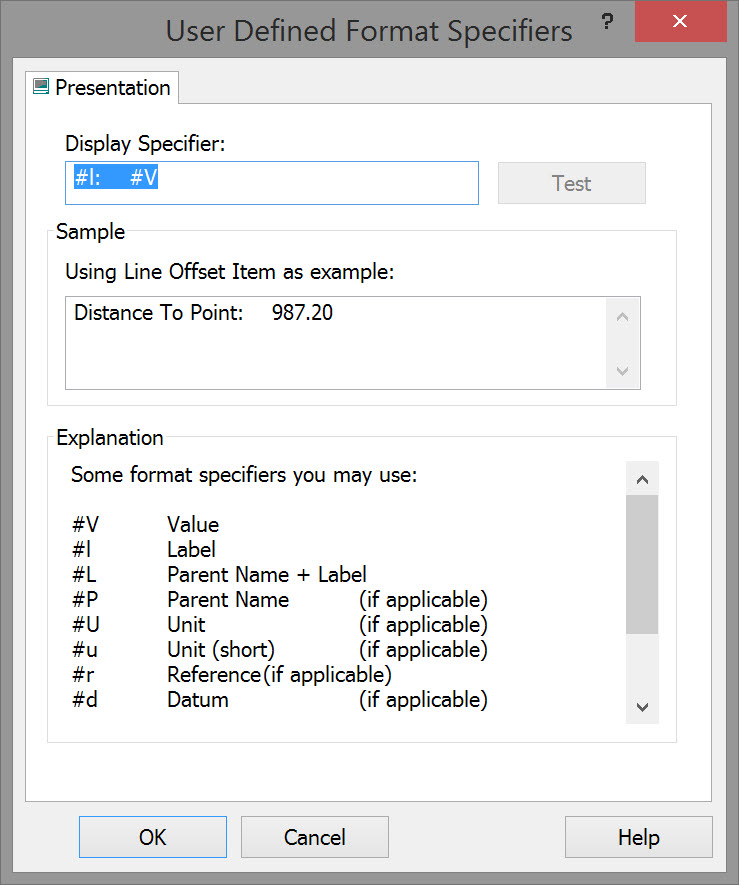

Selecting User Defined under Display opens the User Defined Format Specifiers dialog for labeling:

Here you can use predefined specifiers, your own text, spaces and tabs to define the label and position of the item value.

Return to: top of page

Return to: TSHD - Generic Display
