Magnetometer (Geometrics G880) - 31

Description

Driver to decode depth, altitude and/or magnetometer observations, such as field strength and field signal from a Geometrics G880 Magnetometer system.

Driver Information

Driver	Magnetometer (Geometrics G880)	Interface Type	Serial	Driver Class Type	Terminated
UTC Driver	No	Input / Output	Input	Executable	DrvGeometricsMagneto.exe
Related Systems	Magnetometer (Geometrics G880) - 23 Miscellaneous System Magnetometer (Geometrics G880) - 31 Underwater Sensor Magnetometer (Geometrics G880) - 35 Magnetometer
Related Pages	Magnetometer (Geometrics G882) - 31 Underwater Sensor Magnetometer (Geometrics G882) - 35 Magnetometer Magnetometer (Geometrics G882) - 23 Miscellaneous System

Qinsy Config

Database Setup

1. Magnetometer (Maggy)
   To decode the magnetometer field observation (nT) a Magnetometer system needs to be defined. The quality factor (e.g. shown in the Observation Physics Display) is the actual signal strength of the reading.


2. Miscellaneous system

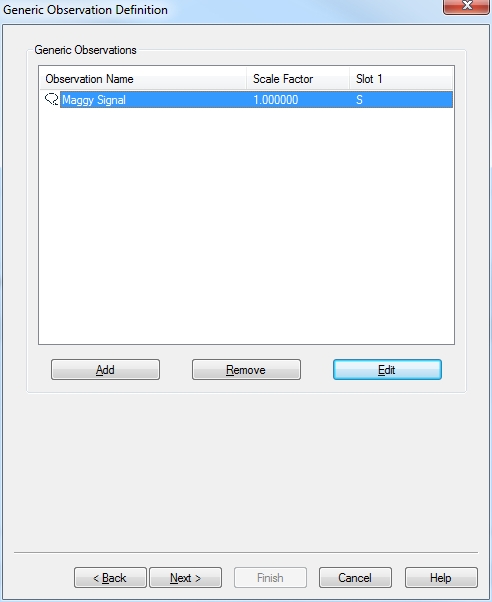

   To decode the magnetometer signal and field observation a Miscellaneous system needs to be defined. After this system has been added the user needs to define the magnetometer field and signal observation.
   To be able to decode the correct observation the user needs to enter slot information.
   For each observation the identifier that corresponds with the field for which you are defining the observation needs to be entered as the slot i.e. 'S' when defining the magnetometer signal observation.







3. Underwater Sensor

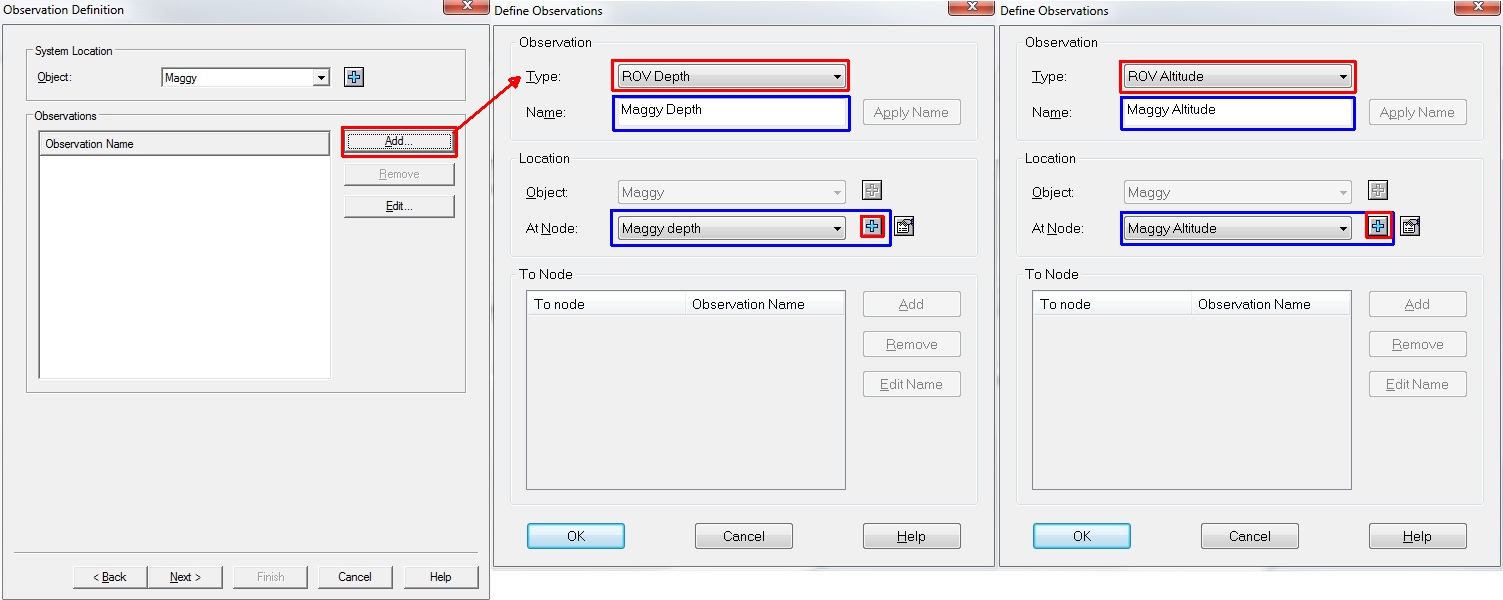

   To decode the fish depth and altitude observation an Underwater System needs to be defined. After the system has been added the user needs to define the fish depth and altitude observations.




Additional Info

Additional Information

Database Setup

Add manual echosounder

Please be aware that you need to add a Manual echosounder to your towed object to be able to process the track of the towed object.

Online / Replay

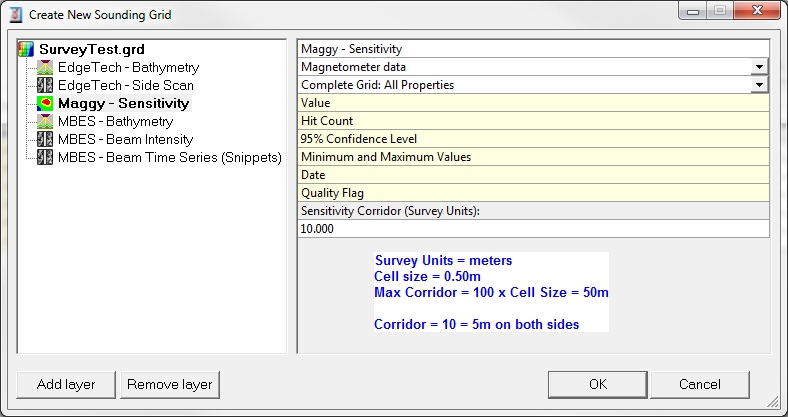

Storing magnetometer data to a sounding grid has the option to create a corridor perpendicular to the sailing direction. I.e. that the full path of the corridor is filled automatically with each single reading of the magnetometer.
To set this corridor width value, go to the layer properties in the Controller Session Setup, Storage, Sounding grid or use the Sounding Grid Utility, making sure that the layer type is 'Magnetometer data'.
The maximum width of the corridor is 100 times the minimum cell size of the sounding grid
