Digiquartz Depth Sensor (Depth) - 31
Description
Driver for decoding pressure from the Paroscientific Digiquartz sensor and forwarding it into Qinsy as an Underwater Sensor.
Driver Information
| Driver | Digiquartz Depth Sensor (Depth) | Interface Type | Serial/UDP | Driver Class Type | X |
|---|---|---|---|---|---|
UTC Driver  | No | Input / Output | Input | Executable | X |
| Related Systems |
| ||||
| Related Pages | |||||
Database Setup

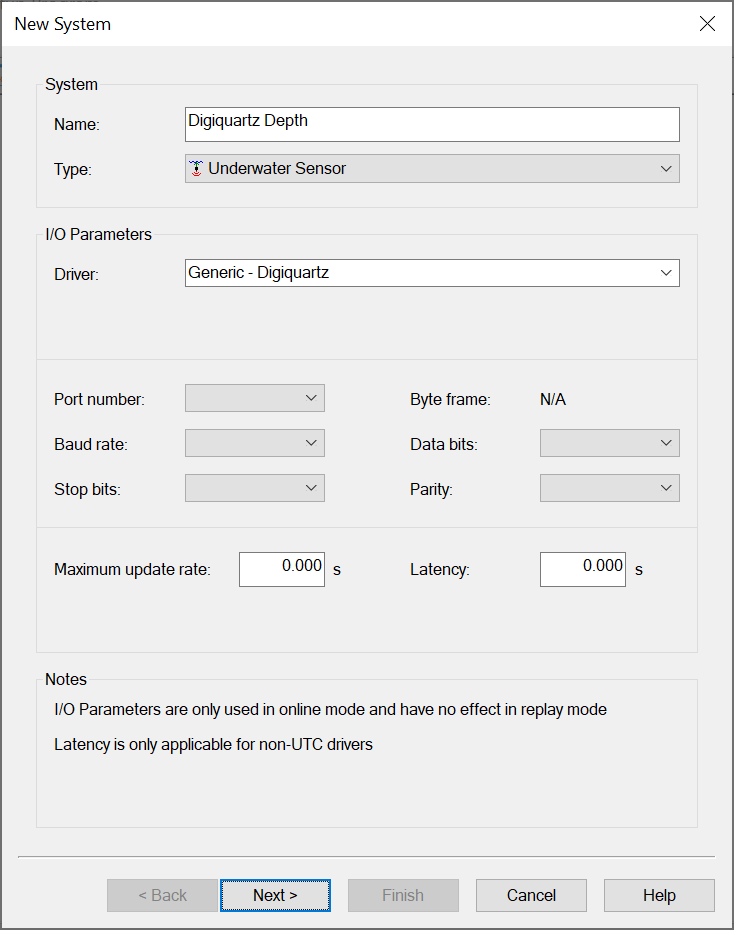

To decode pressure data of the Digiquartz sensor, add a system of type "Underwater Sensor" and select driver "Generic - Digiquartz".
Select the serial port on which the unit can be reached. For the other serial settings they need to be identical to the configuration of the Digiquartz sensor.

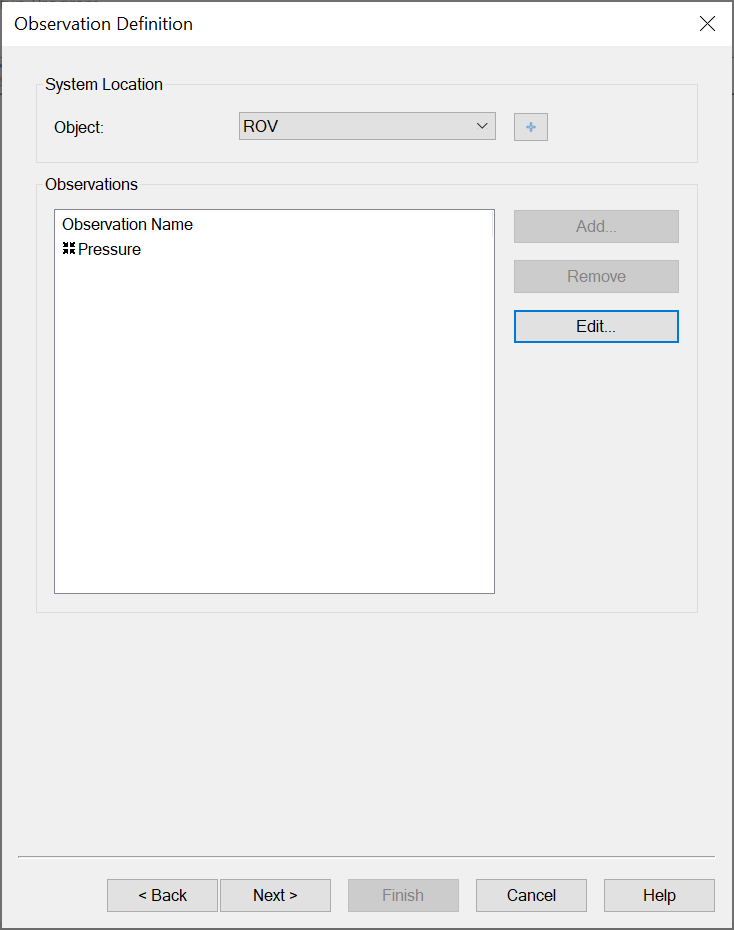

Select the Object on which the Digiquartz sensor is mounted. Click on the observation and click the 'Edit' button to set the location.
In the Edit Observation dialog, select for "At Node" an existing node for the Digiquartz sensor, or add a new node.

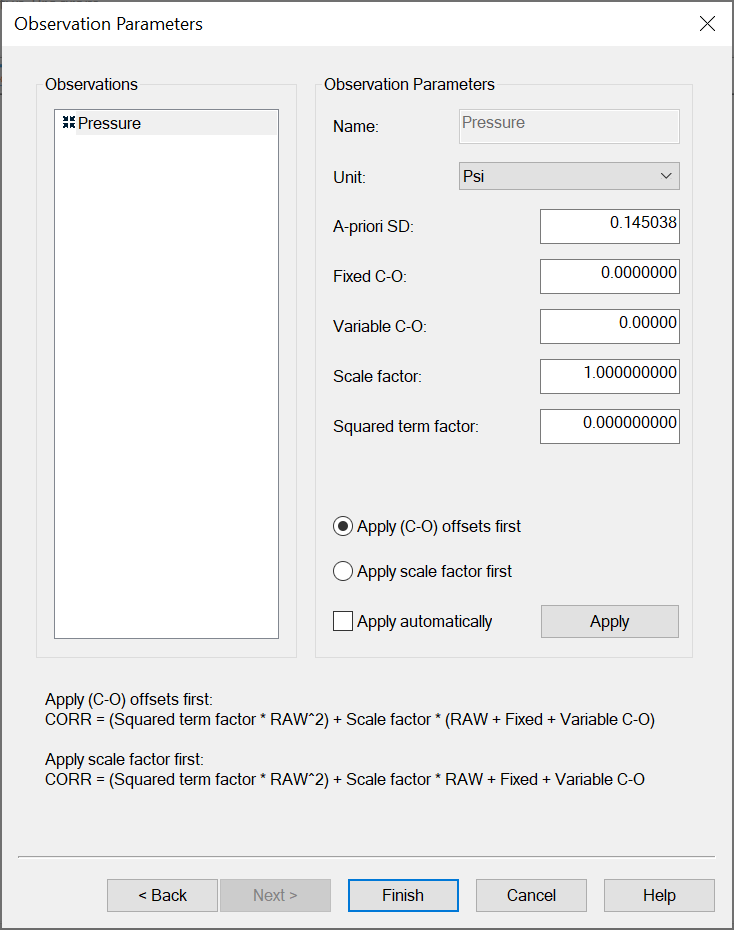

Change the unit of the observation so it is identical to the configuration of the Digiquartz sensor. Default would be "psi".
