Digiquartz Depth Sensor (Depth) - 01

Description

Driver for decoding pressure from the Paroscientific Digiquartz sensor and forwarding it into Qinsy as a single beam echosounder depth.

Driver Information

Driver	Digiquartz Depth Sensor (Depth)	Interface Type	Serial / UDP	Driver Class Type	Terminated
UTC Driver	No	Input / Output	Input	Executable	DrvDigiquartzDepth.exe DrvInputSerial.exe DrvInputUDP.exe
Related Systems	Digiquartz Depth Sensor (Depth) - 01 Digiquartz Depth Sensor (Depth) - 31 Underwater Sensor Digiquartz Depth Sensor (UDP) (Depth) - 31 Underwater Sensor
Related Pages

Qinsy Config

Database Setup

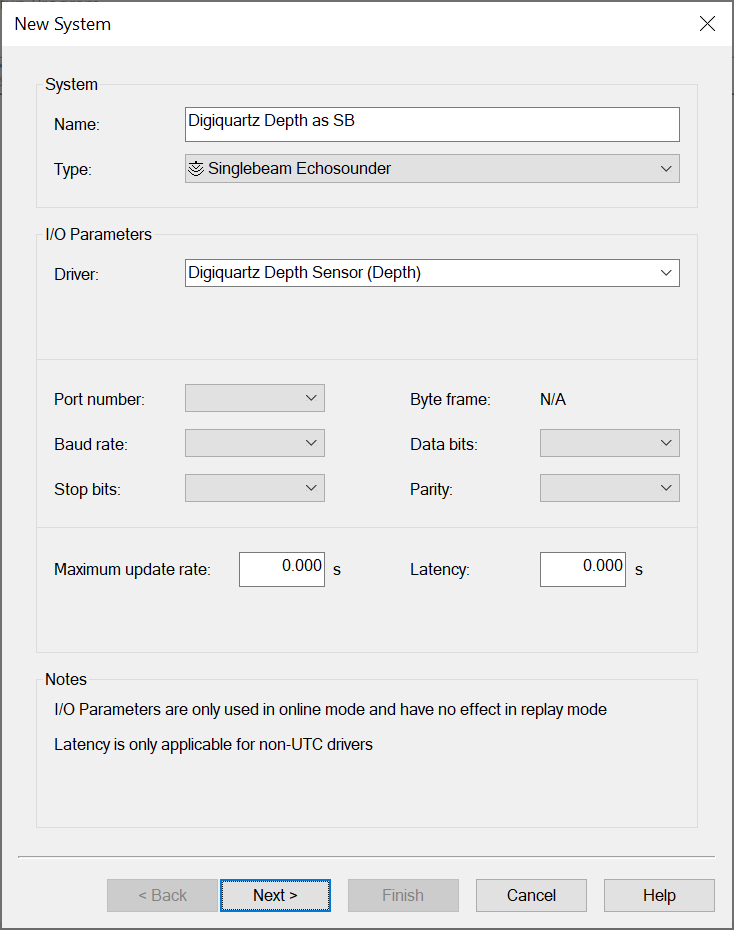

To decode pressure as Singlebeam Echosounder depth add a system of type "Singlebeam Echosounder" and select driver "Digiquartz Depth Sensor (Depth)".
Select the serial port on which the unit can be reached. For the other serial settings they need to be identical to the configuration of the Digiquartz sensor.

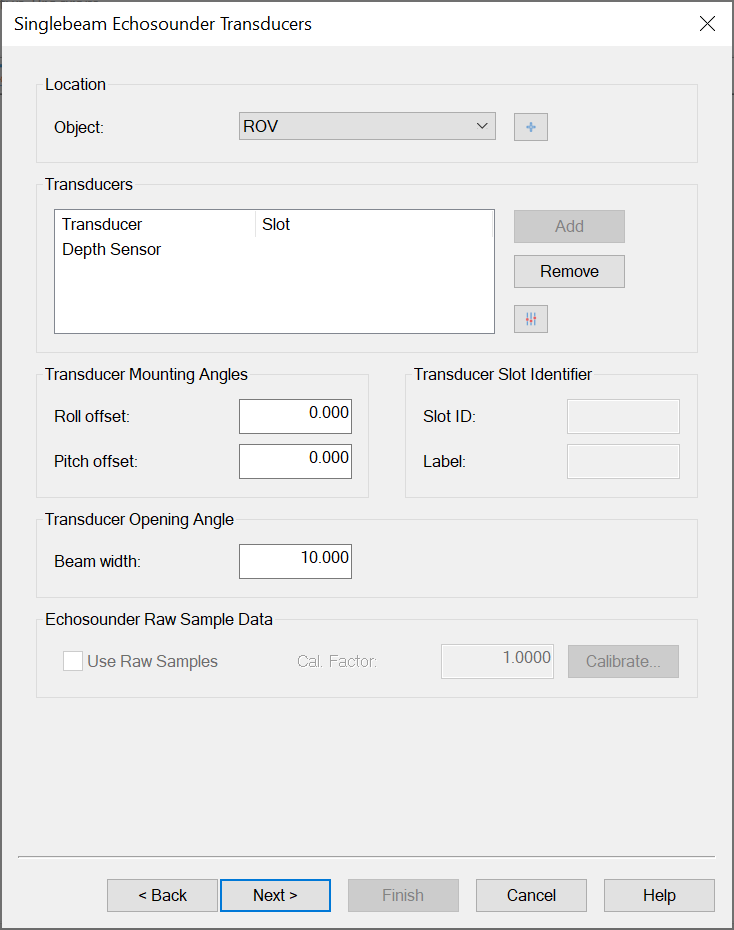

Select the Object on which the Digiquartz sensor is mounted. Click the 'Add' button to add a Transducer.
In the Select Nodes dialog, either select an existing node for the Digiquartz sensor, or add a new node.
Leave all other settings at their default values (none of these are specific to this driver/system).
