Network - IHC Dredging (Binary) - 31

Description

This driver is used to exchange information with the IHC IMS dredging computer as found on board Hopper/Cutter dredgers (TSHD/CSD).

The following input systems are supported:

• USBL System
• Pitch Roll & Heave Sensor
• Gyro Compass
• Tide Gauge
• Miscellaneous System
• Underwater Sensor
• Dredging Sensor
• Rotation Angle Sensor

The output system is capable of outputting a large number of parameters as specified in the message Format Description found below.

Driver Information

Driver	Network - IHC Dredging Positions (Binary)	Interface Type	Network UDP	Driver Class Type	Terminated
UTC Driver	No	Input / Output	Input and Output	Executable	DrvOutIhcUdp.exe DREDGING_BINARY
Related Systems	Network - IHC Dredging (Binary) - 02 USBL System Network - IHC Dredging (Binary) - 03 Pitch Roll Heave Sensor Network - IHC Dredging (Binary) - 05 Gyro Compass Network - IHC Dredging (Binary) - 22 Tide Gauge Network - IHC Dredging (Binary) - 23 Miscellaneous System Network - IHC Dredging (Binary) - 31 Underwater Sensor Network - IHC Dredging (Binary) - 36 Dredging Sensor Network - IHC Dredging (Binary) - 40 Rotation Angle Sensor Network - IHC Dredging Positions (Binary) - 15 Output System
Related Pages

Database Setup

Cutter Suction Dredger

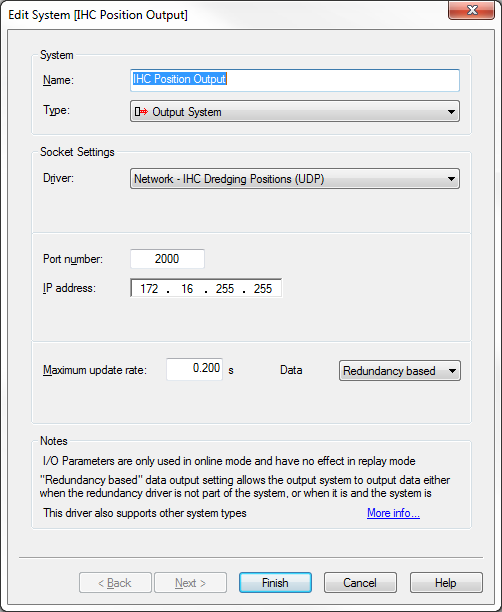

Set the IP broadcast range of the IHC dredging network and set up the correct port number. The default IP broadcast range is 172.16.255.255 and the default port is 2000.

The IHC computer which is Master will receive Position data from Qinsy and send out a response. The utility ComSwitch is installed on IHC computers and will perform the following functions: position data received from a Qinsy computer is transferred to the Master computer, the response from the Master computer is converted to a network broadcast so that multiple Qinsy computers can use the data.

It is possible that multiple Qinsy computers send Position data however the first that is received by IHC will be used and other computers are ignored. When the Position data is not received for 0.5 seconds then IHC will switch to the next available Qinsy computer. The time-out value of 0.5 seconds is a setting in ComSwitch.

The following systems are usually added to a CSD setup:

It is also possible to send triangles to the IHC computer. This is a different driver which uses TCP/IP for communication. The description can be found at: Network - IHC Dredging Triangles (TCP) - 15

Trailer Suction Hopper Dredger

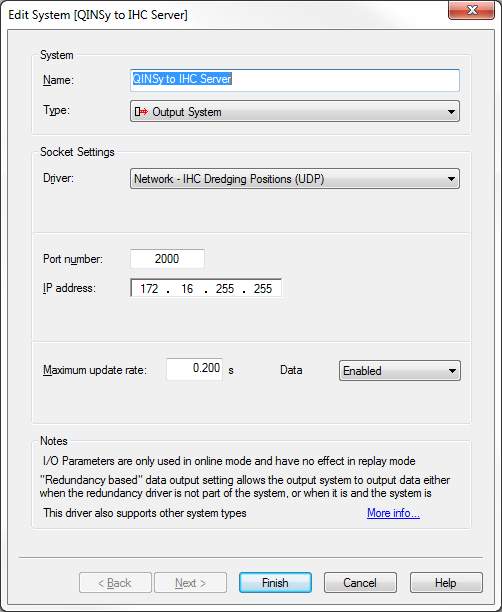

Set the IP broadcast range of the IHC dredging network and set up the correct port number. The default IP broadcast range is 172.16.255.255 and the default port is 2000.

The IHC computer which is Master will receive Position data from Qinsy and send out a response. The utility ComSwitch is installed on IHC computers and will perform the following functions: position data received from a Qinsy computer is transferred to the Master computer, the response from the Master computer is converted to a network broadcast so that multiple Qinsy computers can use the data.

It is possible that multiple Qinsy computers send Position data however the first that is received by IHC will be used and other computers are ignored. When the Position data is not received for 0.5 seconds then IHC will switch to the next available Qinsy computer. The time-out value of 0.5 seconds is a setting in ComSwitch.

The following systems are usually added to a TSHD setup:
