Network - IHC Dredging (Binary) - 05

Description

This driver is used to exchange information with the IHC IMS dredging computer as found on board Hopper/Cutter dredgers (TSHD/CSD).

The following input systems are supported:

  • USBL System
  • Pitch Roll & Heave Sensor
  • Gyro Compass
  • Tide Gauge
  • Miscellaneous System
  • Underwater Sensor
  • Dredging Sensor
  • Rotation Angle Sensor

The output system is capable of outputting a large number of parameters as specified in the message Format Description found below.


Driver Information

DriverNetwork - IHC Dredging Positions (Binary)Interface TypeNetwork UDPDriver Class TypeTerminated
UTC Driver (question)NoInput / OutputInput and OutputExecutableDrvOutIhcUdp.exe DREDGING_BINARY
Related Systems
Related Pages



Database Setup

Cutter Suction Dredger

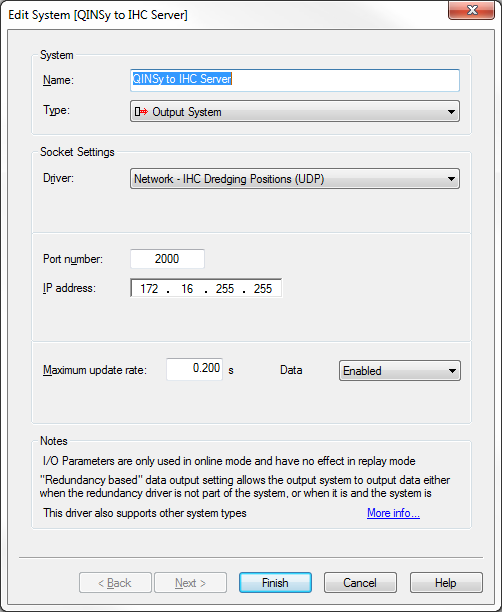

Set the IP broadcast range of the IHC dredging network and set up the correct port number. The default IP broadcast range is 172.16.255.255 and the default port is 2000.

The IHC computer which is Master will receive Position data from Qinsy and send out a response. The utility ComSwitch is installed on IHC computers and will perform the following functions: position data received from a Qinsy computer is transferred to the Master computer, the response from the Master computer is converted to a network broadcast so that multiple Qinsy computers can use the data.

It is possible that multiple Qinsy computers send Position data however the first that is received by IHC will be used and other computers are ignored. When the Position data is not received for 0.5 seconds then IHC will switch to the next available Qinsy computer. The time-out value of 0.5 seconds is a setting in ComSwitch.

The following systems are usually added to a CSD setup:

SystemDescriptionObservationsSlotFactorReference
Output SystemPosition Output



Underwater sensorDraft TrunnionTrunnionTrunnion-1
Dredging SensorIHC sensors 1Density, VelocityDensity,Velocity

USBL SystemCutpoint
CutPointPositive Upward
USBL SystemSpud
Spud

Pitch Roll Heave SensorPontoon
VruPontoon

Pitch Roll Heave SensorVRU Ladder
VruLadder

Underwater SensorROV depthROV depthCutDepth-1Chart Datum
Miscellaneous SystemSpud Carrier
Spud

It is also possible to send triangles to the IHC computer. This is a different driver which uses TCP/IP for communication. The description can be found at: Network - IHC Dredging Triangles (TCP) - 15

Trailer Suction Hopper Dredger

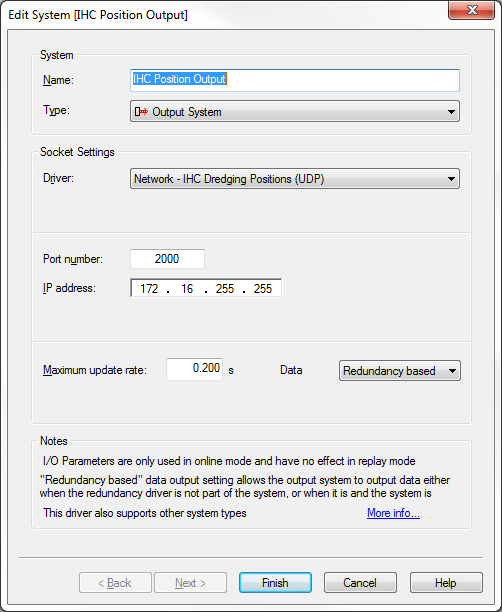

Set the IP broadcast range of the IHC dredging network and set up the correct port number. The default IP broadcast range is 172.16.255.255 and the default port is 2000.

The IHC computer which is Master will receive Position data from Qinsy and send out a response. The utility ComSwitch is installed on IHC computers and will perform the following functions: position data received from a Qinsy computer is transferred to the Master computer, the response from the Master computer is converted to a network broadcast so that multiple Qinsy computers can use the data.

It is possible that multiple Qinsy computers send Position data however the first that is received by IHC will be used and other computers are ignored. When the Position data is not received for 0.5 seconds then IHC will switch to the next available Qinsy computer. The time-out value of 0.5 seconds is a setting in ComSwitch.

The following systems are usually added to a TSHD setup:

SystemDescriptionObservationsSlotFactorReference
Output SystemPosition Output



Underwater sensorDraftDraft Aft , Draft ForeDraftAft , DraftFore1
Dredging SensorDredge StatusStatusStatus

USBL SystemPort side
UsblPortPositive Upward
USBL SystemStarboard side
UsblStbdPositive Upward
Pitch Roll Heave SensorIHC VRU
VruHopper

Underwater SensorDepth SBROV depthDepthStbd-1Chart Datum
Underwater SensorDepth PSROV depthDepthPort-1Chart Datum
