Generic - Applanix PASHR (Network) - 05

Description

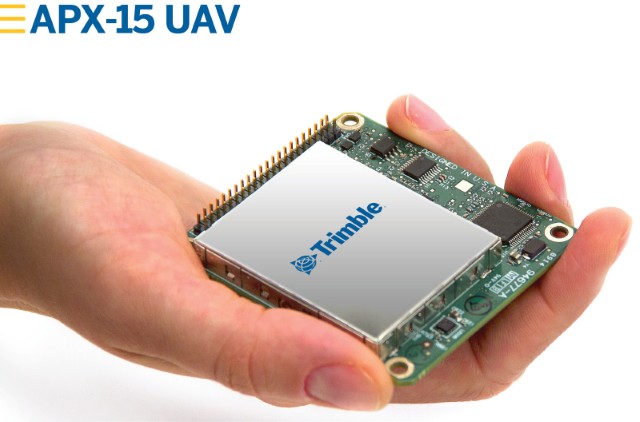

Driver for the Applanix $PASHR message, a customized NMEA ASCII string, outputted via UDP network e.g. from a Trimble/Applanix APX-15 GNSS OEM.

Driver	Generic - Applanix $PASHR (Network)	Interface Type	Network UDP	Driver Class Type	Terminated
UTC Driver	Yes	Input / Output	Input	Executable	Applanix$PASHR.ini
Related Systems	Generic - Applanix PASHR (Network) - 03 Pitch Roll Heave Sensor Generic - Applanix PASHR (Network) - 05
Related Pages

Besides the accurate UTC timestamp, the roll, pitch and heading observations are decoded, plus the relevant quality indicators.

Note that no heave information is available.

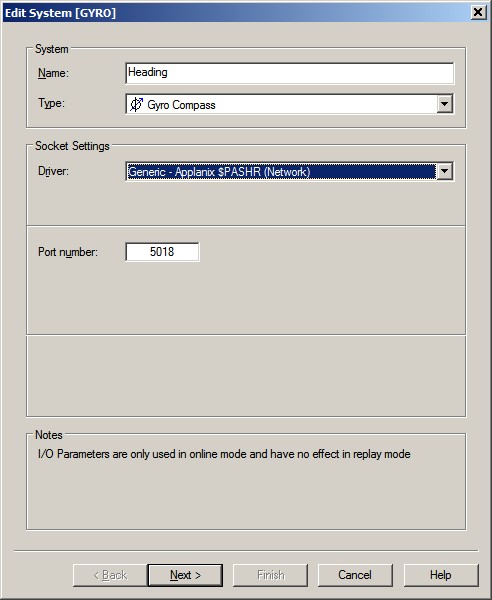

To decode the heading, add a "System" of type "Gyro Compass" and select driver "Generic - Applanix $PASHR (Network) ". Enter the correct Port number (UDP) and on the next wizard page leave the Observation Parameters to the defaults.

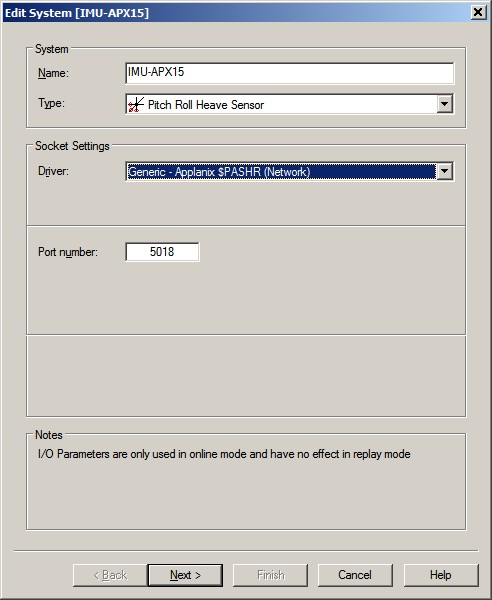

In order to decode the roll and pitch observation, add a "System" of type "Pitch Roll Heave Sensor" and select driver "Generic - Applanix $PASHR (Network) ".
Enter the same Port number (UDP) as for the "Gyro Compass" system and on the next wizard page leave the Motion Sensor Parameters to the defaults (i.e. Roll convention: +ve heeling to starboard, Pitch convention: +ve bow up).
