Anchors - Generate

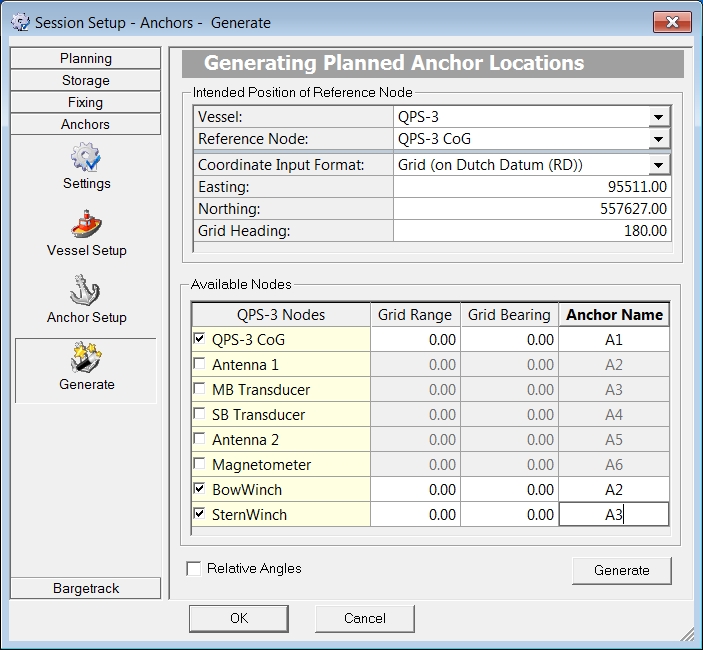

On this page planned anchor positions can be calculated based on the planned position of the Barge / Rig.

Intended Position of Reference Node
Vessel	Select which Object in the database is the Barge / Rig.
Reference Node	Select which node on the rig should be used as reference for its planned position.
Coordinate Input Format	Select the input format for the planned position of the rig.
Easting / Northing / Grid Heading	Enter the planned position of the rig.
Available Nodes
Nodes	Nodes on the rig which can be used as reference for the planned positions of the anchors.
Grid Range	Enter the range between the selected node and the planned anchor position to be generated.
Grid Bearing	Enter the bearing from the selected node to the anchor position to be generated.
Anchor Name	Enter a name for the anchor position which will be generated.
Relative Angles	Calculate angles relative to the barge / rig.
<Generate>	The planned anchor locations will be generated and stored in the line database of this project. They can be selected as Plan Location in the Anchor Setup page now.
