Dredging - Design

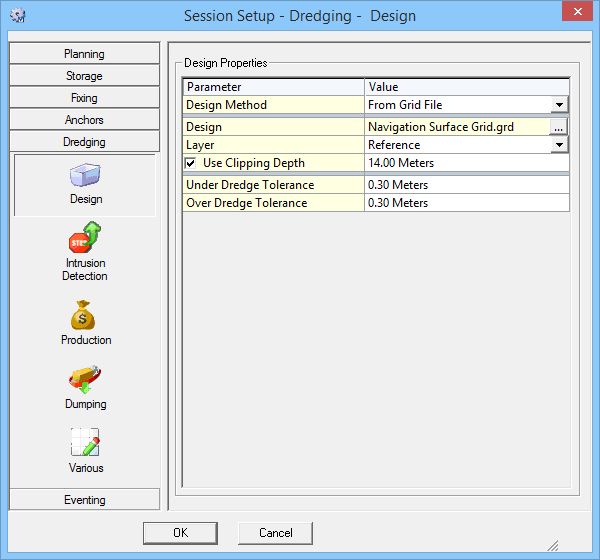

Enter the design parameters here.

Design Properties
Design MethodFor the design different options can be chosen:
Manual Depth - Manually enter a value for the design depth.
From Grid File - Design depth will be taken from a selected layer of a selected Sounding Grid File.
From Mapping File - Design depth will be taken from a selected layer of a selected QINSy Mapping file (*.PRO).
Use Clipping Depth

This option is only available when From Grid file or From Mapping File is selected as Design Method.
Enable this option in order to generate a new target depth for the design.
The clipping depth that is entered must be an absolute value.

Dredge TolerancesAn upper and lower dredge tolerance can be entered. These values are relative to the design.

Return to: SessionSetup - Dredging
