Hookup Operation - Anchor State Overview
QINSy ANCHOR STATES

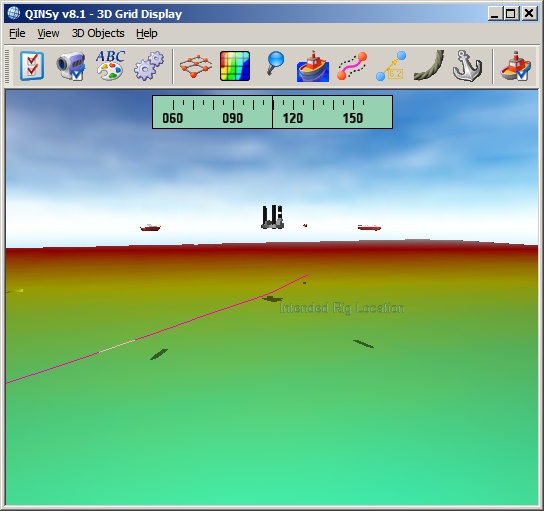

| STAGE | 0 | 0 | 1 | 2 | 3 | 4 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|

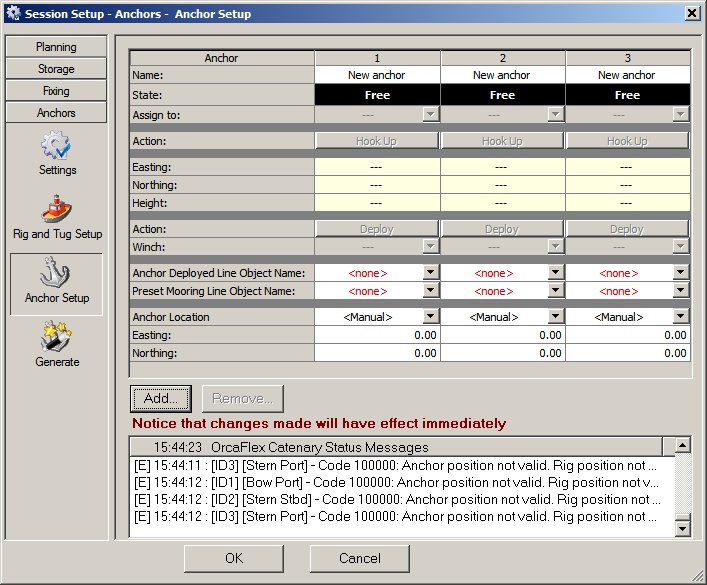

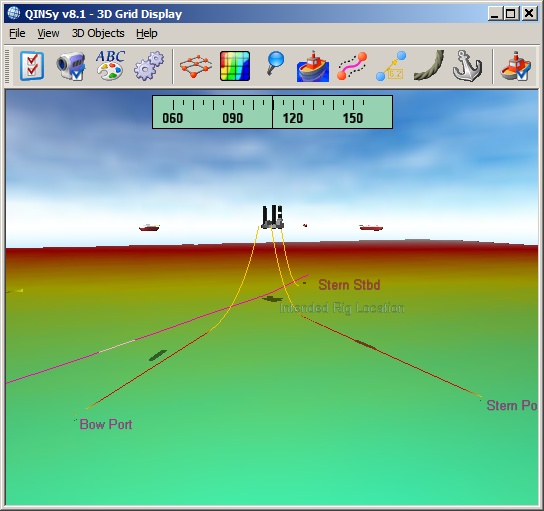

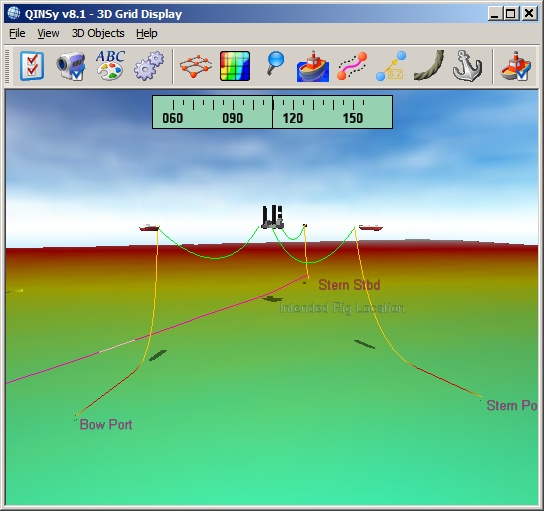

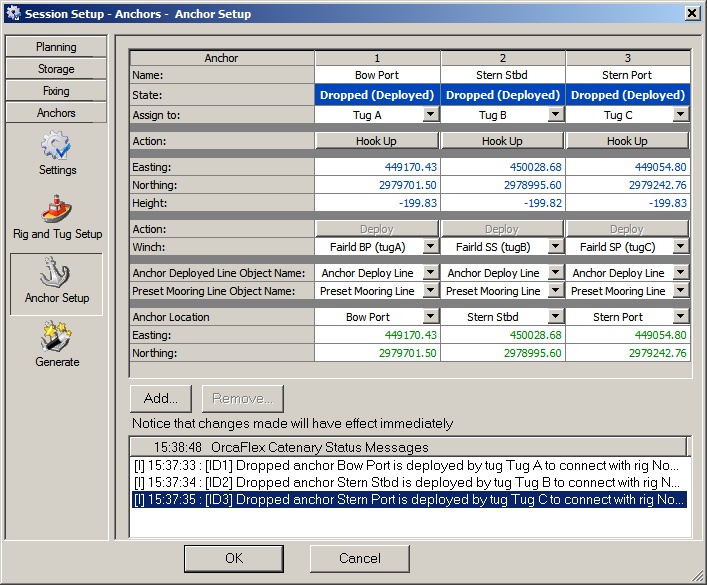

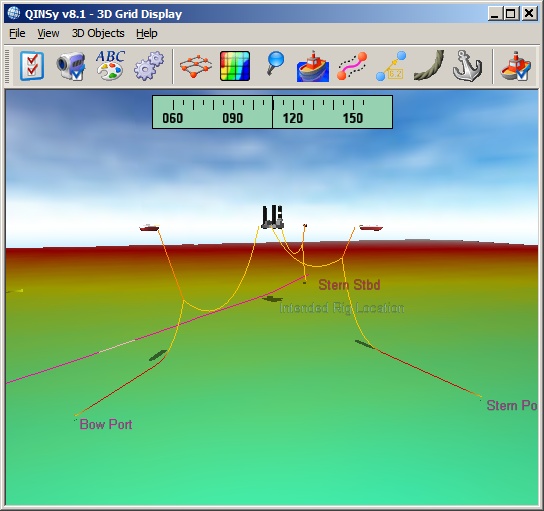

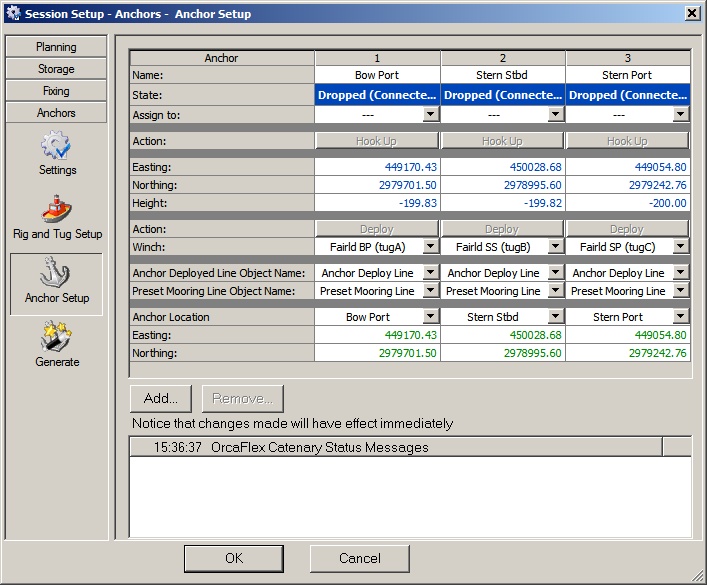

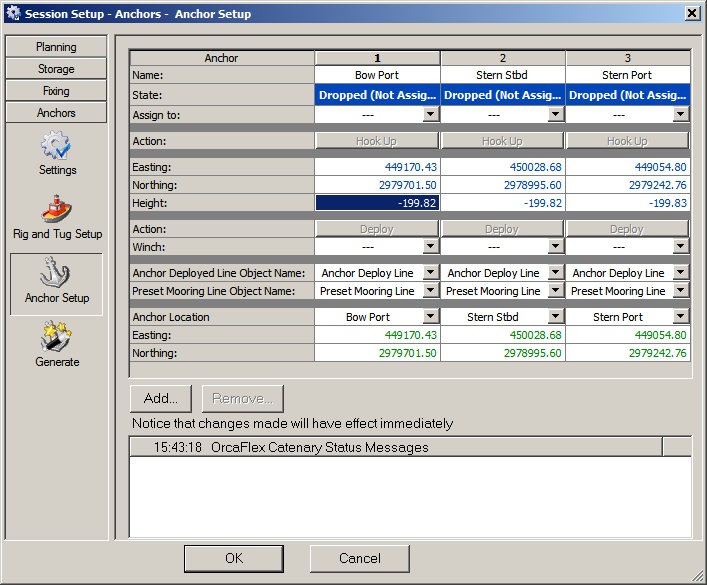

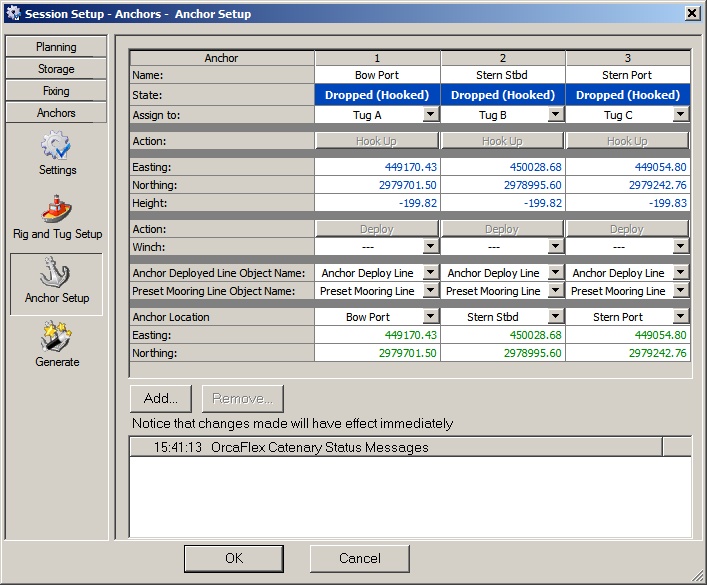

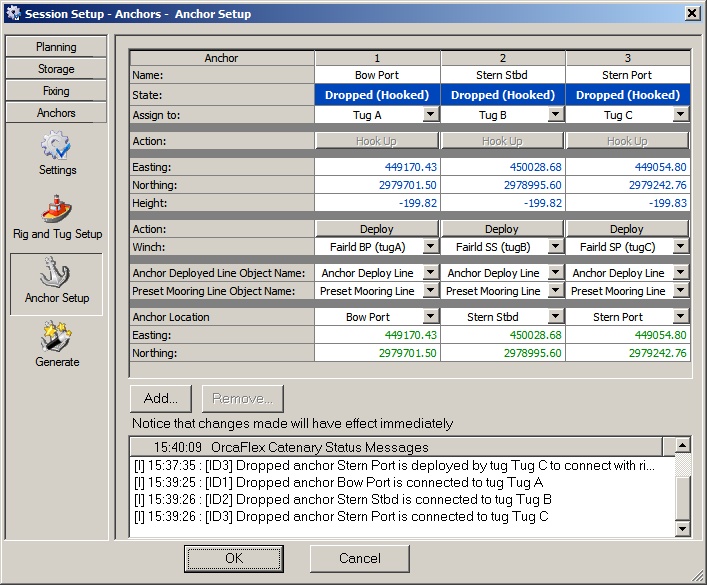

| ANCHOR STATE | Free | → | Dropped (Not Assigned) | → | Dropped (Hooked) | → | Dropped (Hooked) | → | Dropped (Deployed) | → | Dropped (Connected) | |
| Action | 'Add' button | → | 'Anchor Location' selection | → | 'Assign to' selection | → | 'Winch' selection | → | 'Deploy' button | → | 'Assign to' selection | |
Comment | Anchor co-ordinates not set | Anchor co-ordinates set | Tug assigned, Rig not assigned | Tug assigned, Rig assigned | Tug assigned, Rig assigned | Tug not assigned, Rig assigned | ||||||
 |  |  |  |  |  | |||||||

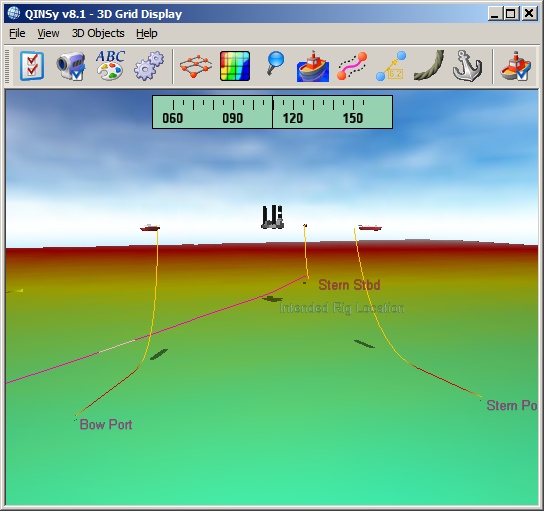

| Catenary Wires | ||||||||||||
| From Anchor to Tug |  | | ||||||||||
| From Rig to Tug | | |||||||||||
| From Tug to Anchor Deploy Line | | Wire only available with OrcaFlex | ||||||||||
| From Anchor to Rig | | | ||||||||||
| OrcaFlex | Wire length from: | |||||||||||
| Preset Mooring Line object | | | Work Wire Length observation | |||||||||
| Rig Chain | | Rig Chain Length observation | ||||||||||
| Work Wire Link object | | Work Wire Length observation | ||||||||||
| Anchor Deploy Line object | | | Rig Chain Length observation | |||||||||
 |  | |  |  |  |  | |
