Qimera Grid Cell Properties Dock

How to Start

1. Select the Grid Cell Properties Dock tab - initially located in the Project Layers tab group.
2. If hidden - Select the Grid Cell Properties Dock tab. This will be saved for the current workspace.
3. If hidden - Select Window Menu → Grid Cell Properties Dock.

What it Does

The Grid Cell Properties Dock shows the attribute values for a cell of a dynamic surface that the cursor is hovering over.

General Description

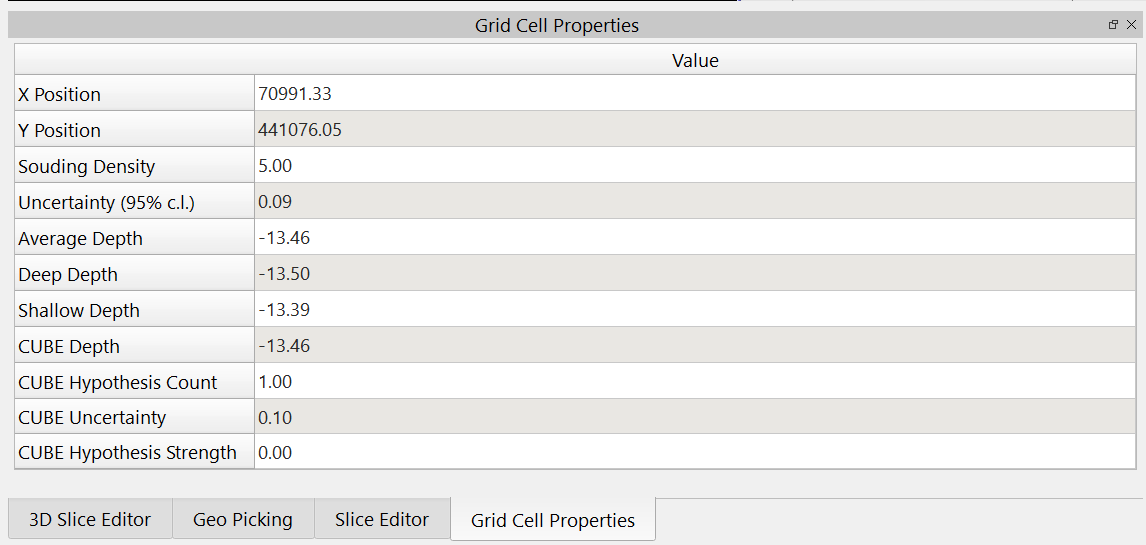

After selecting a dynamic surface from the layers window, Qimera will utilize this dock for viewing Cell information. The Cell Information will not just show cell information for the selected Dynamic Surface from the the layers window, but rather from any dynamic surface that the cursor is hovering over. Qimera will use the x,y position of the cursor and match that up with a Cell from the dynamic surface that the cursor is hovering over. The Grid Cell Properties Dock will display X, Y position of the cursor, the Sounding Density, the Uncertainty, and the Average, Deep and Shallow Depth values. If CUBE is included with the Dynamic Surface, it will also display the CUBE depth value, the number of hypothesis, the Hypothesis Uncertainty, and the Hypothesis Strength values.
