Qimera Process History Dock

Qimera - Process History

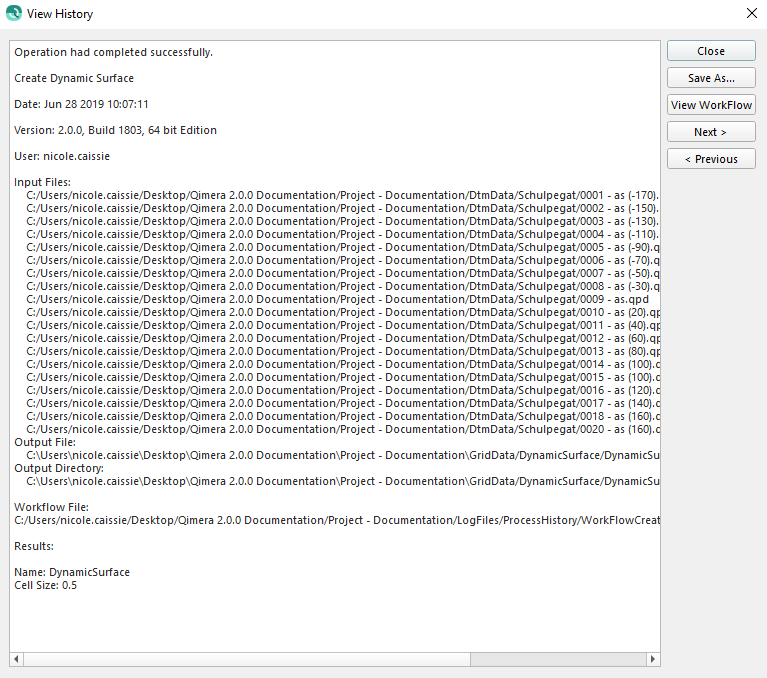

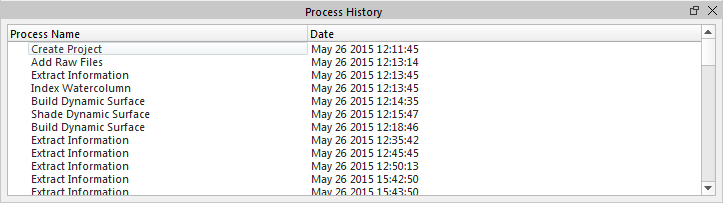

The Process History window shows a list of every processing job run on your project.  If you Double-Click an entry, it will bring up a detail window based on the job type.  For example, clicking on the Create Dynamic Grid entry displays the following detail dialog.

Save As

This allows you to save the workflow data to an XML file.

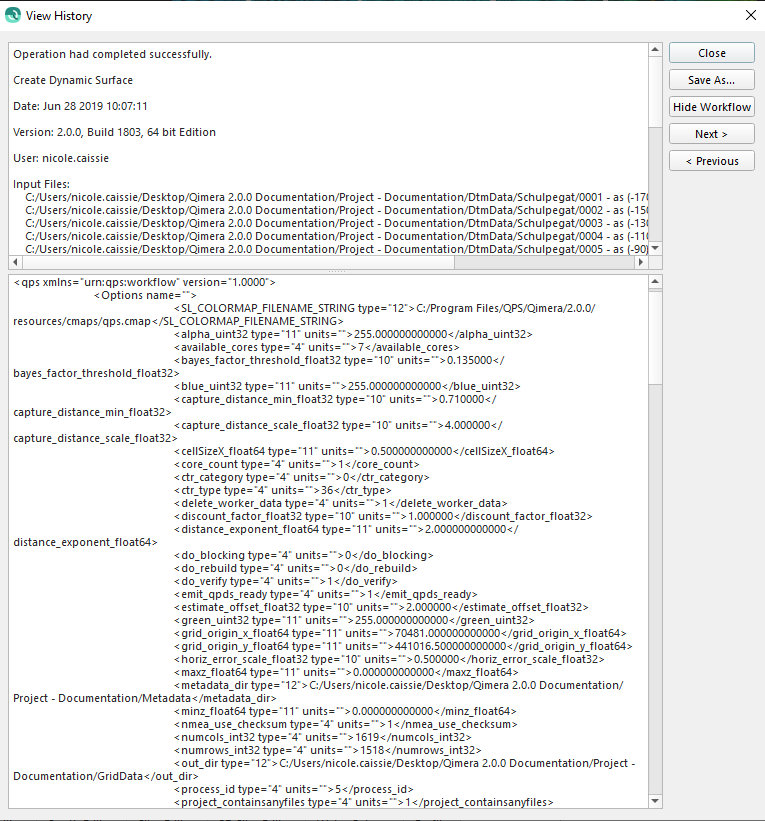

View Workflow

This shows the underlying detailed workflow information that was part of the job.

Next

This button will take you to the history detail of the next job in the list.

Previous

This button will take you to the history detail of the previous job in the list.
