R2Sonic

Manufacturer	R2Sonic
Website	https://r2sonic.com/

Find your system, corresponding driver and useful links below.

Multibeam Echosounders

Useful links for Multibeams

How-to Methods Used to Acquire Sonar Imagery
How-to Calibrate a Multibeam Echosounder (Patch Test)
- Qimera: How-to Process a Patch Test
How-to Use the Wobble Analysis Tool
Backscatter processing in FMGT Documentation

Multibeam Echosounder Systems		Preferred drivers

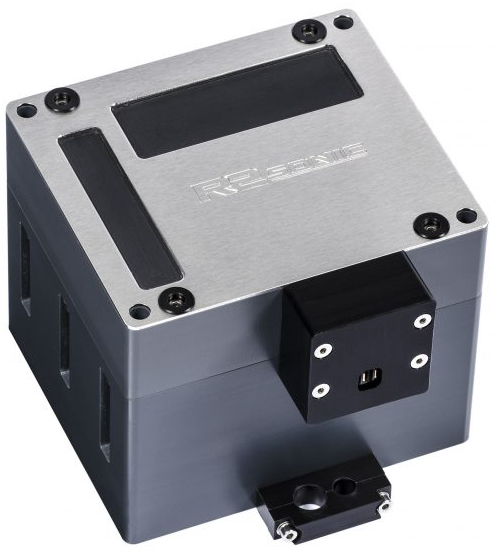

R2Sonic 2020		R2Sonic 2000 Series (Network) - 20 Multibeam Echosounder R2Sonic 2000 Series (Network) Truepix - 27 Sidescan Sonar

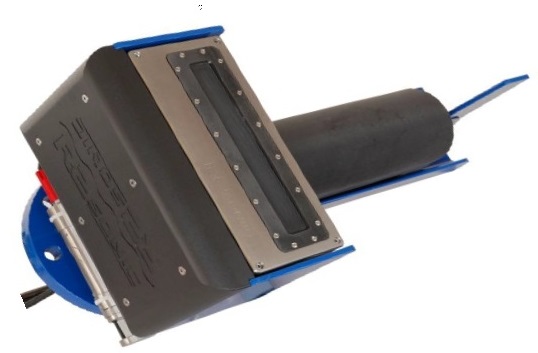

R2Sonic 2022		R2Sonic 2000 Series (Network) - 20 Multibeam Echosounder R2Sonic 2000 Series (Network) Truepix - 27 Sidescan Sonar

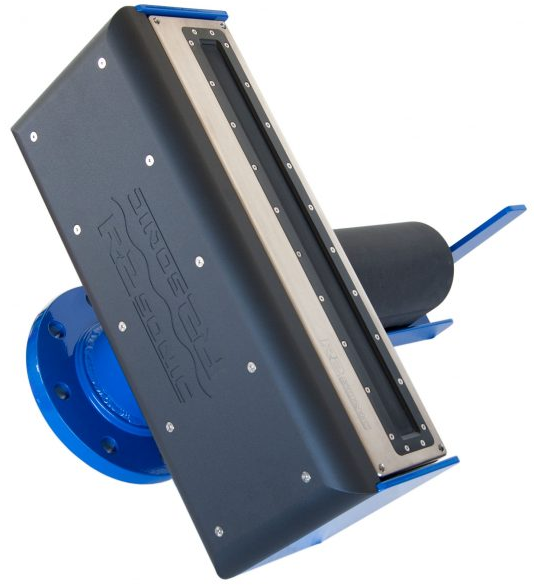

R2Sonic 2024		R2Sonic 2000 Series (Network) - 20 Multibeam Echosounder R2Sonic 2000 Series (Network) Truepix - 27 Sidescan Sonar

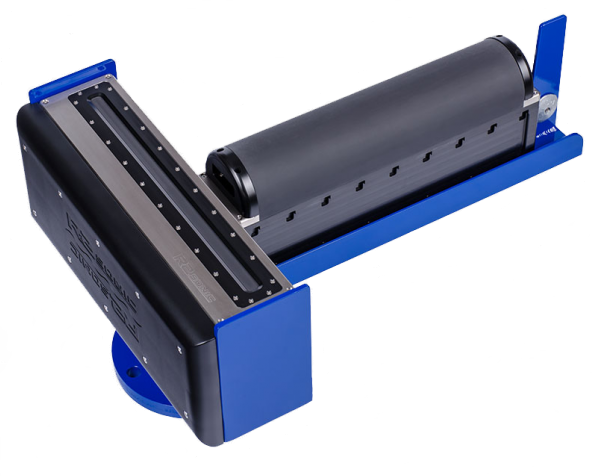

R2Sonic 2026		R2Sonic 2000 Series (Network) - 20 Multibeam Echosounder R2Sonic 2000 Series (Network) Truepix - 27 Sidescan Sonar

Useful links for Inertial Navigation Systems

Integrated INS		Preferred drivers

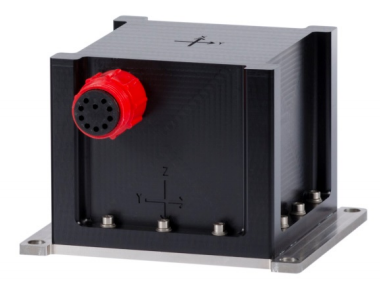

I2NS		Network - POS MV V5 (Binary Group 1-102-103) - 03 Pitch Roll Heave Sensor Network - POS MV V5 (Binary Group 1-102-103) - 05 Gyro Compass Network - POS MV V5 (Binary Group 1-102-103-1000n) - 12 Position Navigation System Network - POS MV V5 (Binary Group 3-10-11-20 - Status) - 23 Miscellaneous System Network - POS MV V5 (Binary Group 7-112 - NMEA ZDA) - 18 Time Synchronization System
