Exail (former iXblue)

Manufacturer	Exail
Website	https://www.exail.com/

Find your system, corresponding driver and useful links below.

Useful links

Inertial Navigation Systems		Preferred drivers

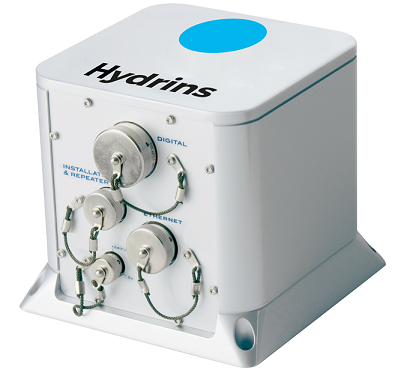

Hydrins		iXblue Std Bin (Output only) - 15 Output System iXblue Std Bin (Smart Heave) - 23 Miscellaneous System iXblue Std Bin (UTC) - 12 Position Navigation System iXblue Std Bin (UTC) (LBL + USBL Targets) - 33 ARPA System iXblue Std Bin (UTC) - 03 Pitch Roll Heave Sensor iXblue Std Bin (UTC) - 05 Gyro iXblue Std Bin (UTC) - 10 Surface Navigation System iXblue Std Bin (UTC) - 18 Time Synchronization System iXblue Std Bin (UTC) - 23 Miscellaneous System iXblue Std Bin (UTC) - 30 Speed Log iXblue Std Bin (UTC) - 31 Underwater Sensor iXblue Std Bin (Vel/Acc/Rot) (UTC) - 42 Acceleration Velocity Sensor Network (TCP) - iXblue Std Bin (Output only) - 15 Output System Network (TCP) - iXblue Std Bin (Smart Heave) - 23 Miscellaneous System Network (TCP) - iXblue Std Bin (UTC) (LBL + USBL Targets) - 33 ARPA System Network (TCP) - iXblue Std Bin (UTC) - 03 Pitch Roll Heave Sensor Network (TCP) - iXblue Std Bin (UTC) - 05 Gyro Network (TCP) - iXblue Std Bin (UTC) - 10 Surface Navigation System Network (TCP) - iXblue Std Bin (UTC) - 12 Position Navigation System Network (TCP) - iXblue Std Bin (UTC) - 18 Time Synchronization System Network (TCP) - iXblue Std Bin (UTC) - 23 Miscellaneous System Network (TCP) - iXblue Std Bin (UTC) - 30 Speed Log Network (TCP) - iXblue Std Bin (UTC) - 31 Underwater Sensor Network (TCP) - iXblue Std Bin (Vel/Acc/Rot) (UTC) - 42 Acceleration Velocity Sensor Network (UDP) - iXblue Std Bin (Output only) - 15 Output System Network (UDP) - iXblue Std Bin (Smart Heave) - 23 Miscellaneous System Network (UDP) - iXblue Std Bin (UTC) (LBL + USBL Targets) - 33 ARPA System Network (UDP) - iXblue Std Bin (UTC) - 03 Pitch Roll Heave Sensor Network (UDP) - iXblue Std Bin (UTC) - 05 Gyro Network (UDP) - iXblue Std Bin (UTC) - 10 Surface Navigation System Network (UDP) - iXblue Std Bin (UTC) - 12 Position Navigation System Network (UDP) - iXBlue Std Bin (UTC) - 18 Time Synchronization System Network (UDP) - iXblue Std Bin (UTC) - 23 Miscellaneous System Network (UDP) - iXblue Std Bin (UTC) - 30 Speed Log Network (UDP) - iXblue Std Bin (UTC) - 31 Underwater Sensor Network (UDP) - iXblue Std Bin (Vel/Acc/Rot) (UTC) - 42 Acceleration Velocity Sensor

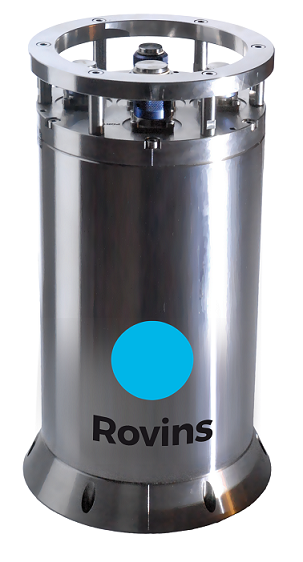

Rovins		iXblue Std Bin (Output only) - 15 Output System iXblue Std Bin (Smart Heave) - 23 Miscellaneous System iXblue Std Bin (UTC) - 12 Position Navigation System iXblue Std Bin (UTC) (LBL + USBL Targets) - 33 ARPA System iXblue Std Bin (UTC) - 03 Pitch Roll Heave Sensor iXblue Std Bin (UTC) - 05 Gyro iXblue Std Bin (UTC) - 10 Surface Navigation System iXblue Std Bin (UTC) - 18 Time Synchronization System iXblue Std Bin (UTC) - 23 Miscellaneous System iXblue Std Bin (UTC) - 30 Speed Log iXblue Std Bin (UTC) - 31 Underwater Sensor iXblue Std Bin (Vel/Acc/Rot) (UTC) - 42 Acceleration Velocity Sensor Network (TCP) - iXblue Std Bin (Output only) - 15 Output System Network (TCP) - iXblue Std Bin (Smart Heave) - 23 Miscellaneous System Network (TCP) - iXblue Std Bin (UTC) (LBL + USBL Targets) - 33 ARPA System Network (TCP) - iXblue Std Bin (UTC) - 03 Pitch Roll Heave Sensor Network (TCP) - iXblue Std Bin (UTC) - 05 Gyro Network (TCP) - iXblue Std Bin (UTC) - 10 Surface Navigation System Network (TCP) - iXblue Std Bin (UTC) - 12 Position Navigation System Network (TCP) - iXblue Std Bin (UTC) - 18 Time Synchronization System Network (TCP) - iXblue Std Bin (UTC) - 23 Miscellaneous System Network (TCP) - iXblue Std Bin (UTC) - 30 Speed Log Network (TCP) - iXblue Std Bin (UTC) - 31 Underwater Sensor Network (TCP) - iXblue Std Bin (Vel/Acc/Rot) (UTC) - 42 Acceleration Velocity Sensor Network (UDP) - iXblue Std Bin (Output only) - 15 Output System Network (UDP) - iXblue Std Bin (Smart Heave) - 23 Miscellaneous System Network (UDP) - iXblue Std Bin (UTC) (LBL + USBL Targets) - 33 ARPA System Network (UDP) - iXblue Std Bin (UTC) - 03 Pitch Roll Heave Sensor Network (UDP) - iXblue Std Bin (UTC) - 05 Gyro Network (UDP) - iXblue Std Bin (UTC) - 10 Surface Navigation System Network (UDP) - iXblue Std Bin (UTC) - 12 Position Navigation System Network (UDP) - iXBlue Std Bin (UTC) - 18 Time Synchronization System Network (UDP) - iXblue Std Bin (UTC) - 23 Miscellaneous System Network (UDP) - iXblue Std Bin (UTC) - 30 Speed Log Network (UDP) - iXblue Std Bin (UTC) - 31 Underwater Sensor Network (UDP) - iXblue Std Bin (Vel/Acc/Rot) (UTC) - 42 Acceleration Velocity Sensor

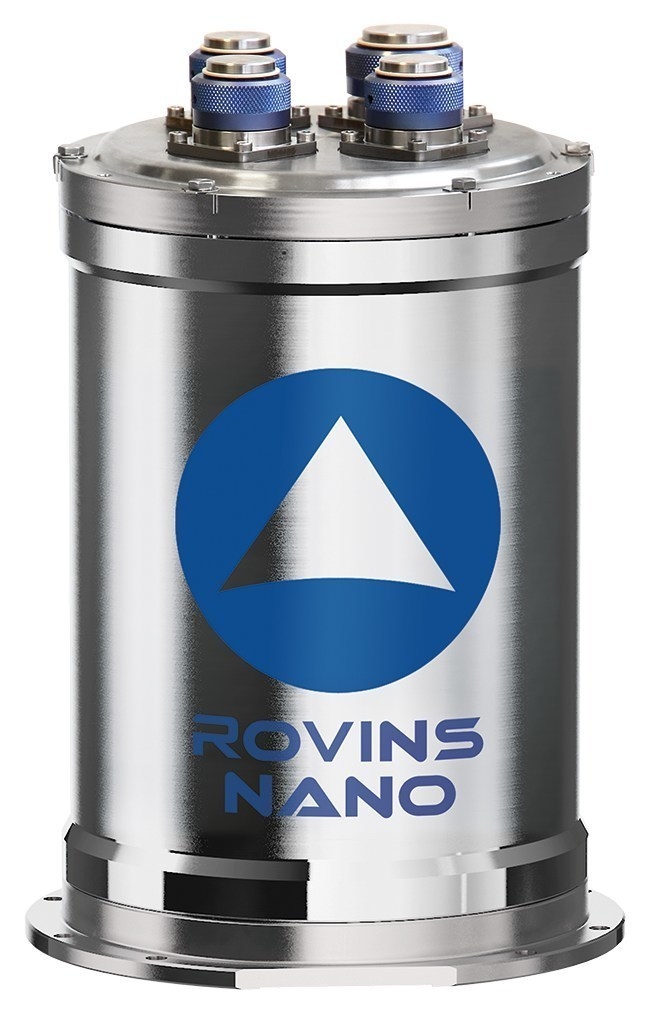

Rovins Nano		iXblue Std Bin (Output only) - 15 Output System iXblue Std Bin (Smart Heave) - 23 Miscellaneous System iXblue Std Bin (UTC) - 12 Position Navigation System iXblue Std Bin (UTC) (LBL + USBL Targets) - 33 ARPA System iXblue Std Bin (UTC) - 03 Pitch Roll Heave Sensor iXblue Std Bin (UTC) - 05 Gyro iXblue Std Bin (UTC) - 10 Surface Navigation System iXblue Std Bin (UTC) - 18 Time Synchronization System iXblue Std Bin (UTC) - 23 Miscellaneous System iXblue Std Bin (UTC) - 30 Speed Log iXblue Std Bin (UTC) - 31 Underwater Sensor iXblue Std Bin (Vel/Acc/Rot) (UTC) - 42 Acceleration Velocity Sensor Network (TCP) - iXblue Std Bin (Output only) - 15 Output System Network (TCP) - iXblue Std Bin (Smart Heave) - 23 Miscellaneous System Network (TCP) - iXblue Std Bin (UTC) (LBL + USBL Targets) - 33 ARPA System Network (TCP) - iXblue Std Bin (UTC) - 03 Pitch Roll Heave Sensor Network (TCP) - iXblue Std Bin (UTC) - 05 Gyro Network (TCP) - iXblue Std Bin (UTC) - 10 Surface Navigation System Network (TCP) - iXblue Std Bin (UTC) - 12 Position Navigation System Network (TCP) - iXblue Std Bin (UTC) - 18 Time Synchronization System Network (TCP) - iXblue Std Bin (UTC) - 23 Miscellaneous System Network (TCP) - iXblue Std Bin (UTC) - 30 Speed Log Network (TCP) - iXblue Std Bin (UTC) - 31 Underwater Sensor Network (TCP) - iXblue Std Bin (Vel/Acc/Rot) (UTC) - 42 Acceleration Velocity Sensor Network (UDP) - iXblue Std Bin (Output only) - 15 Output System Network (UDP) - iXblue Std Bin (Smart Heave) - 23 Miscellaneous System Network (UDP) - iXblue Std Bin (UTC) (LBL + USBL Targets) - 33 ARPA System Network (UDP) - iXblue Std Bin (UTC) - 03 Pitch Roll Heave Sensor Network (UDP) - iXblue Std Bin (UTC) - 05 Gyro Network (UDP) - iXblue Std Bin (UTC) - 10 Surface Navigation System Network (UDP) - iXblue Std Bin (UTC) - 12 Position Navigation System Network (UDP) - iXBlue Std Bin (UTC) - 18 Time Synchronization System Network (UDP) - iXblue Std Bin (UTC) - 23 Miscellaneous System Network (UDP) - iXblue Std Bin (UTC) - 30 Speed Log Network (UDP) - iXblue Std Bin (UTC) - 31 Underwater Sensor Network (UDP) - iXblue Std Bin (Vel/Acc/Rot) (UTC) - 42 Acceleration Velocity Sensor
Phins		iXblue Std Bin (Output only) - 15 Output System iXblue Std Bin (Smart Heave) - 23 Miscellaneous System iXblue Std Bin (UTC) - 12 Position Navigation System iXblue Std Bin (UTC) (LBL + USBL Targets) - 33 ARPA System iXblue Std Bin (UTC) - 03 Pitch Roll Heave Sensor iXblue Std Bin (UTC) - 05 Gyro iXblue Std Bin (UTC) - 10 Surface Navigation System iXblue Std Bin (UTC) - 18 Time Synchronization System iXblue Std Bin (UTC) - 23 Miscellaneous System iXblue Std Bin (UTC) - 30 Speed Log iXblue Std Bin (UTC) - 31 Underwater Sensor iXblue Std Bin (Vel/Acc/Rot) (UTC) - 42 Acceleration Velocity Sensor Network (TCP) - iXblue Std Bin (Output only) - 15 Output System Network (TCP) - iXblue Std Bin (Smart Heave) - 23 Miscellaneous System Network (TCP) - iXblue Std Bin (UTC) (LBL + USBL Targets) - 33 ARPA System Network (TCP) - iXblue Std Bin (UTC) - 03 Pitch Roll Heave Sensor Network (TCP) - iXblue Std Bin (UTC) - 05 Gyro Network (TCP) - iXblue Std Bin (UTC) - 10 Surface Navigation System Network (TCP) - iXblue Std Bin (UTC) - 12 Position Navigation System Network (TCP) - iXblue Std Bin (UTC) - 18 Time Synchronization System Network (TCP) - iXblue Std Bin (UTC) - 23 Miscellaneous System Network (TCP) - iXblue Std Bin (UTC) - 30 Speed Log Network (TCP) - iXblue Std Bin (UTC) - 31 Underwater Sensor Network (TCP) - iXblue Std Bin (Vel/Acc/Rot) (UTC) - 42 Acceleration Velocity Sensor Network (UDP) - iXblue Std Bin (Output only) - 15 Output System Network (UDP) - iXblue Std Bin (Smart Heave) - 23 Miscellaneous System Network (UDP) - iXblue Std Bin (UTC) (LBL + USBL Targets) - 33 ARPA System Network (UDP) - iXblue Std Bin (UTC) - 03 Pitch Roll Heave Sensor Network (UDP) - iXblue Std Bin (UTC) - 05 Gyro Network (UDP) - iXblue Std Bin (UTC) - 10 Surface Navigation System Network (UDP) - iXblue Std Bin (UTC) - 12 Position Navigation System Network (UDP) - iXBlue Std Bin (UTC) - 18 Time Synchronization System Network (UDP) - iXblue Std Bin (UTC) - 23 Miscellaneous System Network (UDP) - iXblue Std Bin (UTC) - 30 Speed Log Network (UDP) - iXblue Std Bin (UTC) - 31 Underwater Sensor Network (UDP) - iXblue Std Bin (Vel/Acc/Rot) (UTC) - 42 Acceleration Velocity Sensor
Phins C3		iXblue Std Bin (Output only) - 15 Output System iXblue Std Bin (Smart Heave) - 23 Miscellaneous System iXblue Std Bin (UTC) - 12 Position Navigation System iXblue Std Bin (UTC) (LBL + USBL Targets) - 33 ARPA System iXblue Std Bin (UTC) - 03 Pitch Roll Heave Sensor iXblue Std Bin (UTC) - 05 Gyro iXblue Std Bin (UTC) - 10 Surface Navigation System iXblue Std Bin (UTC) - 18 Time Synchronization System iXblue Std Bin (UTC) - 23 Miscellaneous System iXblue Std Bin (UTC) - 30 Speed Log iXblue Std Bin (UTC) - 31 Underwater Sensor iXblue Std Bin (Vel/Acc/Rot) (UTC) - 42 Acceleration Velocity Sensor Network (TCP) - iXblue Std Bin (Output only) - 15 Output System Network (TCP) - iXblue Std Bin (Smart Heave) - 23 Miscellaneous System Network (TCP) - iXblue Std Bin (UTC) (LBL + USBL Targets) - 33 ARPA System Network (TCP) - iXblue Std Bin (UTC) - 03 Pitch Roll Heave Sensor Network (TCP) - iXblue Std Bin (UTC) - 05 Gyro Network (TCP) - iXblue Std Bin (UTC) - 10 Surface Navigation System Network (TCP) - iXblue Std Bin (UTC) - 12 Position Navigation System Network (TCP) - iXblue Std Bin (UTC) - 18 Time Synchronization System Network (TCP) - iXblue Std Bin (UTC) - 23 Miscellaneous System Network (TCP) - iXblue Std Bin (UTC) - 30 Speed Log Network (TCP) - iXblue Std Bin (UTC) - 31 Underwater Sensor Network (TCP) - iXblue Std Bin (Vel/Acc/Rot) (UTC) - 42 Acceleration Velocity Sensor Network (UDP) - iXblue Std Bin (Output only) - 15 Output System Network (UDP) - iXblue Std Bin (Smart Heave) - 23 Miscellaneous System Network (UDP) - iXblue Std Bin (UTC) (LBL + USBL Targets) - 33 ARPA System Network (UDP) - iXblue Std Bin (UTC) - 03 Pitch Roll Heave Sensor Network (UDP) - iXblue Std Bin (UTC) - 05 Gyro Network (UDP) - iXblue Std Bin (UTC) - 10 Surface Navigation System Network (UDP) - iXblue Std Bin (UTC) - 12 Position Navigation System Network (UDP) - iXBlue Std Bin (UTC) - 18 Time Synchronization System Network (UDP) - iXblue Std Bin (UTC) - 23 Miscellaneous System Network (UDP) - iXblue Std Bin (UTC) - 30 Speed Log Network (UDP) - iXblue Std Bin (UTC) - 31 Underwater Sensor Network (UDP) - iXblue Std Bin (Vel/Acc/Rot) (UTC) - 42 Acceleration Velocity Sensor
Phins C5		iXblue Std Bin (Output only) - 15 Output System iXblue Std Bin (Smart Heave) - 23 Miscellaneous System iXblue Std Bin (UTC) - 12 Position Navigation System iXblue Std Bin (UTC) (LBL + USBL Targets) - 33 ARPA System iXblue Std Bin (UTC) - 03 Pitch Roll Heave Sensor iXblue Std Bin (UTC) - 05 Gyro iXblue Std Bin (UTC) - 10 Surface Navigation System iXblue Std Bin (UTC) - 18 Time Synchronization System iXblue Std Bin (UTC) - 23 Miscellaneous System iXblue Std Bin (UTC) - 30 Speed Log iXblue Std Bin (UTC) - 31 Underwater Sensor iXblue Std Bin (Vel/Acc/Rot) (UTC) - 42 Acceleration Velocity Sensor Network (TCP) - iXblue Std Bin (Output only) - 15 Output System Network (TCP) - iXblue Std Bin (Smart Heave) - 23 Miscellaneous System Network (TCP) - iXblue Std Bin (UTC) (LBL + USBL Targets) - 33 ARPA System Network (TCP) - iXblue Std Bin (UTC) - 03 Pitch Roll Heave Sensor Network (TCP) - iXblue Std Bin (UTC) - 05 Gyro Network (TCP) - iXblue Std Bin (UTC) - 10 Surface Navigation System Network (TCP) - iXblue Std Bin (UTC) - 12 Position Navigation System Network (TCP) - iXblue Std Bin (UTC) - 18 Time Synchronization System Network (TCP) - iXblue Std Bin (UTC) - 23 Miscellaneous System Network (TCP) - iXblue Std Bin (UTC) - 30 Speed Log Network (TCP) - iXblue Std Bin (UTC) - 31 Underwater Sensor Network (TCP) - iXblue Std Bin (Vel/Acc/Rot) (UTC) - 42 Acceleration Velocity Sensor Network (UDP) - iXblue Std Bin (Output only) - 15 Output System Network (UDP) - iXblue Std Bin (Smart Heave) - 23 Miscellaneous System Network (UDP) - iXblue Std Bin (UTC) (LBL + USBL Targets) - 33 ARPA System Network (UDP) - iXblue Std Bin (UTC) - 03 Pitch Roll Heave Sensor Network (UDP) - iXblue Std Bin (UTC) - 05 Gyro Network (UDP) - iXblue Std Bin (UTC) - 10 Surface Navigation System Network (UDP) - iXblue Std Bin (UTC) - 12 Position Navigation System Network (UDP) - iXBlue Std Bin (UTC) - 18 Time Synchronization System Network (UDP) - iXblue Std Bin (UTC) - 23 Miscellaneous System Network (UDP) - iXblue Std Bin (UTC) - 30 Speed Log Network (UDP) - iXblue Std Bin (UTC) - 31 Underwater Sensor Network (UDP) - iXblue Std Bin (Vel/Acc/Rot) (UTC) - 42 Acceleration Velocity Sensor
Phins C7		iXblue Std Bin (Output only) - 15 Output System iXblue Std Bin (Smart Heave) - 23 Miscellaneous System iXblue Std Bin (UTC) - 12 Position Navigation System iXblue Std Bin (UTC) (LBL + USBL Targets) - 33 ARPA System iXblue Std Bin (UTC) - 03 Pitch Roll Heave Sensor iXblue Std Bin (UTC) - 05 Gyro iXblue Std Bin (UTC) - 10 Surface Navigation System iXblue Std Bin (UTC) - 18 Time Synchronization System iXblue Std Bin (UTC) - 23 Miscellaneous System iXblue Std Bin (UTC) - 30 Speed Log iXblue Std Bin (UTC) - 31 Underwater Sensor iXblue Std Bin (Vel/Acc/Rot) (UTC) - 42 Acceleration Velocity Sensor Network (TCP) - iXblue Std Bin (Output only) - 15 Output System Network (TCP) - iXblue Std Bin (Smart Heave) - 23 Miscellaneous System Network (TCP) - iXblue Std Bin (UTC) (LBL + USBL Targets) - 33 ARPA System Network (TCP) - iXblue Std Bin (UTC) - 03 Pitch Roll Heave Sensor Network (TCP) - iXblue Std Bin (UTC) - 05 Gyro Network (TCP) - iXblue Std Bin (UTC) - 10 Surface Navigation System Network (TCP) - iXblue Std Bin (UTC) - 12 Position Navigation System Network (TCP) - iXblue Std Bin (UTC) - 18 Time Synchronization System Network (TCP) - iXblue Std Bin (UTC) - 23 Miscellaneous System Network (TCP) - iXblue Std Bin (UTC) - 30 Speed Log Network (TCP) - iXblue Std Bin (UTC) - 31 Underwater Sensor Network (TCP) - iXblue Std Bin (Vel/Acc/Rot) (UTC) - 42 Acceleration Velocity Sensor Network (UDP) - iXblue Std Bin (Output only) - 15 Output System Network (UDP) - iXblue Std Bin (Smart Heave) - 23 Miscellaneous System Network (UDP) - iXblue Std Bin (UTC) (LBL + USBL Targets) - 33 ARPA System Network (UDP) - iXblue Std Bin (UTC) - 03 Pitch Roll Heave Sensor Network (UDP) - iXblue Std Bin (UTC) - 05 Gyro Network (UDP) - iXblue Std Bin (UTC) - 10 Surface Navigation System Network (UDP) - iXblue Std Bin (UTC) - 12 Position Navigation System Network (UDP) - iXBlue Std Bin (UTC) - 18 Time Synchronization System Network (UDP) - iXblue Std Bin (UTC) - 23 Miscellaneous System Network (UDP) - iXblue Std Bin (UTC) - 30 Speed Log Network (UDP) - iXblue Std Bin (UTC) - 31 Underwater Sensor Network (UDP) - iXblue Std Bin (Vel/Acc/Rot) (UTC) - 42 Acceleration Velocity Sensor

Motion + Gyro Systems

Useful links for Motion + Gyro Sensors

Motion Sensors		Preferred drivers

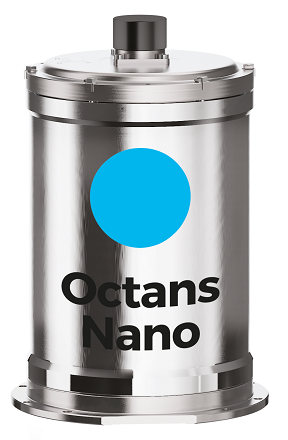

Octans Nano		iXblue Std Bin (Output only) - 15 Output System iXblue Std Bin (Smart Heave) - 23 Miscellaneous System iXblue Std Bin (UTC) - 12 Position Navigation System iXblue Std Bin (UTC) (LBL + USBL Targets) - 33 ARPA System iXblue Std Bin (UTC) - 03 Pitch Roll Heave Sensor iXblue Std Bin (UTC) - 05 Gyro iXblue Std Bin (UTC) - 10 Surface Navigation System iXblue Std Bin (UTC) - 18 Time Synchronization System iXblue Std Bin (UTC) - 23 Miscellaneous System iXblue Std Bin (UTC) - 30 Speed Log iXblue Std Bin (UTC) - 31 Underwater Sensor iXblue Std Bin (Vel/Acc/Rot) (UTC) - 42 Acceleration Velocity Sensor Network (TCP) - iXblue Std Bin (Output only) - 15 Output System Network (TCP) - iXblue Std Bin (Smart Heave) - 23 Miscellaneous System Network (TCP) - iXblue Std Bin (UTC) (LBL + USBL Targets) - 33 ARPA System Network (TCP) - iXblue Std Bin (UTC) - 03 Pitch Roll Heave Sensor Network (TCP) - iXblue Std Bin (UTC) - 05 Gyro Network (TCP) - iXblue Std Bin (UTC) - 10 Surface Navigation System Network (TCP) - iXblue Std Bin (UTC) - 12 Position Navigation System Network (TCP) - iXblue Std Bin (UTC) - 18 Time Synchronization System Network (TCP) - iXblue Std Bin (UTC) - 23 Miscellaneous System Network (TCP) - iXblue Std Bin (UTC) - 30 Speed Log Network (TCP) - iXblue Std Bin (UTC) - 31 Underwater Sensor Network (TCP) - iXblue Std Bin (Vel/Acc/Rot) (UTC) - 42 Acceleration Velocity Sensor Network (UDP) - iXblue Std Bin (Output only) - 15 Output System Network (UDP) - iXblue Std Bin (Smart Heave) - 23 Miscellaneous System Network (UDP) - iXblue Std Bin (UTC) (LBL + USBL Targets) - 33 ARPA System Network (UDP) - iXblue Std Bin (UTC) - 03 Pitch Roll Heave Sensor Network (UDP) - iXblue Std Bin (UTC) - 05 Gyro Network (UDP) - iXblue Std Bin (UTC) - 10 Surface Navigation System Network (UDP) - iXblue Std Bin (UTC) - 12 Position Navigation System Network (UDP) - iXBlue Std Bin (UTC) - 18 Time Synchronization System Network (UDP) - iXblue Std Bin (UTC) - 23 Miscellaneous System Network (UDP) - iXblue Std Bin (UTC) - 30 Speed Log Network (UDP) - iXblue Std Bin (UTC) - 31 Underwater Sensor Network (UDP) - iXblue Std Bin (Vel/Acc/Rot) (UTC) - 42 Acceleration Velocity Sensor

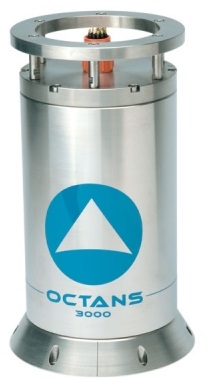

Octans 3000		Network - iXBlue Octans TAH (PHOCT) (Heave as ROV Depth) (UTC) - 31 Underwater Sensor Network - iXBlue Octans TAH (PHOCT) (UTC) - 05 Gyro Compass Network - iXBlue Octans TAH (PHOCT) (UTC) - 23 Miscellaneous System Network - iXBlue Octans TAH (PHOCT) - 05 Gyro Compass Network - iXBlue Octans TAH (PHOCT) - 23 Miscellaneous System Network - iXBlue Octans TAH (PHOCT) R-P-H (UTC) - 03 Pitch Roll Heave Sensor Network - iXBlue Octans TAH (PHOCT) R-P-H - 03 Pitch Roll Heave Sensor
Octans (G4 & G5)		Network - iXBlue Octans TAH (PHOCT) (Heave as ROV Depth) (UTC) - 31 Underwater Sensor Network - iXBlue Octans TAH (PHOCT) (UTC) - 05 Gyro Compass Network - iXBlue Octans TAH (PHOCT) (UTC) - 23 Miscellaneous System Network - iXBlue Octans TAH (PHOCT) - 05 Gyro Compass Network - iXBlue Octans TAH (PHOCT) - 23 Miscellaneous System Network - iXBlue Octans TAH (PHOCT) R-P-H (UTC) - 03 Pitch Roll Heave Sensor Network - iXBlue Octans TAH (PHOCT) R-P-H - 03 Pitch Roll Heave Sensor
Octans G3		iXBlue Octans TAH (PHOCT) (Heave as ROV Depth) (UTC) - 31 Underwater Sensor iXBlue Octans TAH (PHOCT) (Heave as ROV Depth) - 31 Underwater Sensor iXBlue Octans TAH (PHOCT) (UTC) - 05 Gyro Compass iXBlue Octans TAH (PHOCT) (UTC) - 23 Miscellaneous System iXBlue Octans TAH (PHOCT) - 05 Gyro Compass iXBlue Octans TAH (PHOCT) - 23 Miscellaneous System iXBlue Octans TAH (PHOCT) R-P-H (UTC) - 03 Pitch Roll Heave Sensor iXBlue Octans TAH (PHOCT) R-P-H - 03 Pitch Roll Heave Sensor

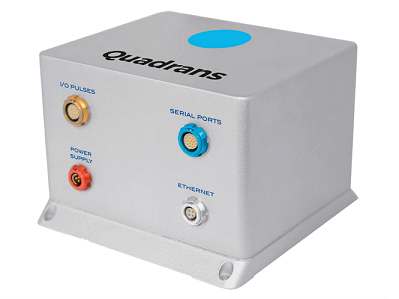

Quadrans		Network - iXBlue Octans TAH (PHOCT) (Heave as ROV Depth) (UTC) - 31 Underwater Sensor Network - iXBlue Octans TAH (PHOCT) (UTC) - 05 Gyro Compass Network - iXBlue Octans TAH (PHOCT) (UTC) - 23 Miscellaneous System Network - iXBlue Octans TAH (PHOCT) - 05 Gyro Compass Network - iXBlue Octans TAH (PHOCT) - 23 Miscellaneous System Network - iXBlue Octans TAH (PHOCT) R-P-H (UTC) - 03 Pitch Roll Heave Sensor Network - iXBlue Octans TAH (PHOCT) R-P-H - 03 Pitch Roll Heave Sensor

USBL Systems

Useful links for USBL systems

USBL Systems		Preferred drivers

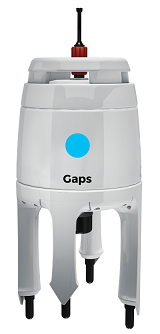

Gaps		Network - iXBlue GAPS (PTSAG Message) (UTC) - 12 Position Navigation System iXBlue GAPS (USBL INS 1 message) Depth - 31 Underwater Sensor iXBlue GAPS (USBL INS 1 Message) Position - 12 Position Navigation System
Posidonia		Network - iXBlue GAPS (PTSAG Message) (UTC) - 12 Position Navigation System iXBlue GAPS (USBL INS 1 message) Depth - 31 Underwater Sensor iXBlue GAPS (USBL INS 1 Message) Position - 12 Position Navigation System
