June 2, 2025
We are pleased to present FMGT 7.11.2
Highlights
-
Directory Monitor now supports .kmall files.
-
Dual head R2Sonic pairing with GSF is now supported.
-
Fixed an issue with the HIPS I/O local license for Caris 12 users.
-
Set the system id in the GSF for s7k files containing only beam average. The settings are correctly populated.
-
New License Manager version 1.10.0.
-
With this release we have improved the way you work with colormaps.
-

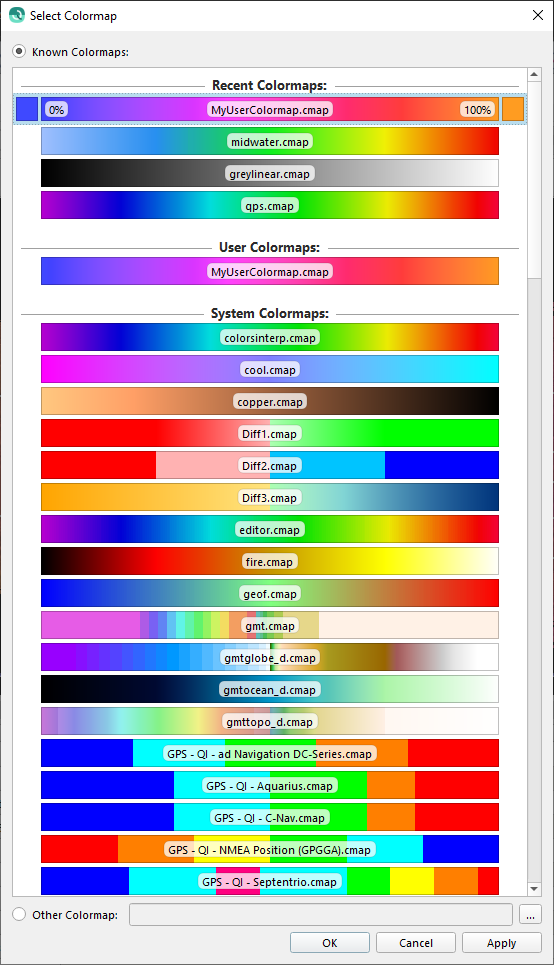

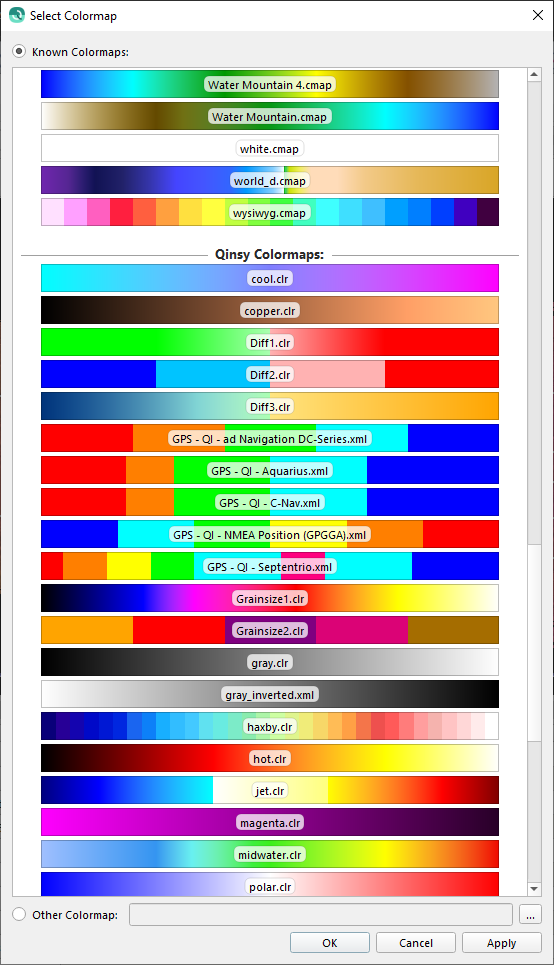

Change Colormap - Each colormap now displays a preview when selecting. In addition you can see the overflow and underflow colours as well as if it is percentage based or fixed range.
-
The colormaps are ordered with Recent Colormaps on top followed by User Colormaps, System Colormaps and Qinsy Colormaps.
-
Bugs
-
Fixed the nominal frequency of the EM304 MKII in kmall format, resulting in a more accurate backscatter correction.
-
Fixed an issue with Absorption values for Kongsberg KMALL systems not being correctly populated when merging files to create a GSF.
-
Fixed an issue with Override Real-Time Absorption not applying for Kongsberg .kmall systems in GSF format.
-
Fixed an issue extracting the correct navigation priorities for kmall files. The bug appeared as smearing in the mosaic.
-
Fixed an issue with the map view having a pixel offset when launched on a second monitor. This affected mouse clicking on the mosaic/grid.
-
Fixed a gap that appeared between lines, where Use adjacent lines within time window of was not working correctly.
-
Fixed an issue when importing an EdgeTech 6205 where the second head was not importing for beam average.
-
Fixed an issue with FMGT’s histogram slider ranges showing valid bounds.
-
Fixed a crash when generating a mosaic from .all.mb58 files.
-
Fixed an issue with Norbit dual swath GSF pairing ping lookup.
-
Fixed an issue with KMALL and HDCS pairing causing an incorrect auto time sync lookup.
Known Issues
