Qinsy 9.4.5 - Improvements

On this page:

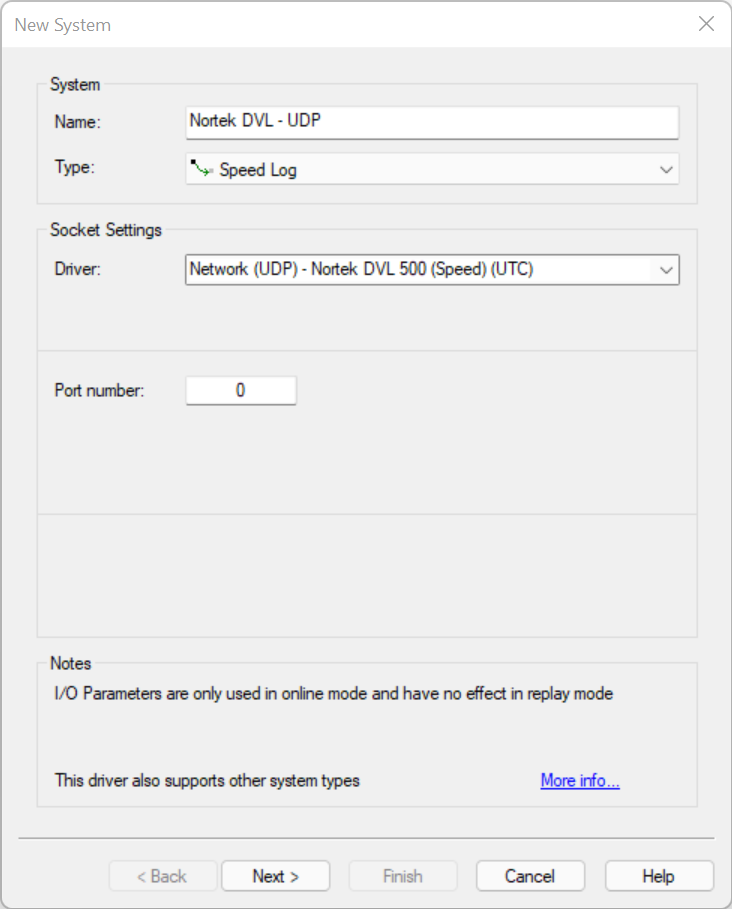

Drivers - ADCP/DVL - Nortek DVL500 - Add UDP version

In Qinsy 9.4.4 we added a driver for the Nortek DVL500 system to decode DVL and ADCP data.
In this version we also added the option to decode this format via UDP.

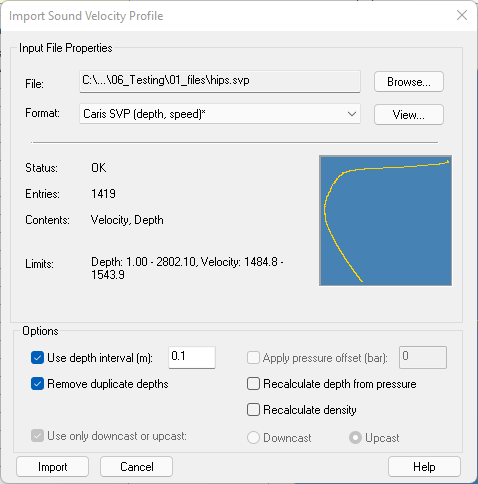

Online - Echosounder Settings - SVP - Add in CARIS .svp Format as an option for SVP Import

It is now possible to select the Caris format directly when importing Sound Velocity Profiles.
This can also be used to monitor a folder. More info on this can be found here.

Survey Manager - CAD - Annotation - Option to set Icon and Text scale settings

It is now possible to set the scale of the Annotation Icons and Text.

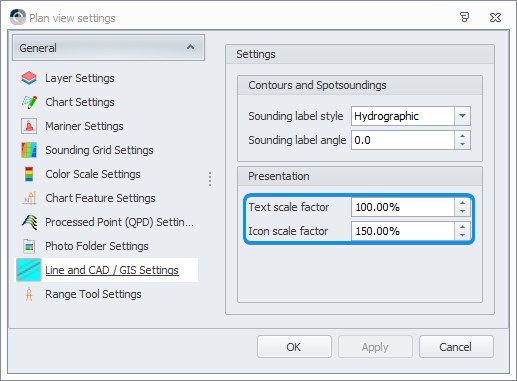

The settings for this can be found in the Plan View settings:

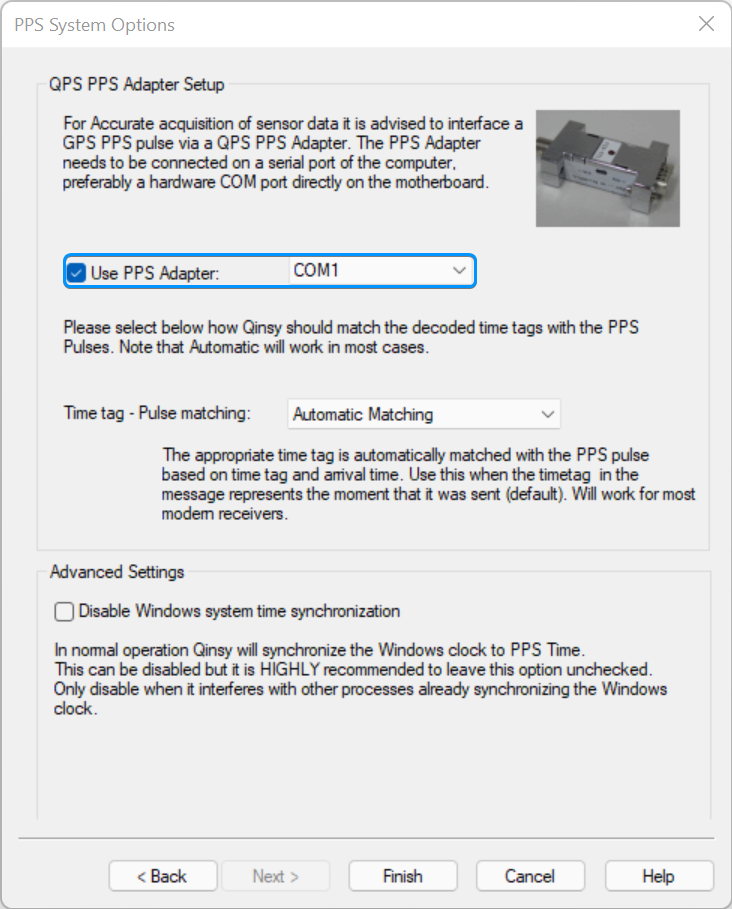

Timing - Improved PPS detection

We made improvements to the way we detect the PPS pulse, which will result in a better way of detecting the pulse for some serial boards.

This is only applicable to users who use the QPS PPS adapter in combination with Qinsy.

This was tested in the office and in the field. Users who are already using PPS with Qinsy should not experience a difference.

Improvements as listed in the Voting system
