Qinsy 9.7.4 - Known Issues

The QPS team is continuously improving Qinsy to implement new functionality and documentation.
Unfortunately, there are a number of known issues in our software release.

These software issues will be solved in future maintenance releases.

License Manager - Activate Softlock

Problem

Our License provider LimeLM needs to have all Network Adapters enabled when trying to activate a softlock license. In some situations, the dialog “Failed to Activate License” with the message “There are network adapters on the system that are disabled, please enable them and try again.” might appear when trying to activate the softlock license.

This will prevent you from activating the softlock license.

Workaround

Follow the steps on https://qpssoftware.scrollhelp.site/lm/network-adapter-error-troubleshooting-steps for potential solutions.

Planned fix

The fix depends on our license provider. When we have an official solution it will be part of our installers.

Windows 11 update 23H2 (or higher) fails due to Squire

Problem

It seems that a background Service, Squire (used for Survey Manager), is preventing Windows from updating in some cases.
What happens is that Windows tries to update to Windows 11 version 23H2 or newer and then crashed during the update.

Workaround

Before you download and install the Windows update:

  • Close Qinsy;

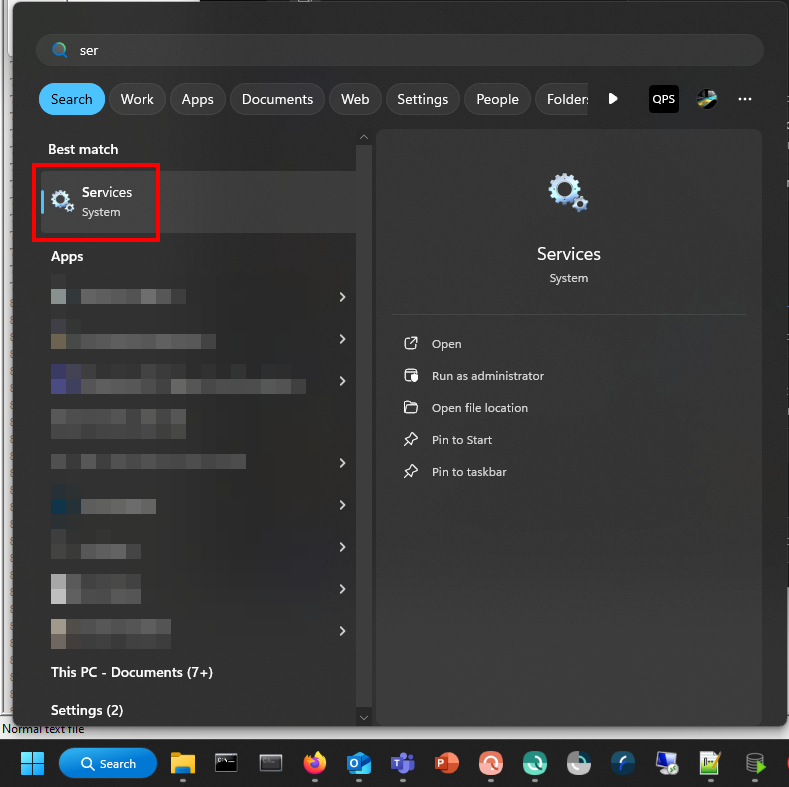

  • Open Services:

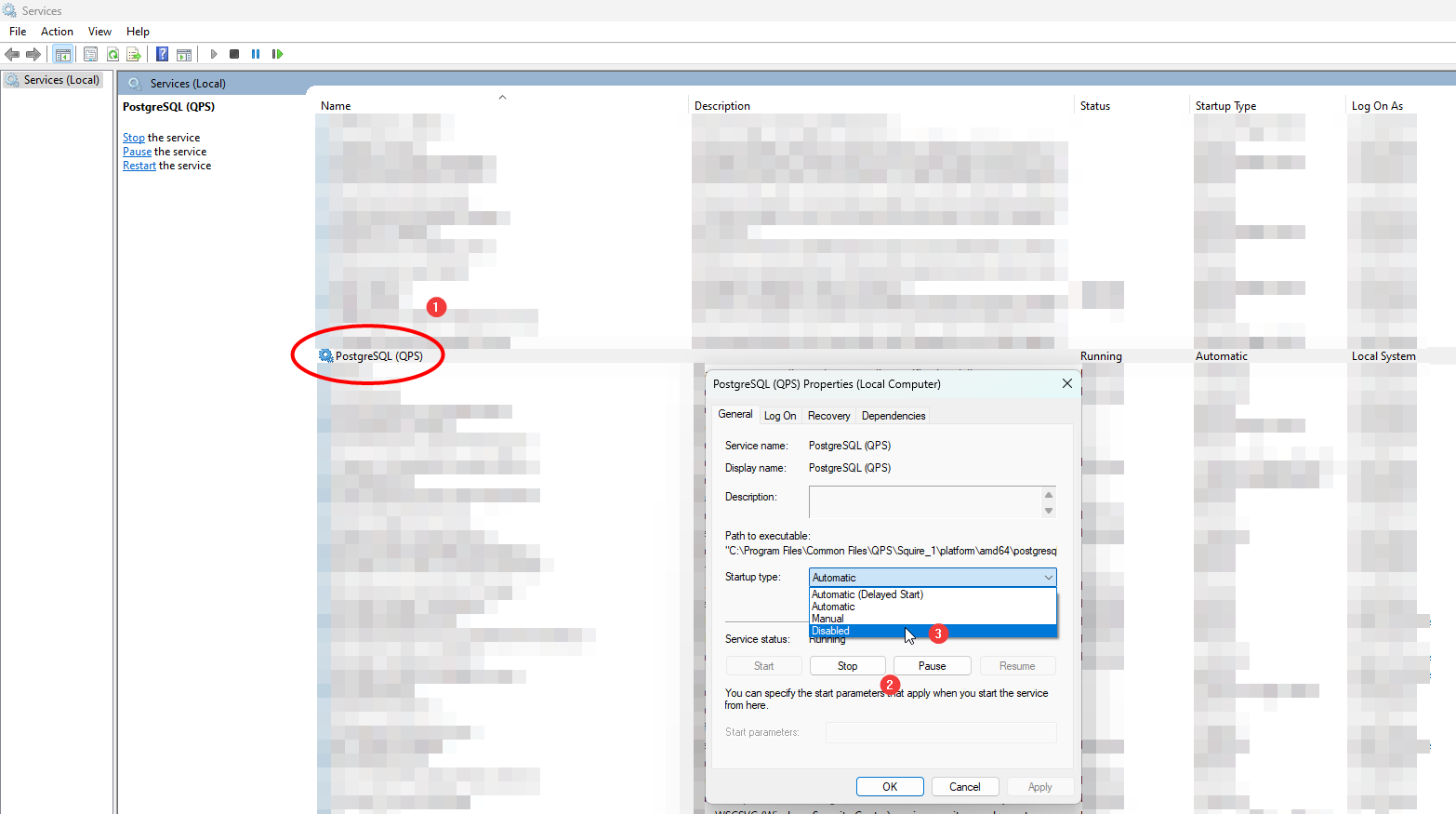

  • Search for PostgreSQL (QPS), set Startup type to Disabled and Stop the Service

  • Download and install Windows update;

    • You might need to restart once before you do this;

  • Restart and update your PC;

  • Open Services again and set the PostgreSQL (QPS) back to Enabled;

    • You can Start the service again but starting Survey manager will do this automatically already.

Planned fix

Since we have only seen this on QPS PCs so far, we have not planned to fix this yet.
However, if you run into this, please contact QPS support.

Long running known issues

Click to expand...

Displays - Navigation - CAD

Converting a design file into a background file will not show lines when the start and end point of a line are outside the view. (Viewing Panel)

Recommendation
Do not convert design files into background files. If lines from a design are needed in the Navigation Display, then create a dedicated background file.

Displays - Navigation - CAD Survey Manager

The QPS team encountered a memory problem with CAD files which contain many complex blocks.

Recommendation
Do not use CAD files which contain many complex blocks. This bug will be solved in a future maintenance release.

Displays - Navigation - ENC Survey Manager

Both the Survey Manager and Navigation Display are not Per monitor DPI aware.
With two monitors, each with different display scales, the scale on the secondary monitor will not be correct.
This also affects the way the ENCs are drawn.

Recommendation
Please vote on: FQI-605

Survey Manager - Plan View - ENC

ENCs produced by Rijkswaterstaat for the Dutch province of Zeeland and ENCs produced by the Netherlands Hydrographic office cannot be displayed simultaneously due to the different usage levels and compilation scales of both producers.

For more information and updates: https://vaarweginformatie.nl/frp/main/#/page/infra_enc

Survey Manager - Sounding Grid - Import Geoid Model

Since Qinsy 9.5.0 it is possible again to import most Geoid models into a sounding grid.
The only Geoid models that cannot be imported yet, are the ones that cross the dateline (+180° East/West).

Please let us know if you do need to import such a model.
