Generic - Geometrics G882 TVG Mag-1 - 35

Description

Drivers Manual for Geometrics G882 TVG when data for multiple sensors is combined in one datastring.

Driver Information

Driver	Generic - Geometrics G882 TVG Mag-1 Generic - Geometrics G882 TVG Mag-2	Interface Type	Serial/UDP	Driver Class Type	Counted - UDP Terminated - Serial	Created	17 Dec 2021
UTC Driver	No	Input / Output	Input	Executable	DrvInputSerial DrvInputUDP	Updated	17 Dec 2021
Related Systems	Generic - Geometrics G882 TVG Mag-1 - 01 Singlebeam Echosounder Generic - Geometrics G882 TVG Mag-1 - 23 Miscellaneous System Generic - Geometrics G882 TVG Mag-1 - 31 Underwater sensor Generic - Geometrics G882 TVG Mag-1 - 35 Magnetometer Generic - Geometrics G882 TVG Mag-1 (Network) - 01 Singlebeam Echosounder Generic - Geometrics G882 TVG Mag-1 (Network) - 23 Miscellaneous System Generic - Geometrics G882 TVG Mag-1 (Network) - 31 Underwater sensor Generic - Geometrics G882 TVG Mag-1 (Network) - 35 Magnetometer Generic - Geometrics G882 TVG Mag-2 - 01 Singlebeam Echosounder Generic - Geometrics G882 TVG Mag-2 - 23 Miscellaneous System Generic - Geometrics G882 TVG Mag-2 - 31 Underwater sensor Generic - Geometrics G882 TVG Mag-2 - 35 Magnetometer Generic - Geometrics G882 TVG Mag-2 (Network) - 01 Singlebeam Echosounder Generic - Geometrics G882 TVG Mag-2 (Network) - 23 Miscellaneous System Generic - Geometrics G882 TVG Mag-2 (Network) - 31 Underwater sensor Generic - Geometrics G882 TVG Mag-2 (Network) - 35 Magnetometer
Related Pages	Magnetometer (Geometrics G880) - 23 Miscellaneous System Magnetometer (Geometrics G880) - 31 Underwater Sensor Magnetometer (Geometrics G880) - 35 Magnetometer Magnetometer (Geometrics G882) - 31 Underwater Sensor Magnetometer (Geometrics G882) - 35 Magnetometer Magnetometer (Geometrics G882) - 23 Miscellaneous System

Coding Notes

Decoding Notes

The system can output data of multiple magnetometer sensors in one string.
"Generic - Geometrics G882 TVG Mag-1" will decode the first part, "Generic - Geometrics G882 TVG Mag-2" will decode the second part.
See Format information for more detail.

This is the same for both the Serial and UDP version of the driver.

Qinsy Configuration

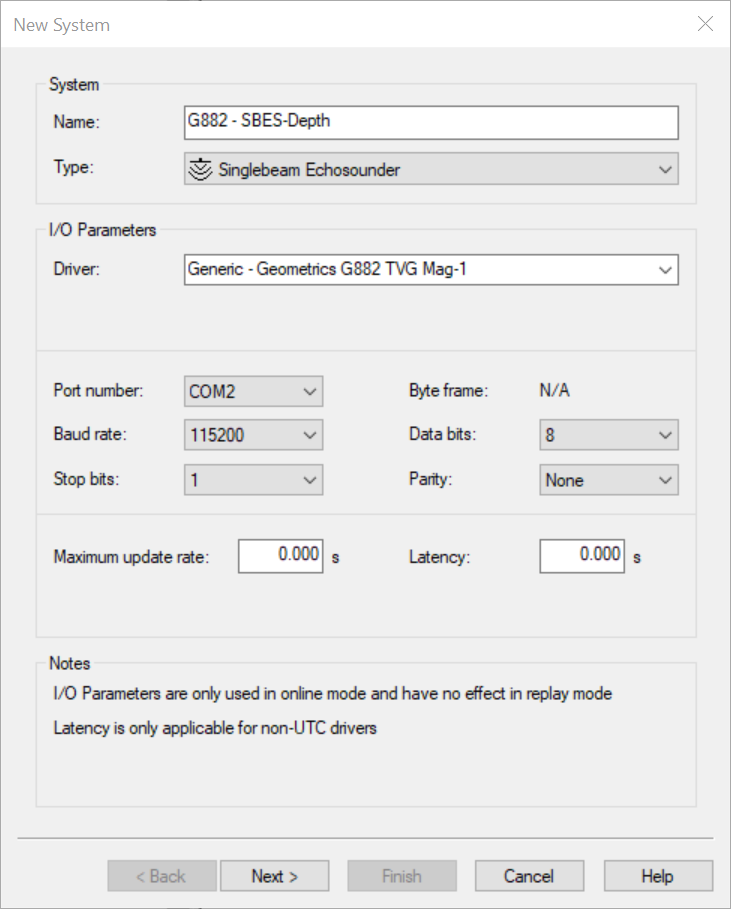

Database setup

The data from the system can be decoded in several ways.

System type	Observation	Additional info
Magnetometer	Magnetic Field	Magnetometer value in Nano Tesla.
Magnetometer	Magnetic Field Quality	Both this observation and Miscellaneous - Signal Strength are decoding the same value from the data string. Although the observation is labelled 'Quality', this is the signal strength value from the Magnetometer. If you would like this observation to be named 'Signal Strength', set up the related Miscellaneous system (See below).
Underwater sensor	Depth	Depth below waterline.
Underwater sensor	Altitude	Both this observation and Singlebeam - Depth are decoding the same value from the data string.
Singlebeam	Depth	Both this observation and Underwater Sensor - Altitude are decoding the same value from the data string. We included the Altitude to be recorded as a singlebeam system so that it can be written to the QPS .qpd file. This will allow the user to export this value to data types like the OASIS .gdb file type.
Miscellaneous	Signal Strength	Both this observation and Magnetometer - Magnetic Field Quality are decoding the same value from the data string. Generally this Misc system is only used when users specifically want the 'Signal strength' label on the data coming in. Otherwise this system is not necessary to setup.

Info

Depending on your setup, you may only require two systems per Mag - the Magnetometer and the Underwater sensor.

This is because of the different methods of decoding the same fields, as mentioned in the above table.

Magnetometer

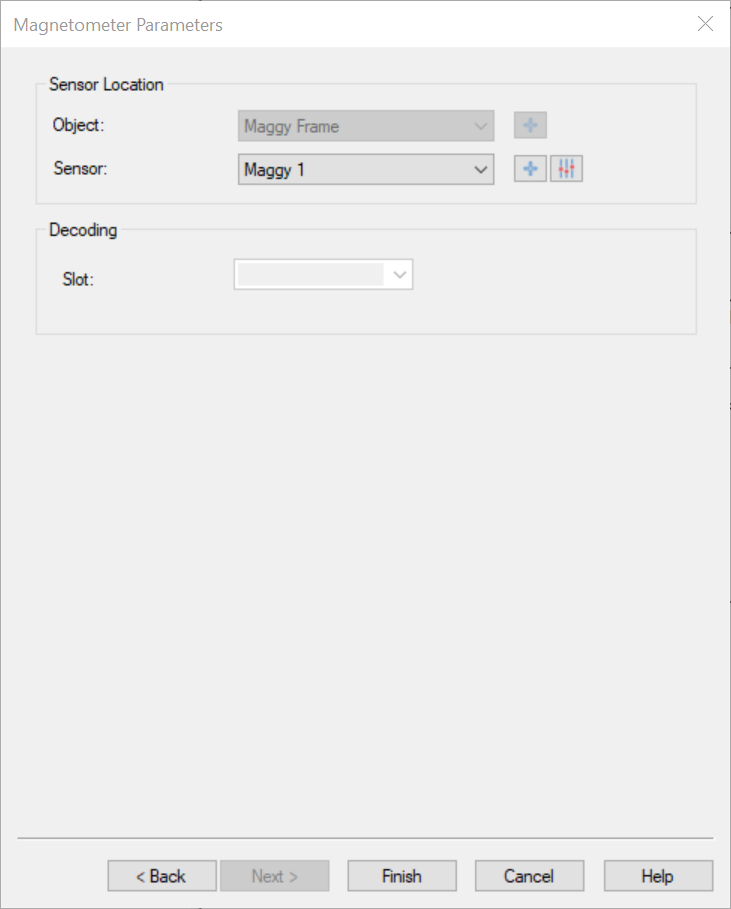

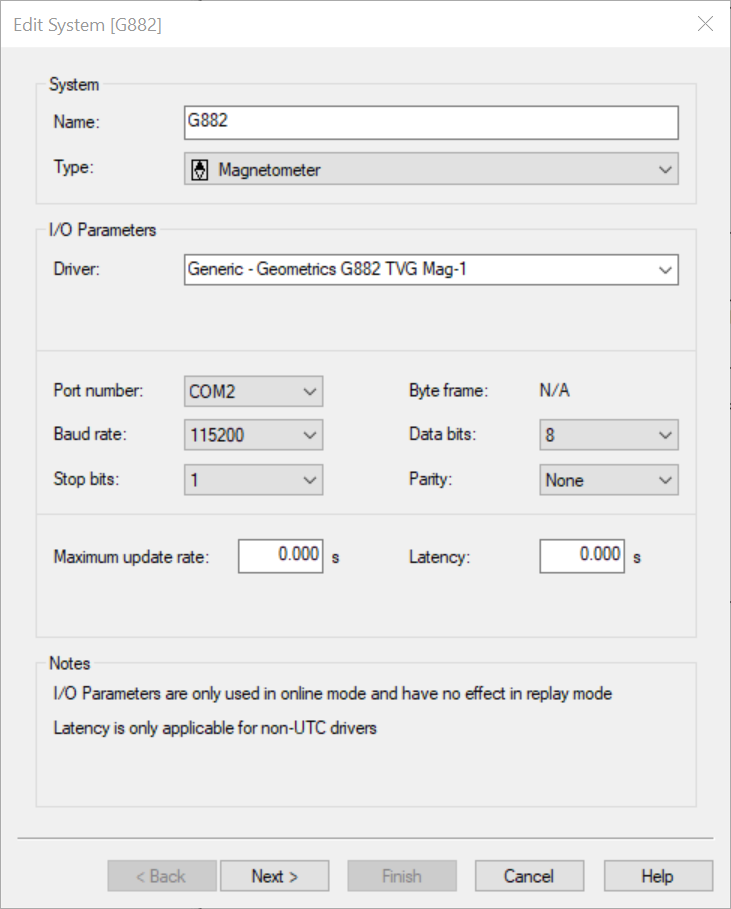

Page 1
Page 2

Underwater Sensor

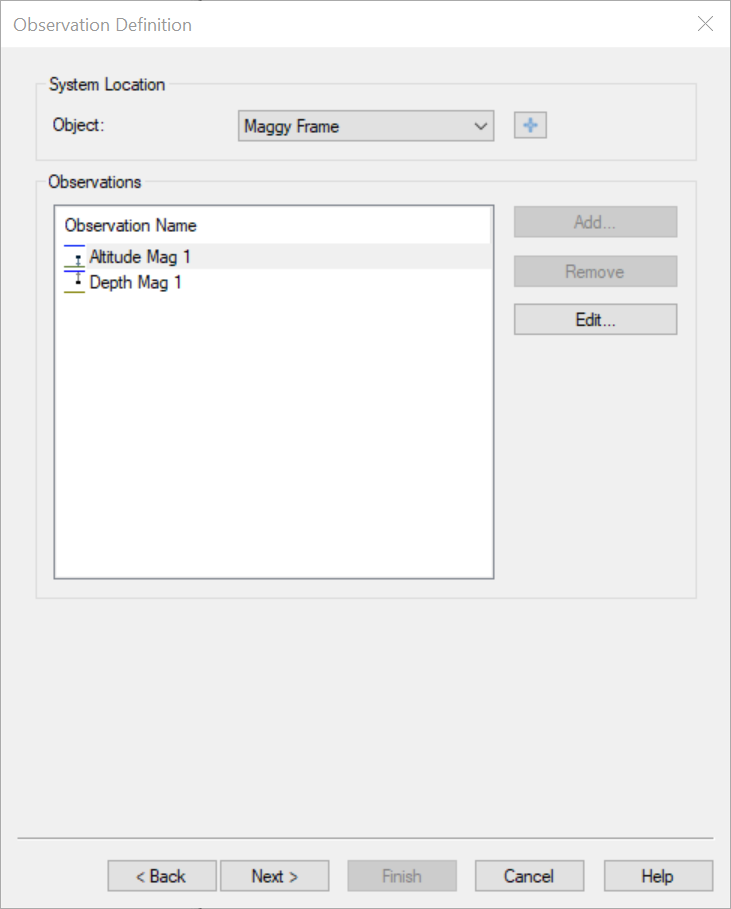

Page 1
Page 2

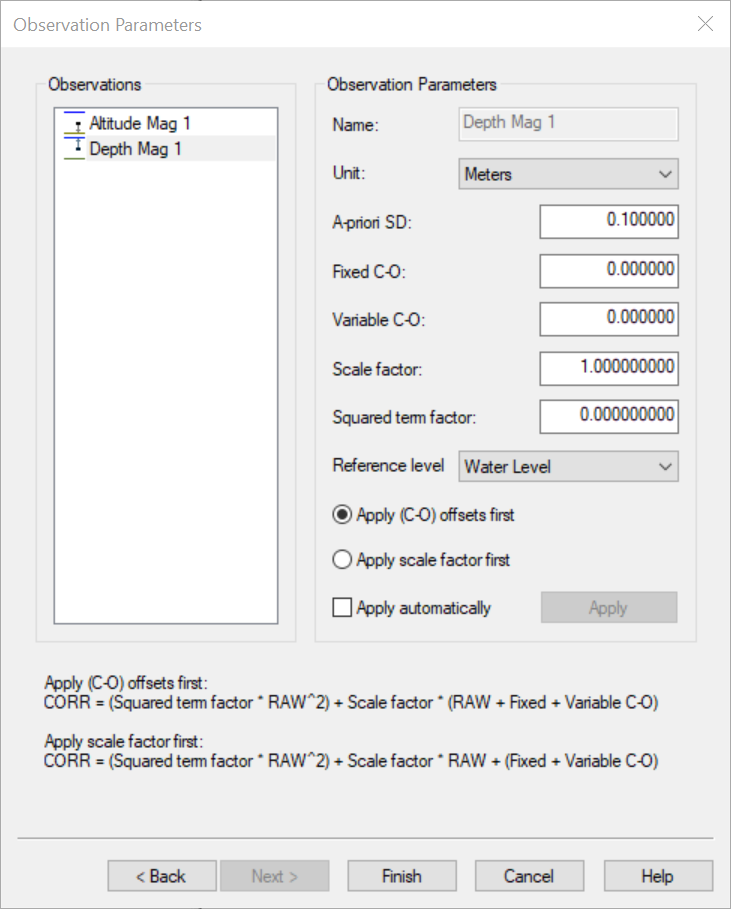

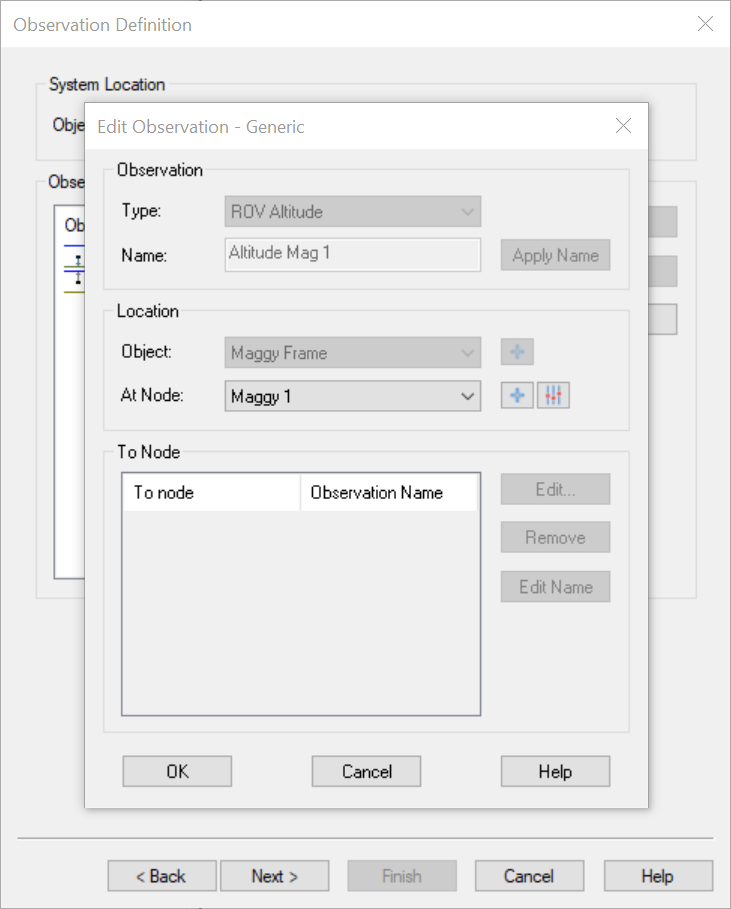

- Edit Altitude

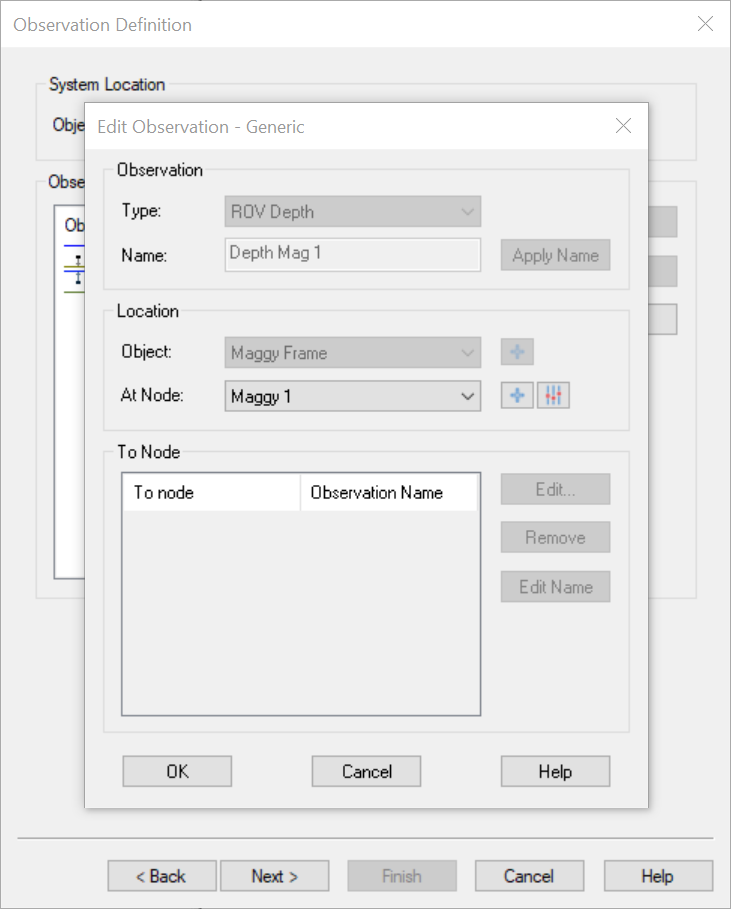

- Edit Depth

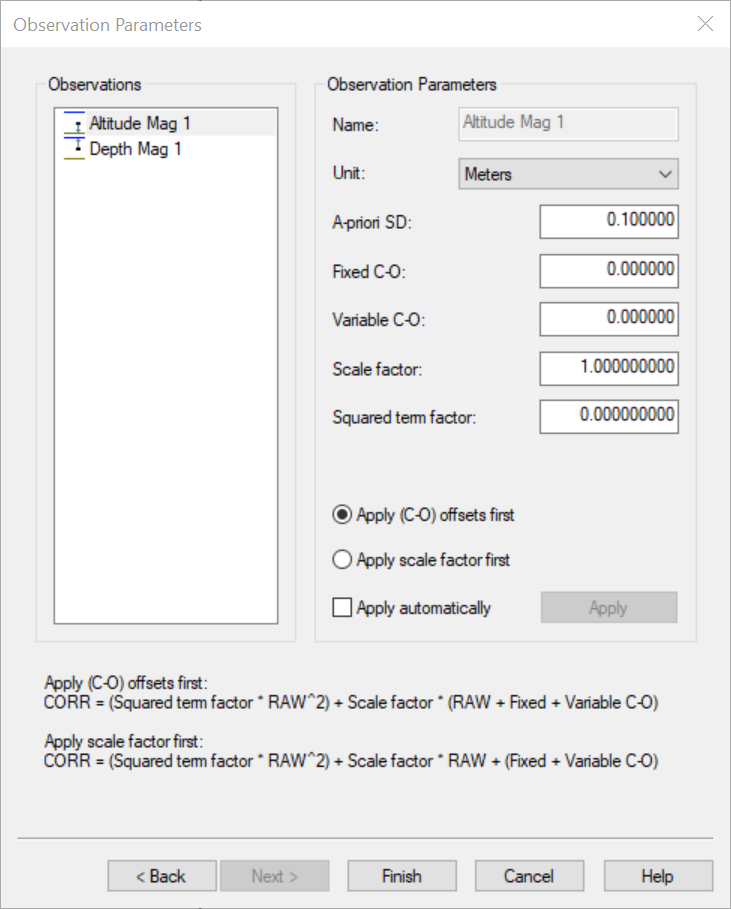

Page 3
- Altitude
- Depth

Singlebeam

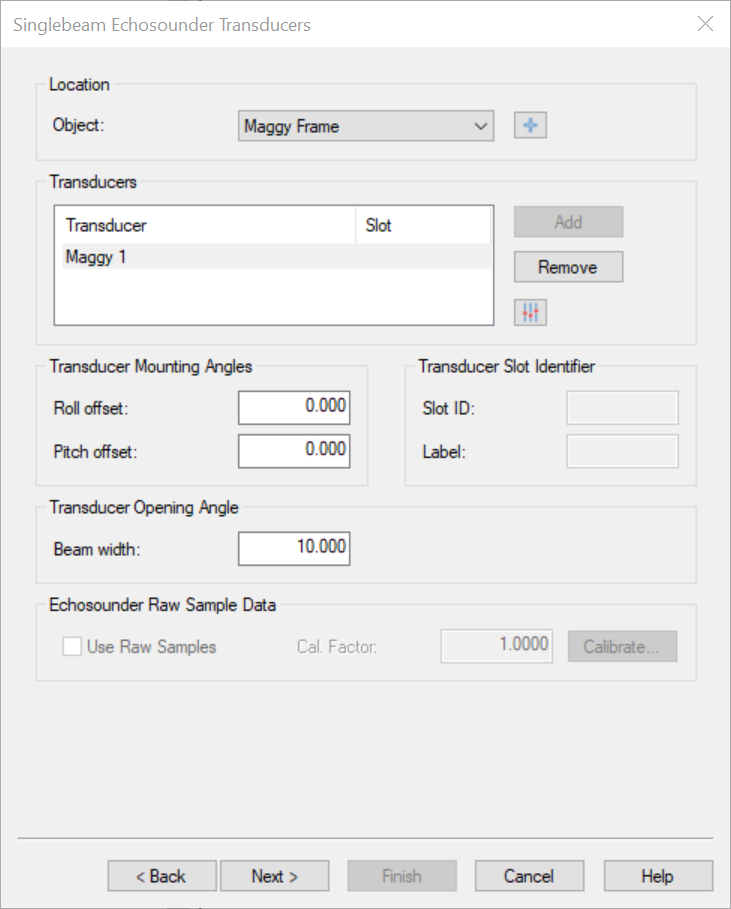

Page 1

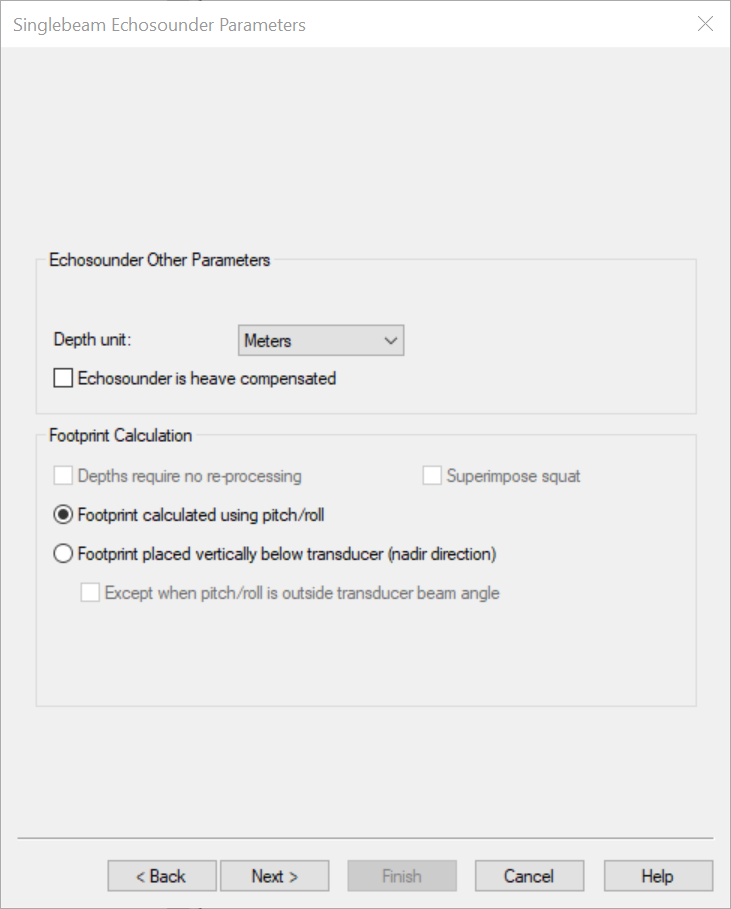

Page 2
Click Add to select the offset node of the Altitude sensor.
Page 3

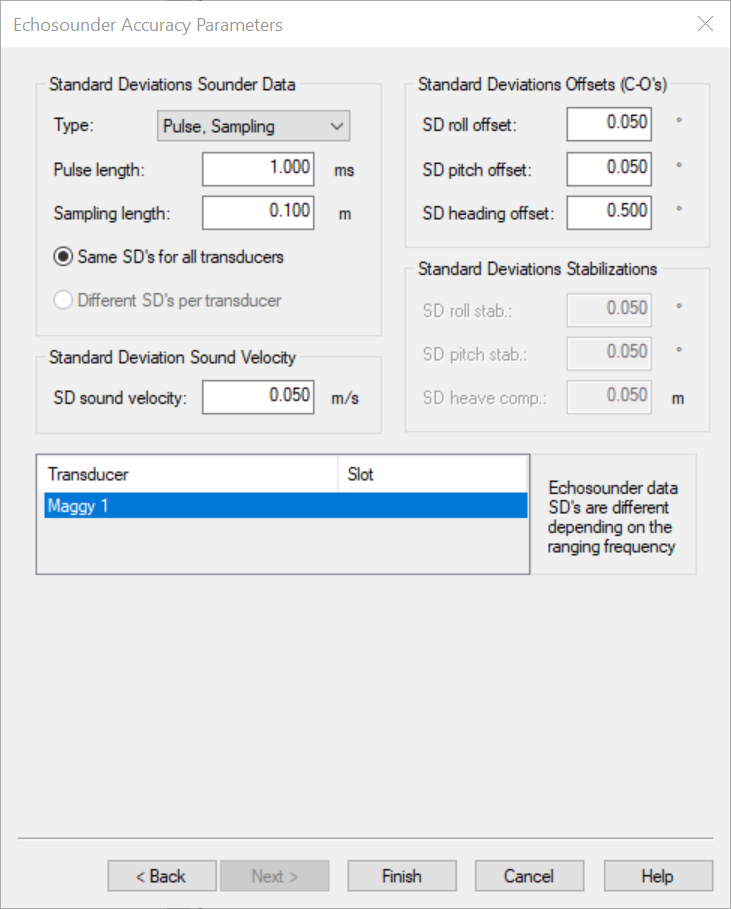

Page 4

Miscellaneous

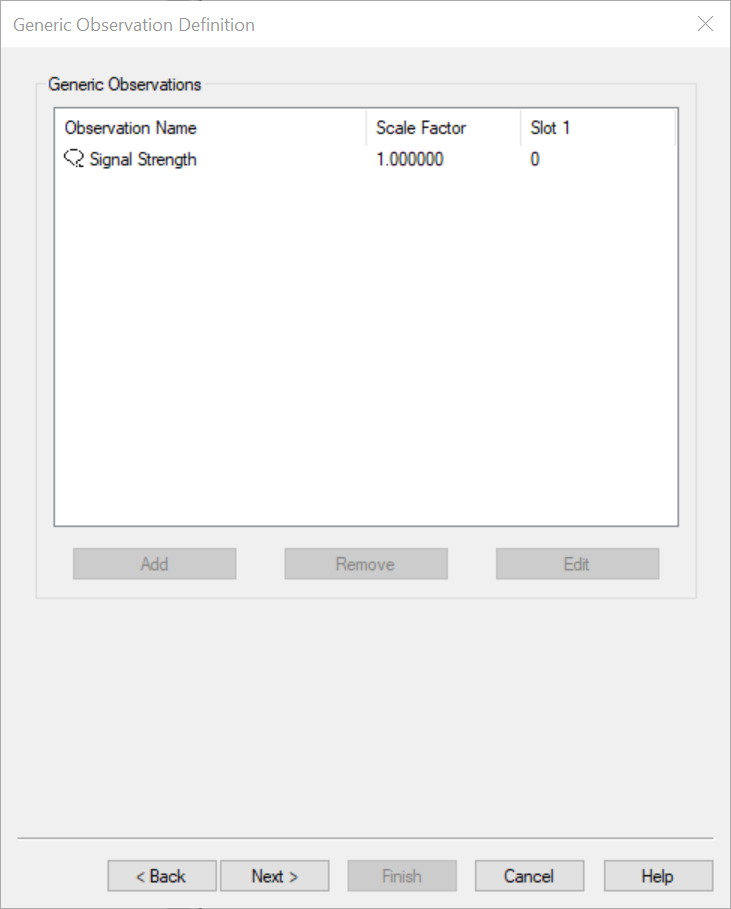

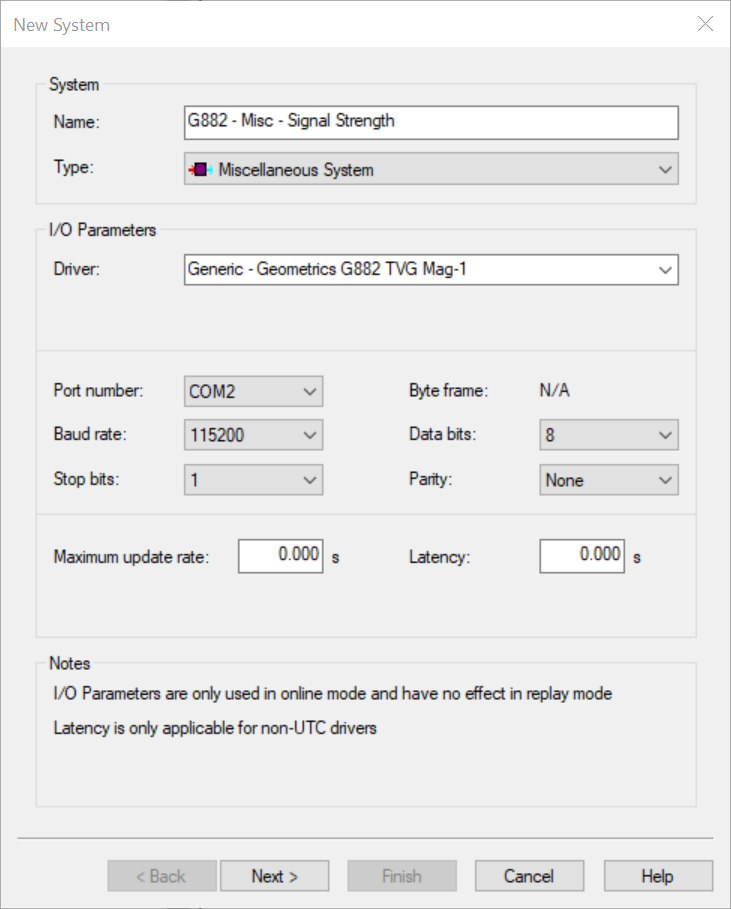

Page 1
Page 2

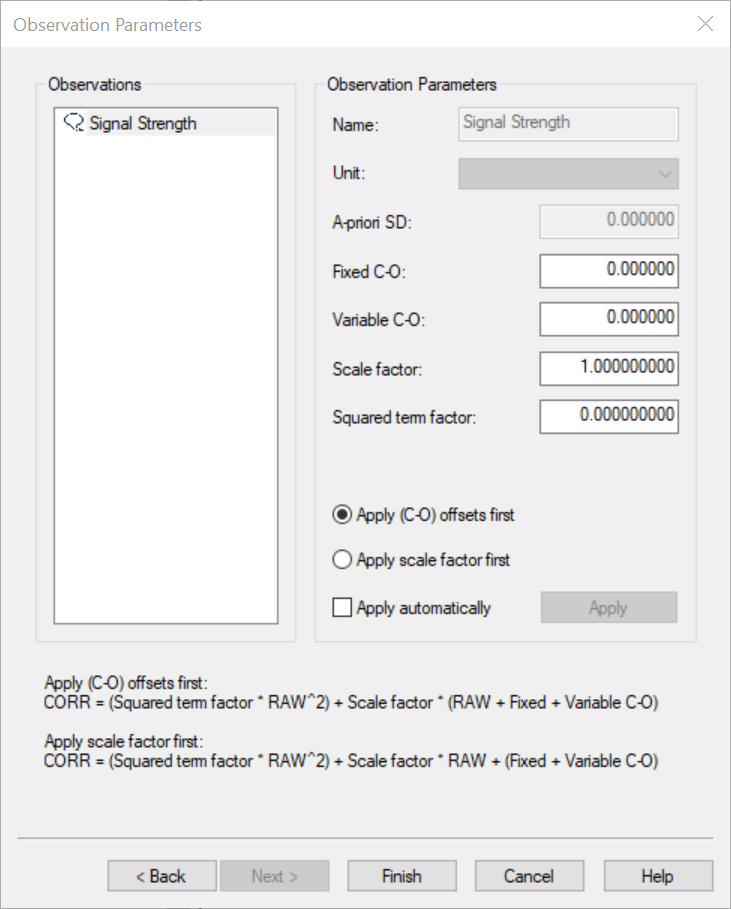

Page 3

Qinsy Online

Session Setup

Sounding Grid

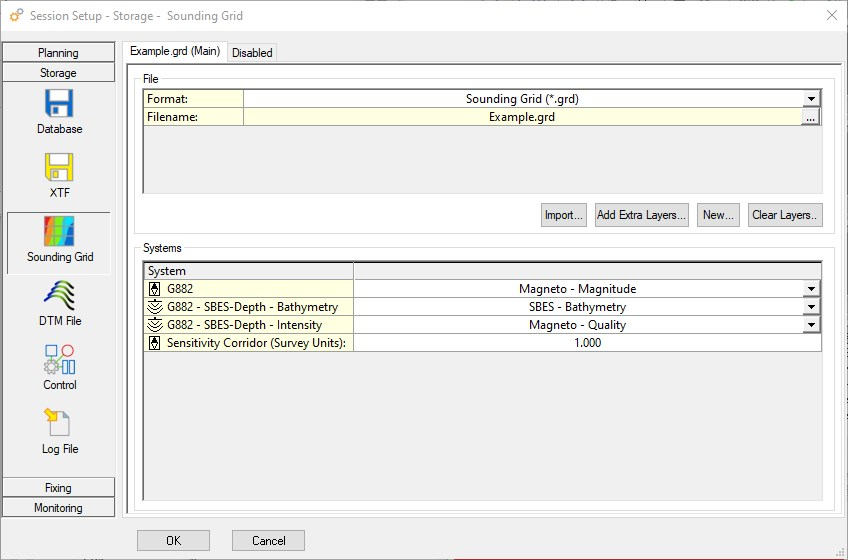

It is possible to save the following values in a Sounding Grid:

Magnetometer value;
- In order to improve visualization you can set a corridor width for this observation.
  More information in the Help (press F1) in the "Systems" section.
Magnetometer Quality;
Singlebeam Depth.

DTM file

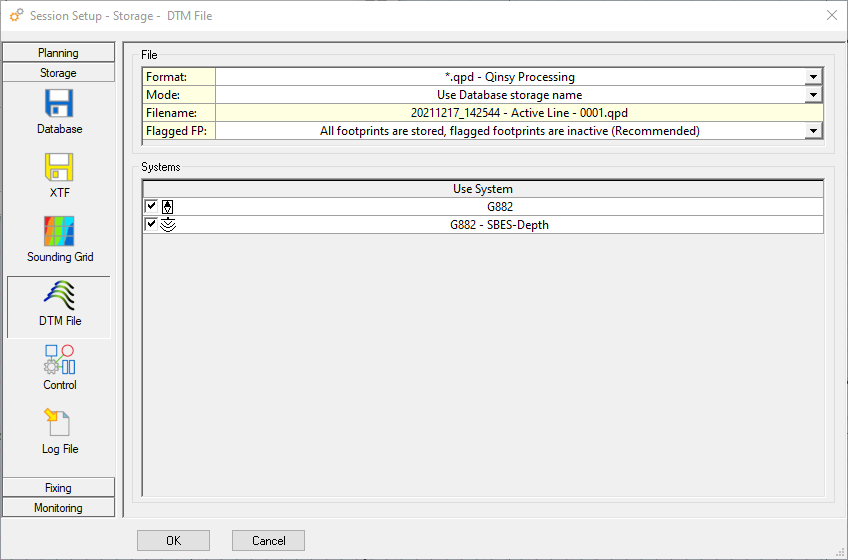

The data can also be saved in a QPD file.

Displays

The following displays could aid in showing Magnetometer data:

Navigation display
- Show Sounding Grid.
Timeplot display
- To show a short timeline of the data.
Generic display
- To show numerical data.
Alert display
- Set an alert on when data is no longer coming in.
Observation Physics display
- To check if the data is properly decoded by the driver.

An example can be found here: Release notes - Qinsy 9.4.4 - Improvements
