Depth SV (ASCII) - 34

Description

Driver to decode sound velocity profile data received during an on-line session from a Brooke Ocean Moving SVP.

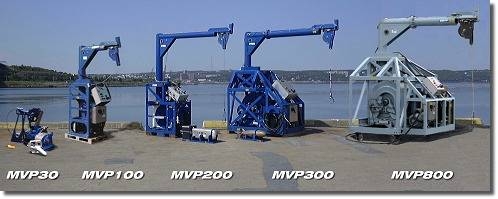

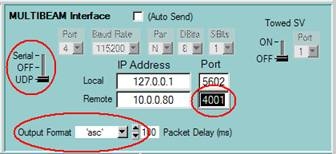

The MVP*™* Controller software is capable of outputting profile data in several formats. The user must select the correct format, i.e. the ASCII or EMS12 format, prior to sending data to Qinsy.

Two versions of the driver are available: a Serial version and a Network version (UDP).
The internal workings of the drivers are the same except for the data reception.

Driver Information

Driver	Depth SV	Interface Type	Serial and Network	Driver class type	Terminated
UTC Driver	No	Input / Output	Input	Executable	DrvBrookeOceanUDP.exe DrvBrookeOcean.exe
Related Systems	Depth SV Temp (AML or EM1000) - 34 Sound Velocity Profile System Depth SV (ASCII) - 34 Sound Velocity Profile System Depth SV (EMS00) - 34 Sound Velocity Profile System Depth SV Temp Cond (HIPAP or EM3000) - 34 Sound Velocity Profile System Depth SV Temp Salinity (EMS12) - 34 Sound Velocity Profile System Network - Depth SV Temp (AML or EM1000) - 34 Sound Velocity Profile System Network - Depth SV (ASCII) - 34 Sound Velocity Profile System Network - Depth SV (EMS00) - 34 Sound Velocity Profile System Network - Depth SV Temp Cond (HIPAP or EM3000) - 34 Sound Velocity Profile System Network - Depth SV Temp Salinity (EMS12) - 34 Sound Velocity Profile System
Related Pages

Coding Notes

Decoding Notes

When on-line and the driver receives new profile data from the Sound Velocity Profile System, two files will be created in the project's logfiles folder, both with extension *.SVP.

The first one is named "<System Name>.SVP".

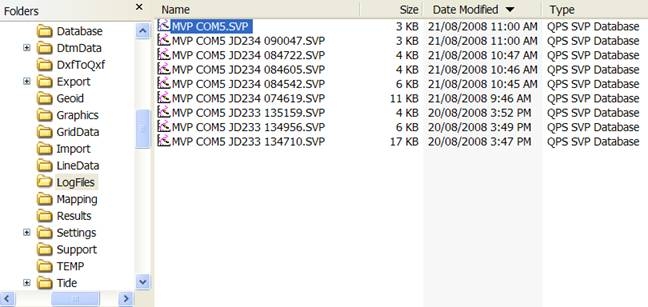

The second one is named "<System Name> JDxxx HHMMSS.SVP", where <System Name> is the name of the system, as entered in Database Setup, xxx the Julian day of the year and HHMMSS the UTC time.
For example:

The first file (without JD and time) will be overwritten when new profile data is received, so that this file will always contain the latest, up-to-date profile.

A user can always import a previously received profile by using the file import option, use icon and select a previously created *.SVP file.
File type must be "Comma Separated (depth, speed, temp, sal, cond, dens, pressure)".

Qinsy Config

Database Setup

Open your template database, using the Database Setup program, and add a new Sound Velocity Profile System.
Select the driver with the appropriate format (the same as being outputted by the MVP*™* Controller software).

Either:

or:

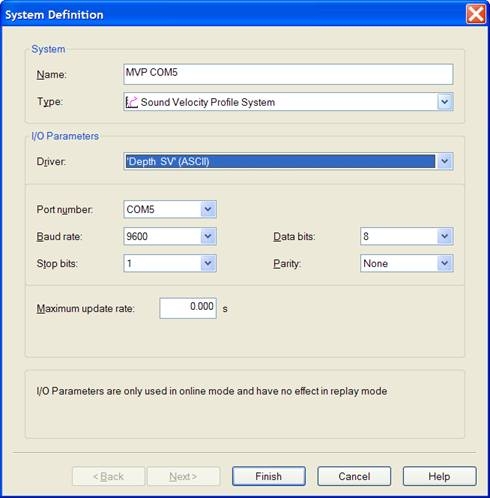

In case of the serial driver, leave the maximum update rate at 0.0 sec.

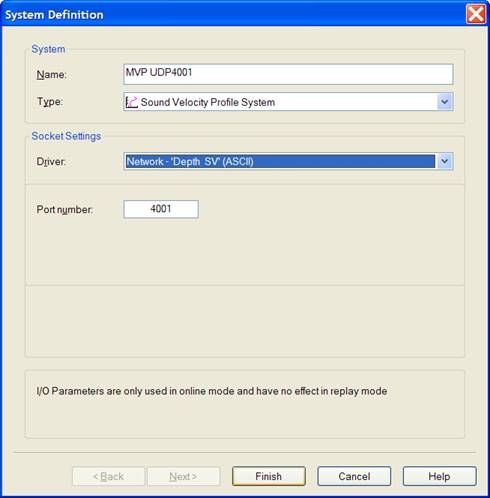

In case of the network driver, select the same UDP port number as defined in the MVP*™* Controller software, System Configuration.

Please refer to the MVP*™* Controller software manual how to operate and set up the MVP.

Qinsy Online

Online

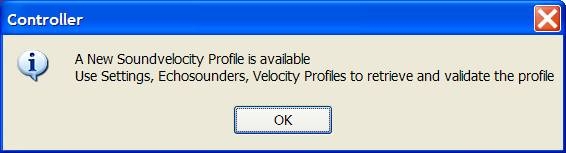

As soon as a new profile is received by the driver, the Controller is informed and a message box will pop up to inform the user:

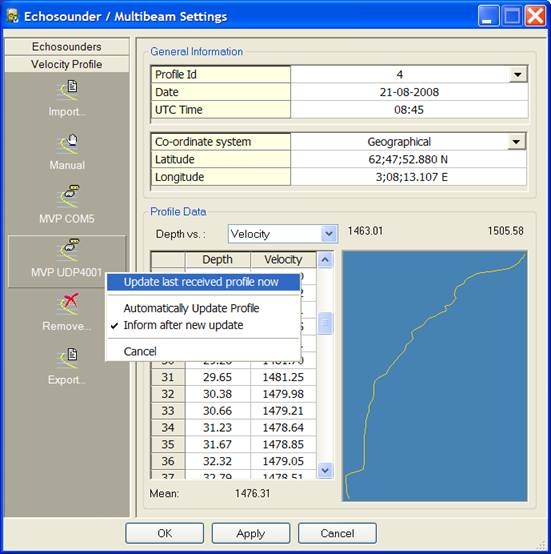

Select in the Controller the Echosounder Settings from the Settings pull down menu, and locate in the Velocity Profile group the SVP system as defined in the Database Setup.

Click on the icon, and a popup menu with three options becomes available:

Update last received profile now	Select this option to import the last generated profile. This option is recommended because prior to pressing the OK or Apply button, the user may validate the profile first.

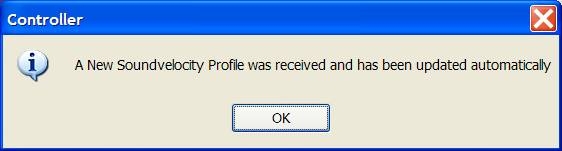

Automatically Update Profile	Enable this option in order to accept the new profile immediately, without any validation. All other Qinsy processes are also informed automatically. This option is only recommended when the performance of your SVP sensor is good, i.e. no spikey data in the profile. *If the Controller was busy with a recording session, the recorded database will be split*.
Inform after new update	When this option is enabled, a message box will pop up in front of the Controller's view, informing the user about the new profile.
