Qinsy 9.7.11 - Improvements

System - Timing - NMEA ZDA - Add support for UDP Multicast

System - GNSS - $PTNL, AVR - Add support to decode the range between GNSS antennas

Added support for Trimble Proprietary NMEA message “$PTNL,AVR”.

Decoded fields from this AVR message will be Yaw, Tilt, Roll, Range (baseline), PDOP, GPS Quality and Nr of SV used.

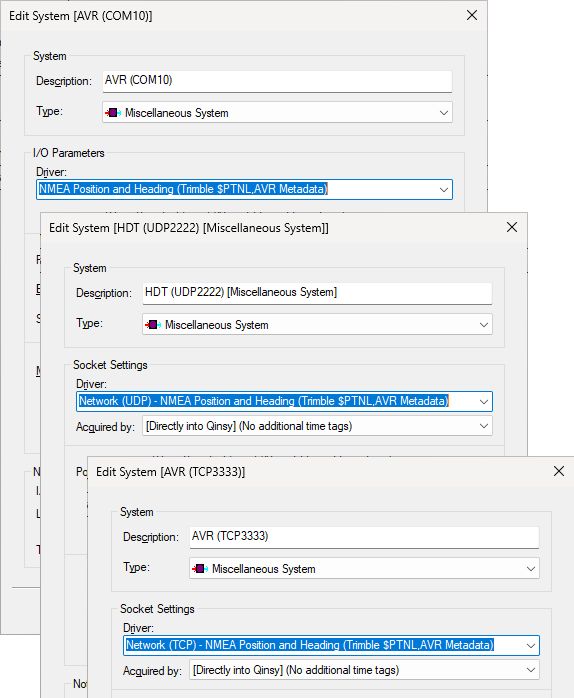

Each value can be decoded as a generic observation: just add a Miscellaneous System to your template setup and select driver “NMEA Position and Heading (Trimble $PTNL,AVR Metadata)“.

Please refer to the driver’s documentation for more details.

• NMEA Position and Heading (Trimble $PTNL,AVR Metadata) - 23

• Network (UDP) - NMEA Position and Heading (Trimble $PTNL,AVR Metadata) - 23

• Network (TCP) - NMEA Position and Heading (Trimble $PTNL,AVR Metadata) - 23

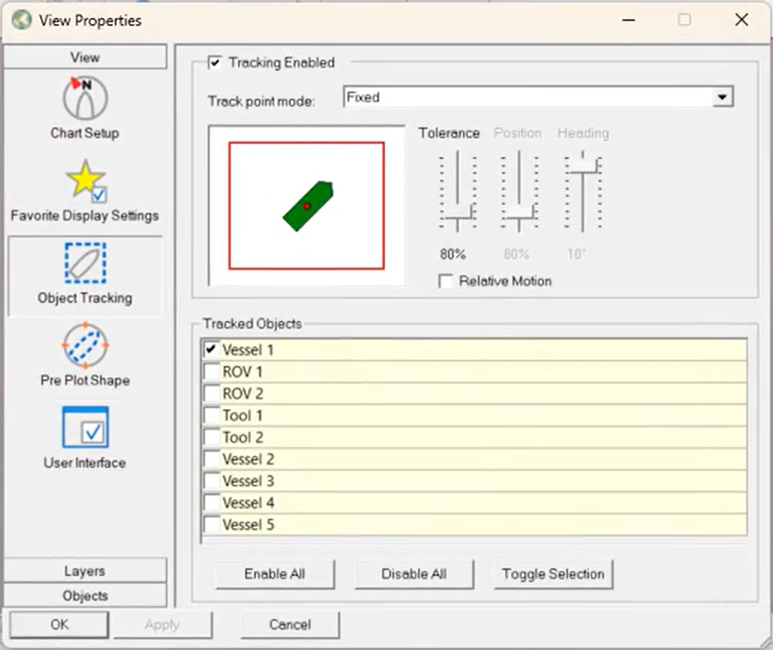

Display - Navigation - Object tracking has all objects on

The following improvements were made.

• Make object selection part of the dialog bigger;
  So you can see more objects simultaneously.

• Add buttons for Select All and Deselect All;

• Check if multi-select works or can be enabled.

• Only enable the main vessel when creating a new Navigation display.

Online - QGUP files containing only older data should be moved into a new Outdated folder. Survey Log should also reflect this.

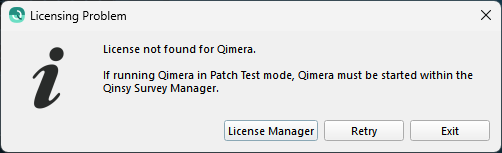

Console - Qimera - Starting without a valid license - Message should be more clear

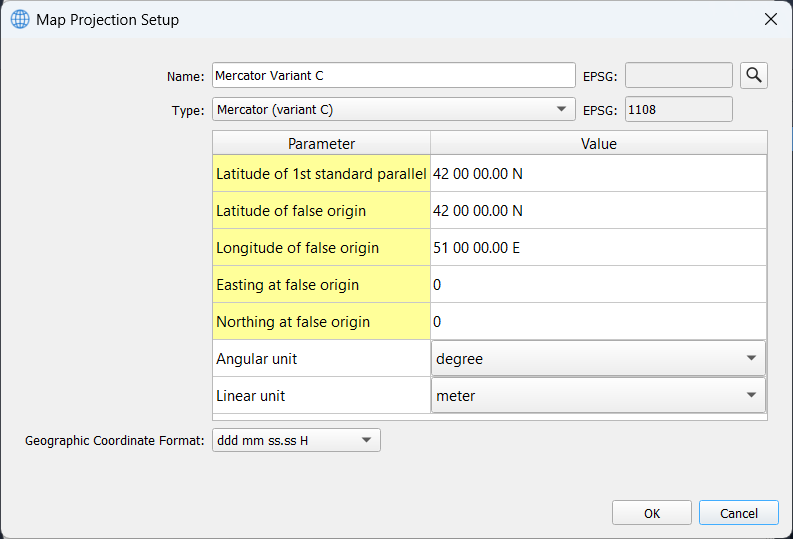

Geodetics - Mercator - New variant C to replace deprecated variant C
