Profile Display

The Profile Display provides a slice view of the dredger and the sounding grid displayed from four different angles (starboard, port, aft and front).

IMPORTANT: In order to display objects in the profile display a longitudinal profile shape and a cross profile shape through the CoG of the vessel is required. These shapes are defined in the Database Setup program when creating object shapes. An Aft view may also be useful.

The following directions assume a Profile Display has already been created. Refer to BHD - Online Displays for details about creating a Display Set and adding new Displays.

Take the following steps to configure the Profile Display; only a few important settings are discussed here. For more detailed information refer to the Online Help.

Profiles
Objects	Terrain	Measurements	Lines	Sounding Grid
View
Setup	Scale	Grid
Settings
Orientation - heading reference		Origin - view perspective (Stb., Port, Front, Aft)

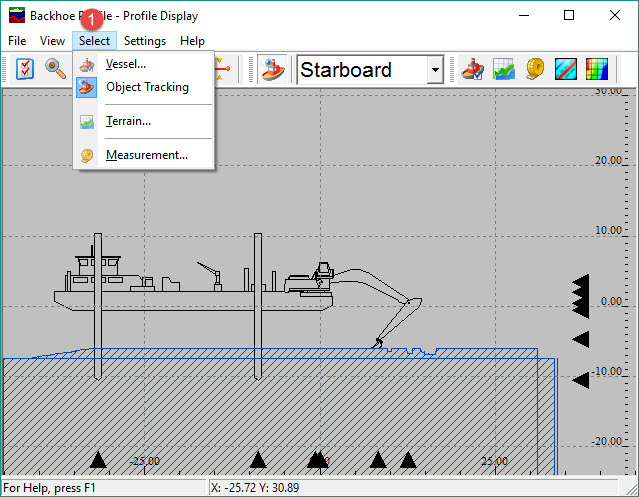

The initial view should look something like this:

Notes:

The dredger is initially positioned centered around the CoG (Reference Point) of the first object defined in the template database, in this case it is the CoG of the Boom. Centering is performed in both the horizontal and vertical directions. You can change the focus to the CoG of another object such as the pontoon or bucket.
The first layer in the sounding grid is automatically loaded on creating the display; in this case the upper blue line with hatching below.
The Design layer is also loaded automatically. This is the horizontal line below the active sounding grid layer.
The black arrows at lower and right edges are pointers to the CoG of each defined object.

The display can be customized as follows:

View Properties - Profiles

Objects

From the Select pull down menu, choose Vessel.

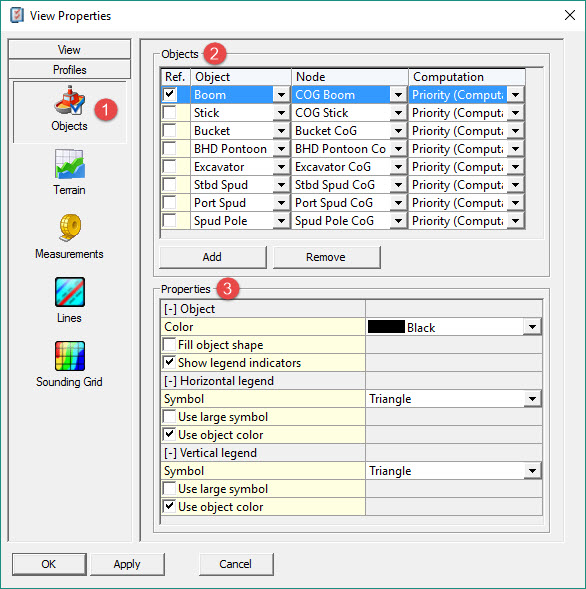

The View Properties dialog opens. Click on the Objects button .

Selecting any other option in the Select pull down menu also opens the View Properties dialog with the focus on a different page.
Selecting View Properties from the View menu opens the same dialog.

All the Objects defined in the template database are listed.

Choose a reference Object, and the node on that object, on which to center the main window. Coordinates come from the computation selected.
Make selections and parameter value entries to set Object Properties. These can be set for any Object that is currently highlighted.

Properties
Object
Color	Select a Color for the object highlighted in the panel above, in this case the Boom.
Fill object shape	Select if you want to fill in the Object shape with its set color.
Show legend indicators	Small indicator symbols along the lower horizontal and the right hand vertical indicate the horizontal and vertical positions of each Object in the Profile Display. When switched on the following parameters are shown:
Horizontal legend
Symbol	The selected Symbol is placed at the bottom of the display indicating the horizontal position of the object.
Use large symbol	For ease of recognition.
Use object color	Checked on: use the Color as set for the Object above. Checked off: select a Color in the line below.
Color	Select a color for the legend indicator symbol.
Vertical legend
Symbol	The selected symbol is placed at the right side of the display indicating the vertical position of the object.
Use large symbol	For ease of recognition.
Use object color	Checked on : use the Color as set for the object above. Checked off : select a Color in the line below.
Color	Select a Color for the legend indicator symbol.

Press Apply to see the effects of changes without having to leave this menu.

Return to: top of page.

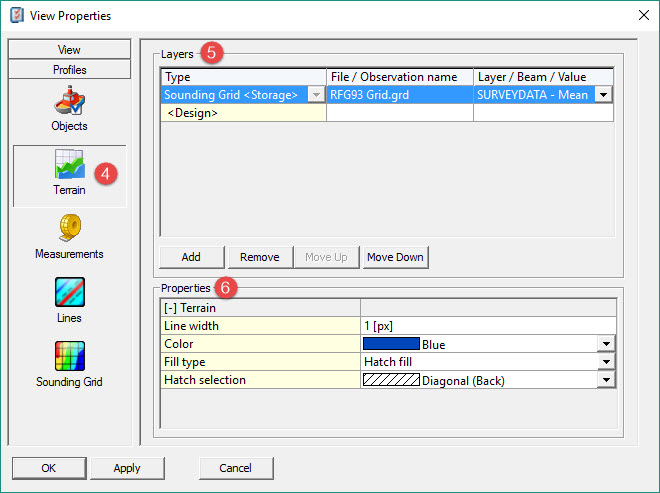

Terrain

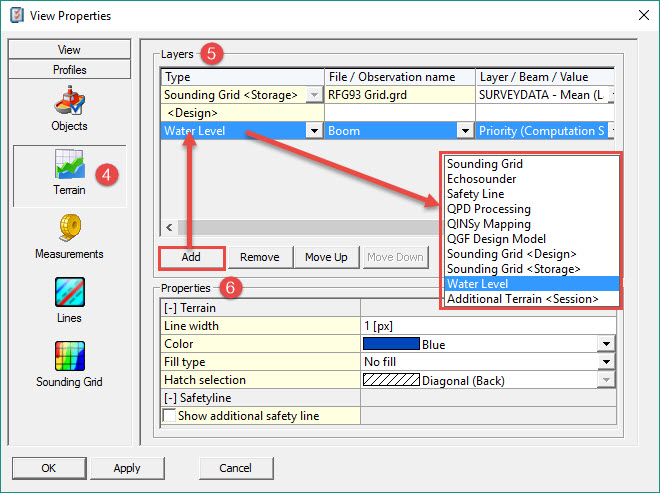

Click on the Terrain button

which changes the parameters in the right pane.

By default the first defined layer in the active sounding grid is loaded as a terrain.

So too is the Design model if it has been defined as a layer and filled with model data.

Use the

button to load additional terrains. For each terrain select the source file and layer.

These are the terrains available for selection:

Layers

Type

Sounding Grid - Select the sounding grid to use from the standard Windows browse dialog. Then select the correct layer in the next column.
If a sounding grid was selected in the 'Controller's Session Setup - Storage', the first defined layer will automatically be shown here, named Sounding Grid <Storage>.
When under-dredge and/or over-dredge is used, this is also shown.
If necessary remove the sounding grid chosen in the Session Setup here by using the

button.

Echosounder - Single observations from echosounders can be displayed in real-time. This enables you to analyze the depth readings in comparison to a previously created terrain.
When selecting a Multibeam system, the swath must be set.
Using direction starboard or port, the readings will show as a measured terrain when drawn as lines.

Safety Line - It is possible to add a nominal safety line. A line is displayed at the manually entered depth (in survey units).
This line can be used in case no design is available and a depth needs to be displayed.

QPD Processing - Select *.qpd processed files. Multiple files can be selected.

QINSy Mapping - Select a *.pro file. (This is the old format. It can still be used, but will be phased out. Use the *.qgf format instead.) It is only possible to select one file at a time, but you can add more.

QGF Design Model - Select a *.qgf file. (This is the new format.)

Sounding Grid <Storage> - If a sounding grid was selected in the 'Controller's Session Setup - Storage' it will automatically be shown here.

Water Level - Mean Actual Water Level, i.e. water surface, is shown.

Additional Terrain <Session> - A terrain from the Controller's Session Setup menu 'Additional Terrains' can be selected here.

The terrains are displayed in the order in which they are added; the bottom one in the list is displayed on top of earlier entries.

Highlight the selected Type and select the properties for each layer separately.

Terrain
Line width	Enter a Width in pixels.
Color	Select a Color.
Fill type	Choose a type: Solid fill - Area below selected layer Type will be filled completely with the selected color. No fill - Only a line will be shown to indicate the terrain. Hatch fill - Area below selected layer Type will be filled with hatch lines in the selected color. Color banding - Only available for Sounding Grids. Depths in the Profile Display will be shown in their own color ranges, similar to depths in a sounding grid shown in the Navigation Display.
Hatch selection	This option is only available when the fill type was set to Hatch fill.
Safetyline	Not available for layer type Sounding Grid.
Show additional safety line	For each selected layer an Additional Safety Line can be added. (Except for Sounding Grid.) Largely unrelated to dredging, this is mainly used during a bundle tow, to indicate a safe depth for the bundle.
Offset value	Enter the Offset Value in meters and the Additional Safety Line will be shown offset from the selected layer. A positive offset gives a line above the selected terrain. A negative value gives a line below the selected terrain.

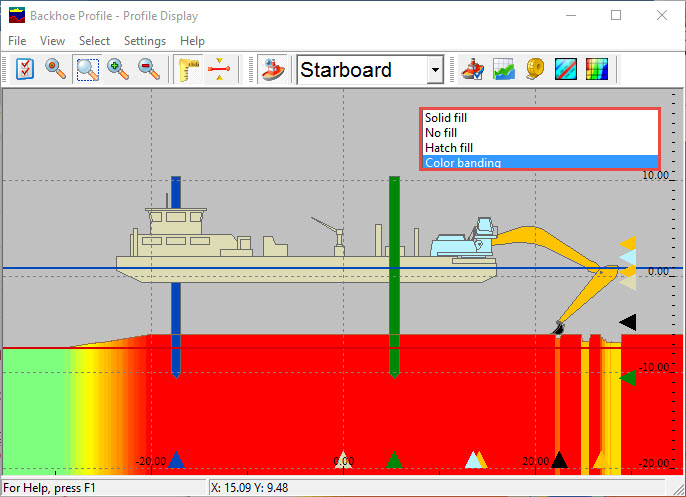

Color Banding	This option is only available when the layer type Sounding Grid is selected. Depths in the Profile Display are shown in their own color ranges, similar to depths in a sounding grid shown in the Navigation Display.
Active layer	Select a Layer.
Active attribute	Select which values to show.
Reference layer	Select a Layer, if needed.
Reference attribute	Select which values to show.
Mode	Set which results to show: a difference layer or a cumulative layer.
Echosounder	Only when the layer types Echosounder or QPD Processing were selected will this option be available.
Show starboard & port view	Show Starboard and Port View of recorded data. When switched off, no data is shown. Only available when Layer Type was set to Echosounder.
Use nadir beam	Use the beam in the middle of the array to show depths when using a multibeam echosounder. Only available when Layer Type was set to Echosounder.
Time span	Define how much echosounder data should be shown in the Profile Display (in seconds).

Return to: top of page.

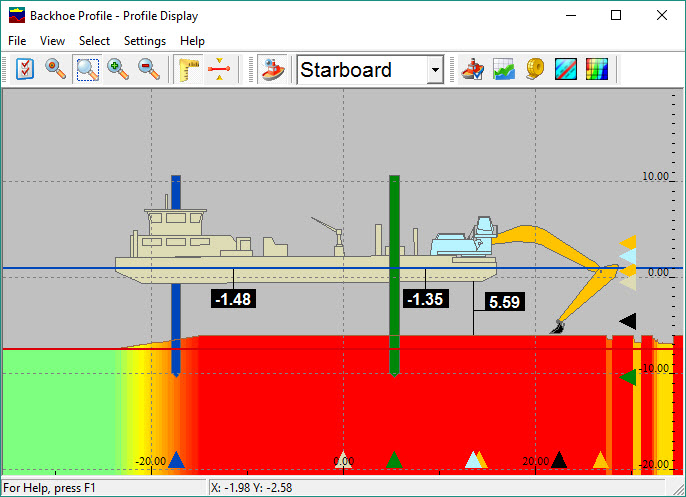

Measurements

Measurements are calculated from a node to a profile; they are not raw measurements.

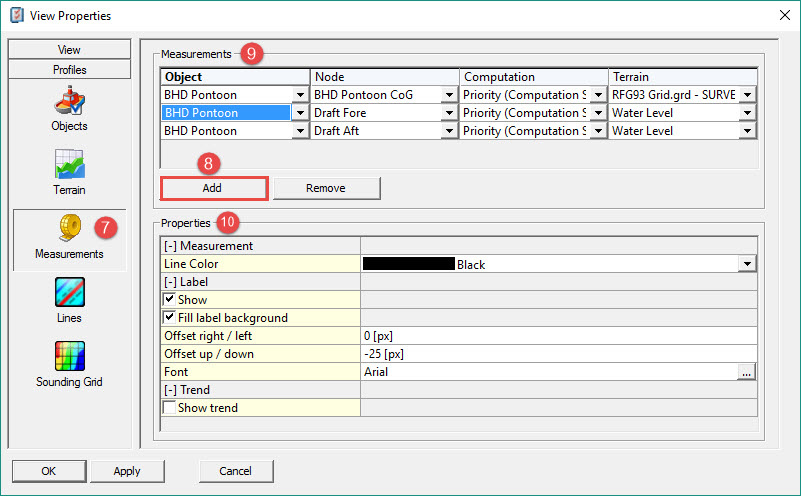

Click on the Measurements button

.

Click on

to create a measurement.

Select Object, Node, Computation and Terrain (as defined under the Terrain button) upon which the computed measurement is based.

If a mapping file is selected as terrain under the Terrain menu, the active layer is set there. Only that layer is displayed here.
If a different layer is required, set it under Terrain again.

A mapping file will slow down display performance.

Make parameter value entries and parameter selections to define properties for each measurement individually.

Measurement
Line Color	Select the Color to use for the measurement line drawn from node to a layer in the terrain, or to water level.
Label
Show	When you choose to Show the labels the next menu items appear:
Fill label background	The Label is filled and the text becomes white.
Offset right / left	When no Offsets are entered, the label is drawn halfway down the measurement line (in vertical and horizontal direction). To change the Label location use an offset: -ve moves the label left, +ve moves it right.
Offset up / down	To change the Label location use an offset: -ve moves the label down, +ve moves it up.
Font	The Font of the label (font, font style, size and color) can be changed using the browse button .
Trend	Not applicable to Backhoe Dredging operations.

Use the Apply button to see the effects of changes in the Profile Display without leaving this menu.

Return to: top of page.

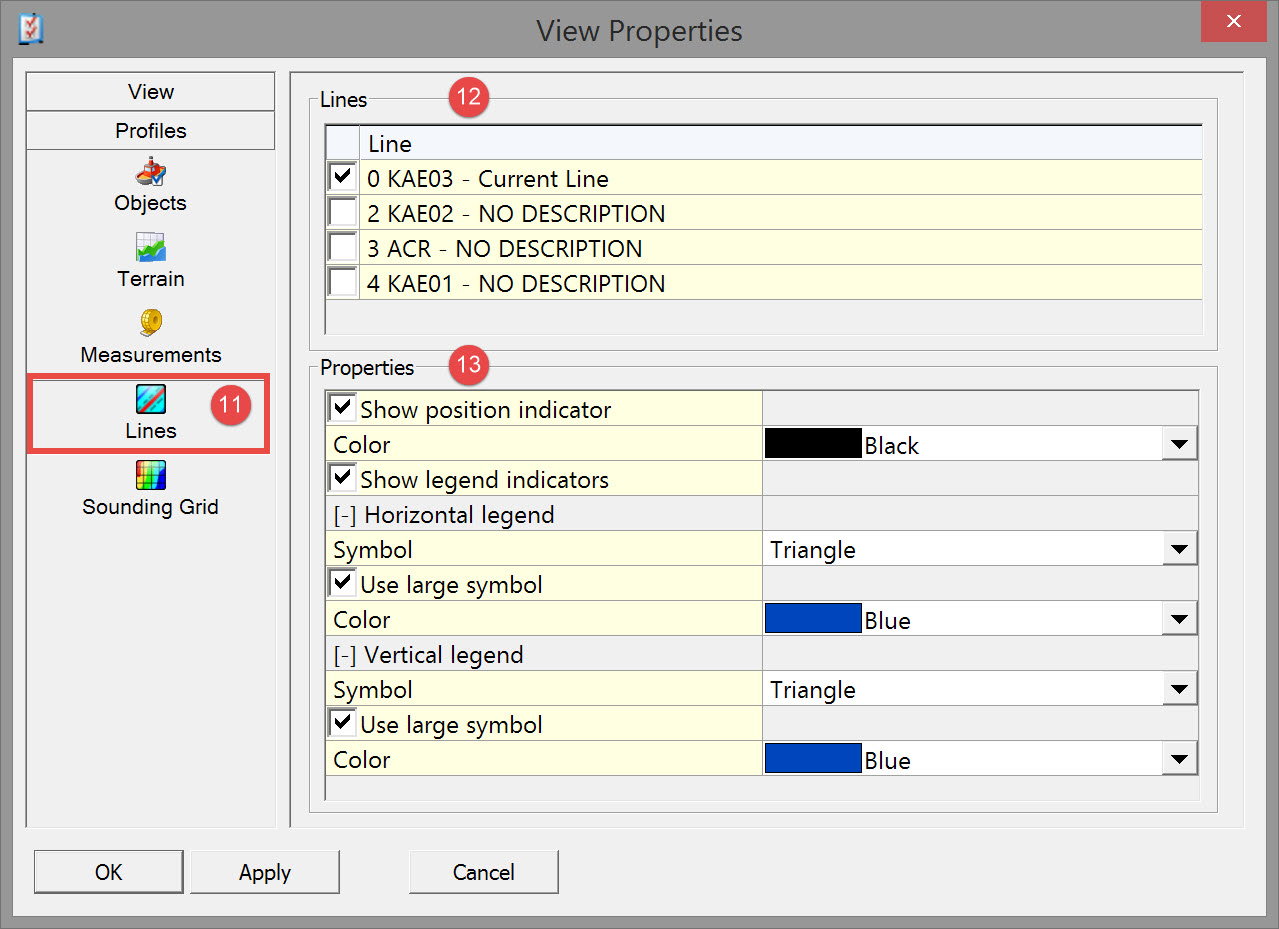

Lines

Click on the Lines button

.

The current active survey Line is listed as well as any Additional Mainlines defined and activated in Session Setup - Planning.

Adjust the Properties for each line separately in the Properties pane.

Properties
Show position indicator	This option shows the position of the selected line as an open dot. The line can only be seen when sailing perpendicular to it. Use Settings - Origin - Front/Aft/Starboard/Port to get it in view. When the line has not been given a height, it will be shown at 0 meters.
Show legend indicators	Indicator symbols in the legend show the position of the line. The following parameters are shown only if Show Legend Indicators is checked
Horizontal legend
Symbol	Select a Symbol from the drop down menu. This symbol appears in the legend at the bottom of the Profile Display.
Use large symbol	Use this for easier recognition. Only available when Triangle symbol was selected.
Color	Select a Color for the symbol.
Vertical legend
Symbol	Select a Symbol from the drop down menu. This symbol appears in the legend to the right side of the Profile Display.
Use large symbol	Use this for easier recognition. Only available when Triangle symbol was selected.
Color	Select a Color for the symbol.

Press Apply to see the effects of changes without having to leave this menu.

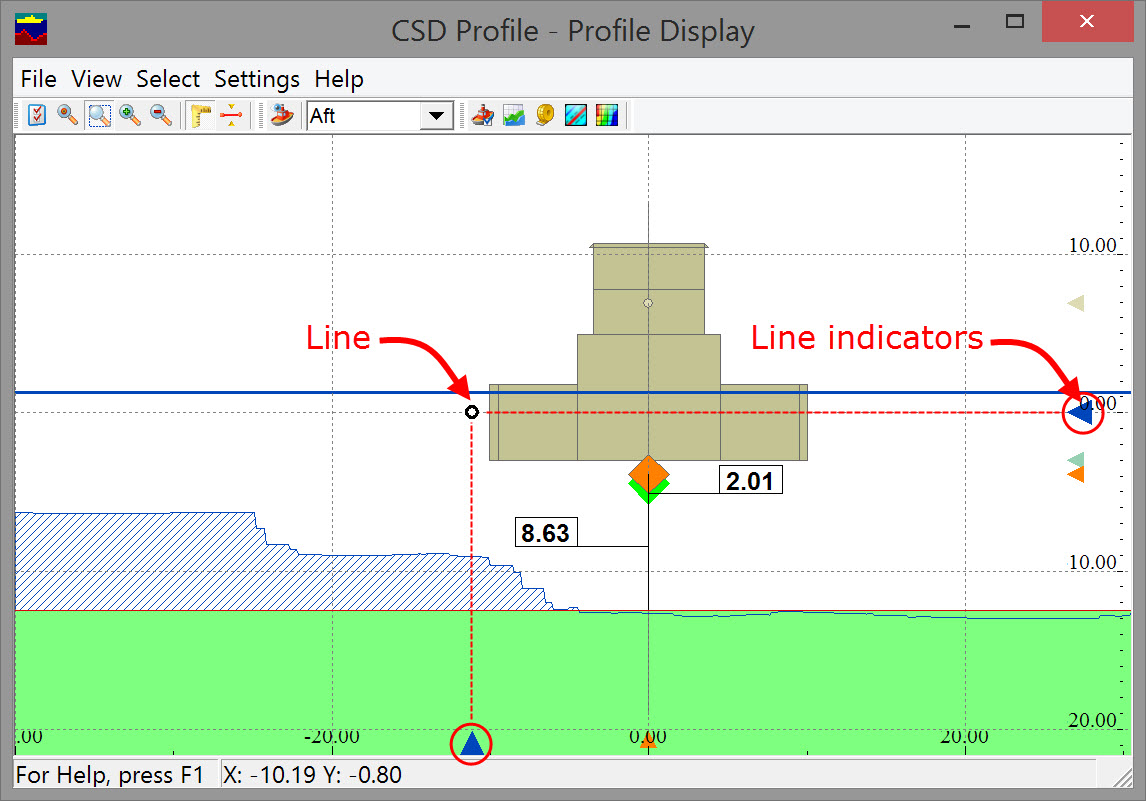

A line will be shown in the display as an open dot. When it has not been given a height, it will be shown at 0 meters.

Return to: top of page.

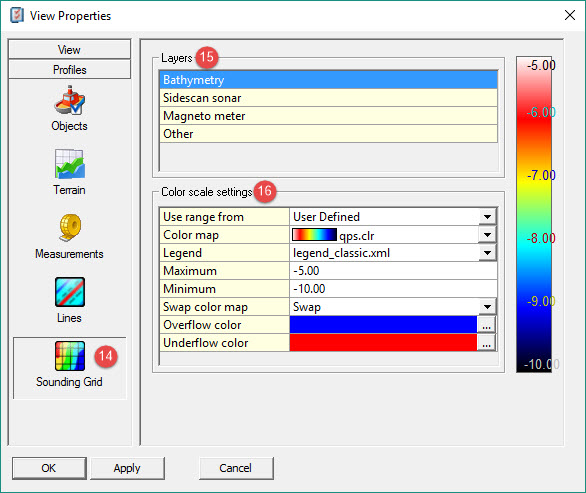

Sounding Grid

If a sounding grid is used as terrain, enter parameter values and make selections to determine how to show it.

Click on the

button.

Click on the Layer for which properties are to be set.

These are the data-filled layers which were defined in Session Setup - Storage'. The active layer set in the Controller - Settings - Session Setup - Sounding Grid is also active here.

Make parameter value entries and parameter selections to define properties for each layer individually.

Color scale settings
Use range from	Project Settings - Defined in the Console's Global Settings. User Defined - Enter your own values. Color Map - Each Color Map has associated Minimum and Maximum values that are loaded. (see the Color Scale Editor program located in the lower pane of the Console).
Color map	Can only be selected if either User Defined or Color Map were chosen in the previous line.
Legend	Can only be selected if either User Defined or Color Map were chosen in the first line.
Maximum and Minimum	Are set automatically when Project Settings was selected. Otherwise they can be entered manually.
Swap color map	The colors are reversed. In the example above, white was the deep color before the Color Map was swapped.
Overflow and Underflow Color	Choose the colors to use when data falls outside the entered Maximum and Minimum ranges. Use the button to modify these colors.

Press Apply to see the effects of changes without having to leave this menu.

Return to: top of page.

Return to: BHD - Online Displays.

View Properties - View

Setup

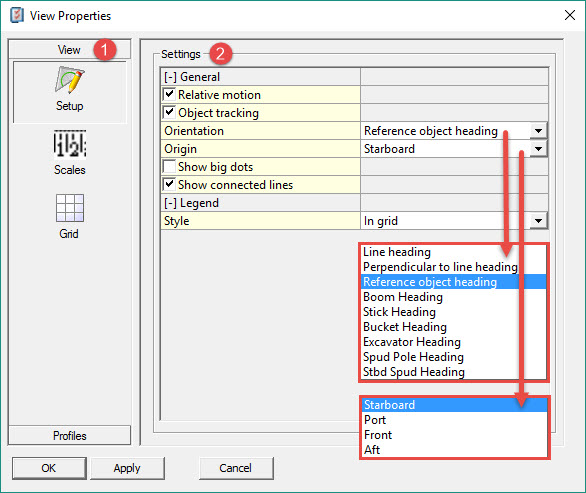

Click on the 'View' button and then on the Setup button

.

Select parameters to determine object tracking.

General
Relative motion	When Relative Motion is on, the object remains in the center of the display; only the terrain is moved. When Relative Motion is off, the terrain is stationary and the vessel moves across the display and may disappear.
Object tracking	Option only available when Relative Motion has been activated. However the Object Tracking button in the toolbar can be used at all times while on-line. When Object Tracking is on, the object sails to the edge of the display and is then placed back in the middle of it. When Object Tracking is off, the terrain is stationary and the vessel moves across the display. But, since Relative Motion is switched on to access this setting, the vessel will remain in the middle of the display. When the vessel has sailed outside the display and you can not find it with the zoom functions, turn Object Tracking on to retrieve it.
Orientation	The object can be viewed relative to a line heading or to the heading of any of the calculated objects/nodes.
Origin	Select which view of the object is displayed in the main panel. The view is projected onto the line if Orientation was set relative to a line heading.
Show big dots	The nodes are shown as Big Dots for easier identification.
Show connected lines	The data points from the echosounder are Connected with a line.
Legend
Style	By default the Legend is drawn outside the grid.
Legend	Select a color for the Legend. (Only available when drawn outside the grid.)

Press Apply to see the effects of changes without having to leave this menu.

Scales

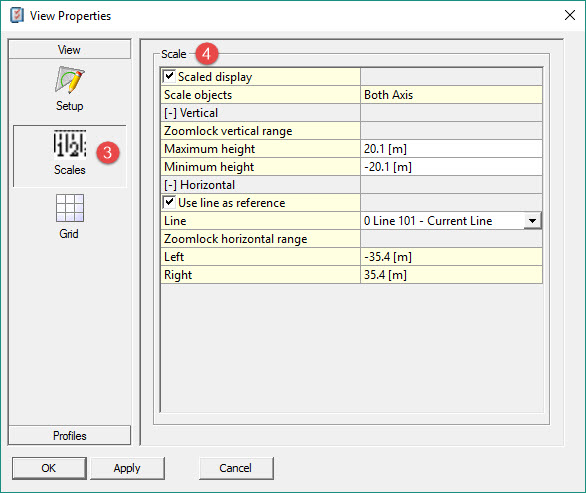

Click on the Scales

button to set the scales of the Profile Display in horizontal and vertical direction.

Make parameter selections and enter parameter values.

Scaled display	When enabled this option scales the object according to the scales of both the vertical and the horizontal legends. The aspect ratio of the object is not maintained. When disabled this gives some manually adjustable settings in the Vertical and Horizontal lines listed below.
Scale objects	When Scaled Display is disabled this option can be used to scale objects on one axis or both axes: Both Axes - The object is sized according to the scales of both the vertical and the horizontal legends. Horizontal Axis - The object is sized according to the scale of the horizontal legend. (Maintains the aspect ratio of the object). Vertical Axis - The object is sized according to the scale of the vertical legend. (Maintains the aspect ratio of the object).
Vertical
Zoomlock vertical range	Lock the vertical range so it will not change when zooming in or out.
Maximum height	This is the height value at the top of the display.
Minimum height	This is the height value at the bottom of the display.
Horizontal
Use line as reference	Used to show the object relative to a line. KP values are shown on the horizontal axis instead of distances in survey units.
Line	When Use Line As Reference is activated, choose an existing line from the drop down menu. Different mainlines can be selected, but need to have been activated in the Controller - Settings - Session Setup - Planning first. These Additional Mainlines were defined in the program Line Data Manager or in the online Navigation Screen with the button named Waypoint Planning.
Zoomlock horizontal range	Lock the horizontal range so it will not change when zooming in or out.
Left	The range value shown to the left of the center of the display.
Right	The range value shown to the right of the center of the display.

Press Apply to see the effects of changes without having to leave this menu.

Return to: top of page.

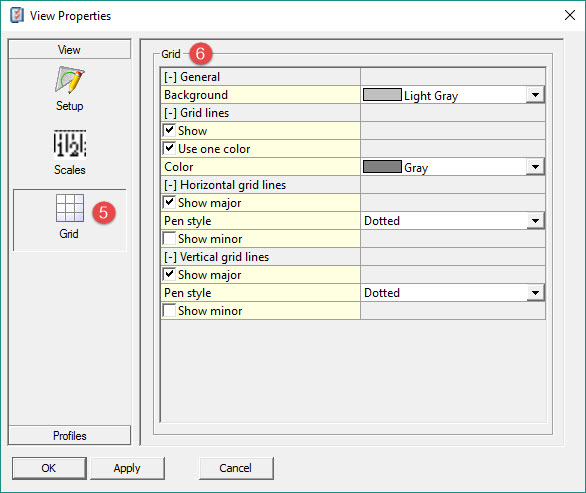

Grid

Click on the Grid

button to set colors and pen styles for the background grid presentation.

Make parameter selections as follows:

General
Background	Select a color for the Background of the display.
Grid lines
Show	Uncheck to remove grid lines. When checked the following lines are shown:
Use one color	When checked all grid lines (Horizontal, Vertical, major and minor) are drawn in the same color. When unchecked the colors can be set separately for each type of line.
Color	Select a Color for the grid lines. Only available when Use One Color was enabled.
Horizontal grid lines
Show major	When checked, the Major horizontal lines of the display grid will show. A pen style can be selected on the next line :
Pen style	Select a Style for the Major grid lines.
Color	Select a Color for the Major grid lines. Only available when Use One Color was disabled.
Show minor	When checked, the Minor horizontal lines of the display grid will show. A Pen Style can be selected on the next line :
Pen style	Select a style for the minor grid lines.
Color	Select a color for the minor grid lines. Only available when 'Use one color' was disabled.
Vertical grid lines
Show major	When checked, the major vertical lines of the display grid will show. A Pen Style can be selected on the next line :
Pen style	Select a Style for the Major grid lines.
Color	Select a Color for the Major grid lines. Only available when Use One Color was disabled.
Show minor	When checked, the Minor vertical lines of the display grid will show. A Pen Style can be selected on the next line :
Pen style	Select a Style for the Minor grid lines.
Color	Select a Color for the Minor grid lines. Only available when Use One Color was disabled.

Press Apply to see the effects of changes without having to leave this menu.

Return to: top of page.

Settings

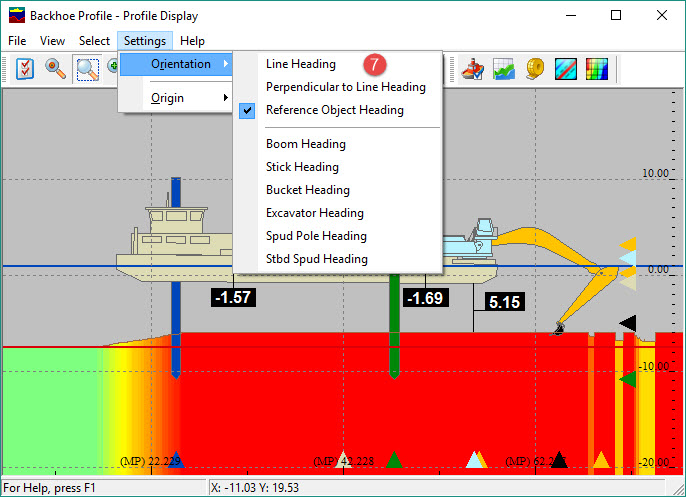

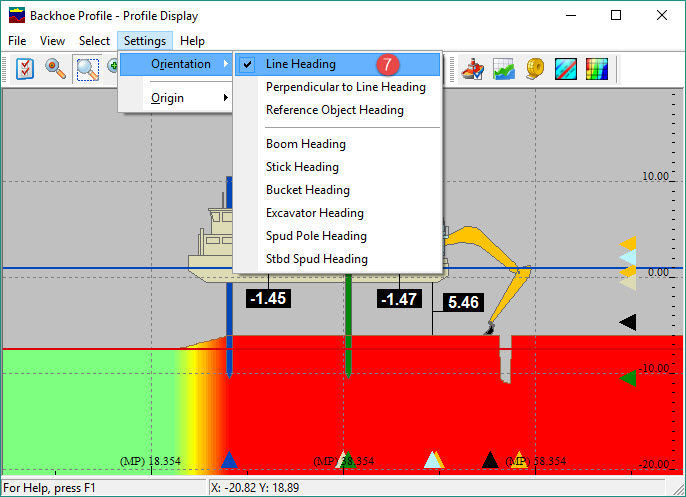

Orientation

Choose an orientation for the main view panel.

Reference Object Heading

Line Heading

Origin

Choose the perspective with which you want to view the dredger:

You must have defined object shapes from all these perspectives when defining objects in the Database Setup program.

Return to: top of page.
