Generic - Valeport - MIDAS SVX2 - 23

Description

This driver can be used to decode the following observations from the Valeport MIDAS SVX2:

Pressure
Sound Velocity
Conductivity
Temperature

There is an option to let the system calculate a salinity which is then added to the end of the string. You could, in this case, modify the driver to also decode that value.

Warning

Note that this is not an official driver. If you run into any issues, please contact QPS Support.

Driver Information

Driver	Generic - Valeport - MIDAS SVX2	Interface Type	Serial	Driver Class Type	Terminated
UTC Driver	No	Input / Output	Input	Executable	Valeport-MIDASSVX2.ini
Related Systems	Generic - Valeport - MIDAS SVX2 - 23 Miscellaneous System Generic - Valeport - MIDAS SVX2 - 31 Underwater Sensor
Related Pages	Generic Serial Input - 31 How-to I/O Driver Editor

Qinsy Configuration

Database setup

Underwater Sensor

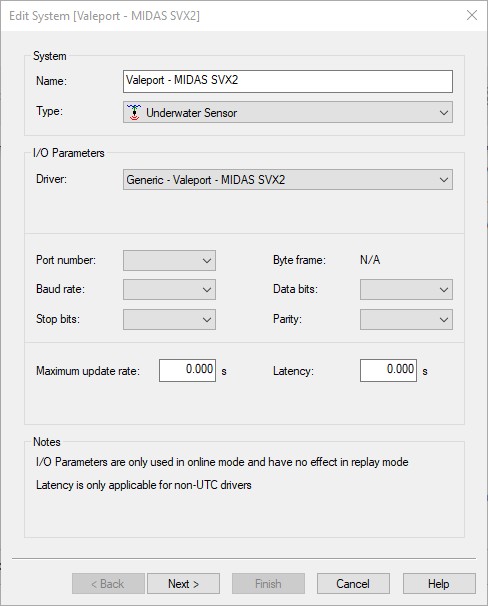

Add the driver. Make sure to set the correct serial settings.

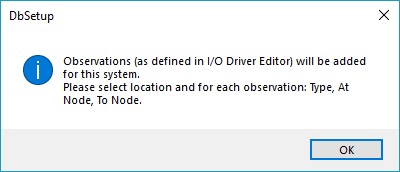

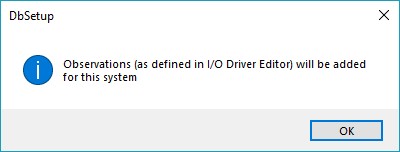

Observations that were added in the I/O Driver Editor are automatically added to the template.

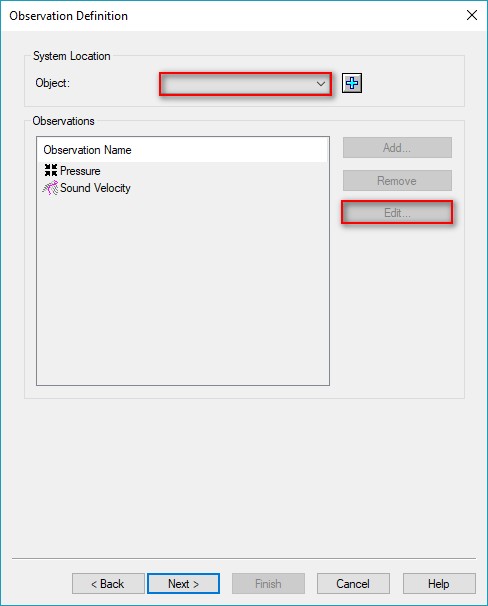

Make sure to select the correct object on which the system is located and then click "Edit" for each observation to select its location.

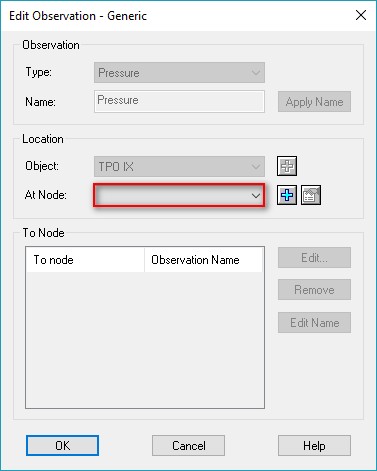

If the Object or Variable Node does not exist yet, you can create one by clicking on the blue plus button
.

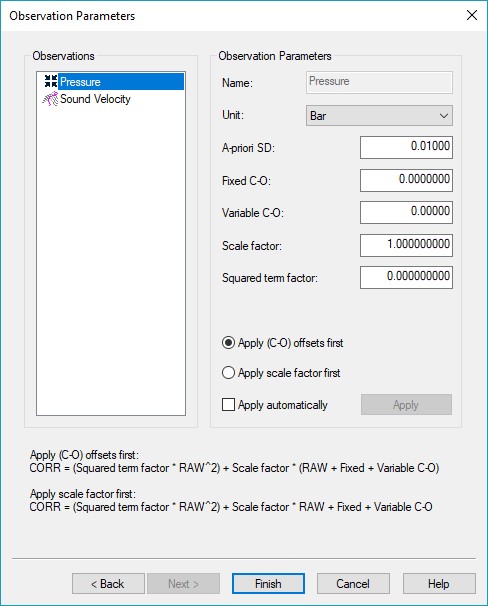

In the last tab you can edit the Observation Parameters.

Miscellaneous system

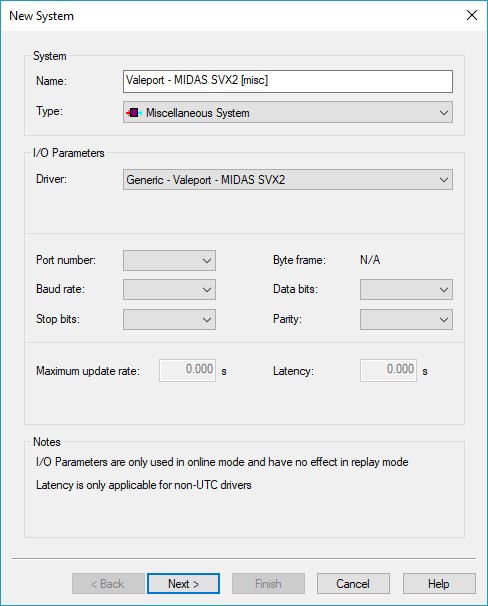

Add the driver. Make sure to set the correct serial settings.
Observations that were added in the I/O Driver Editor are automatically added to the template.

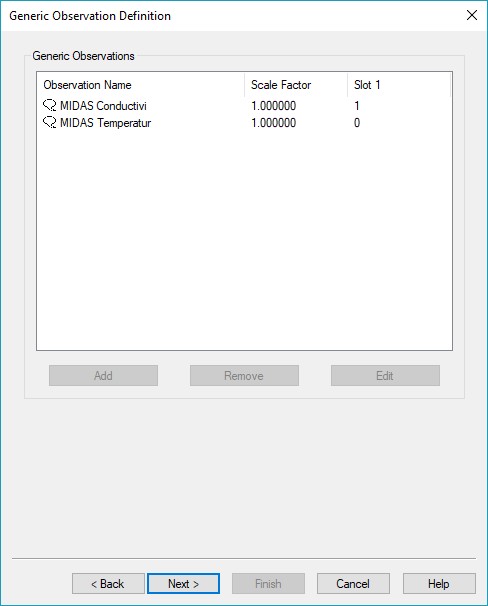

The observations are shown here. No need to edit these.

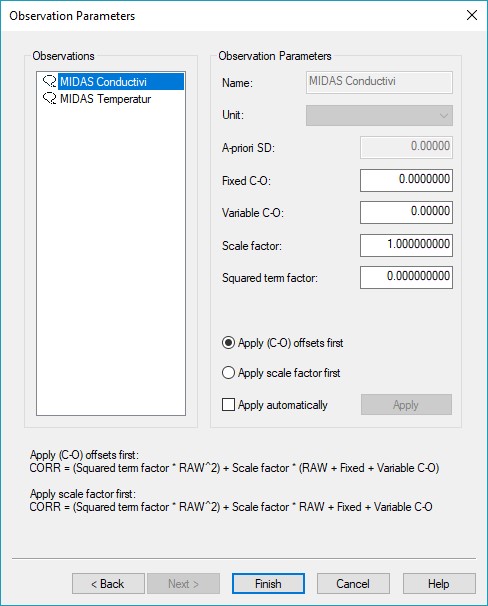

Observation parameters can be changed (C-O or scale factor).

Qinsy Online

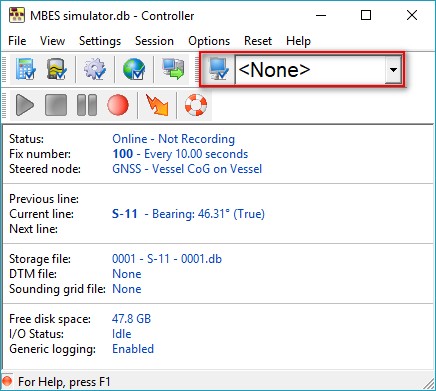

You can add displays using the Display Manager:

Observation Physics Display

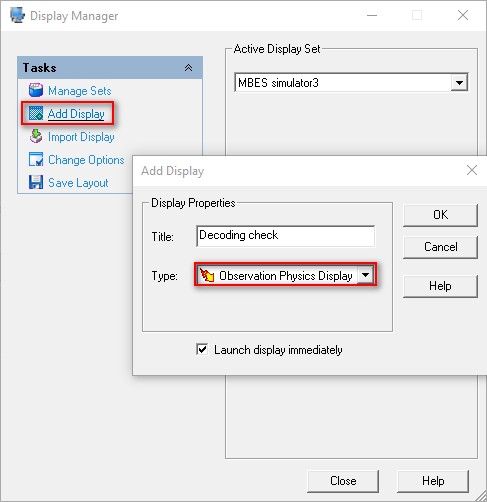

Add an Observation Physics Display

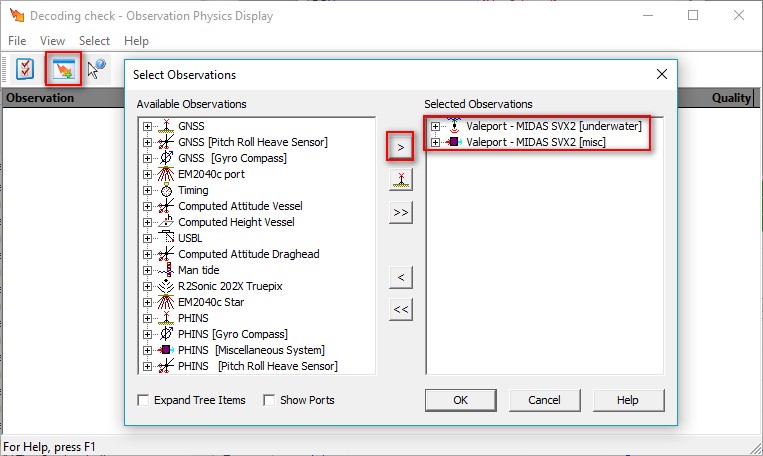

Add the observations to the display

Additional Information

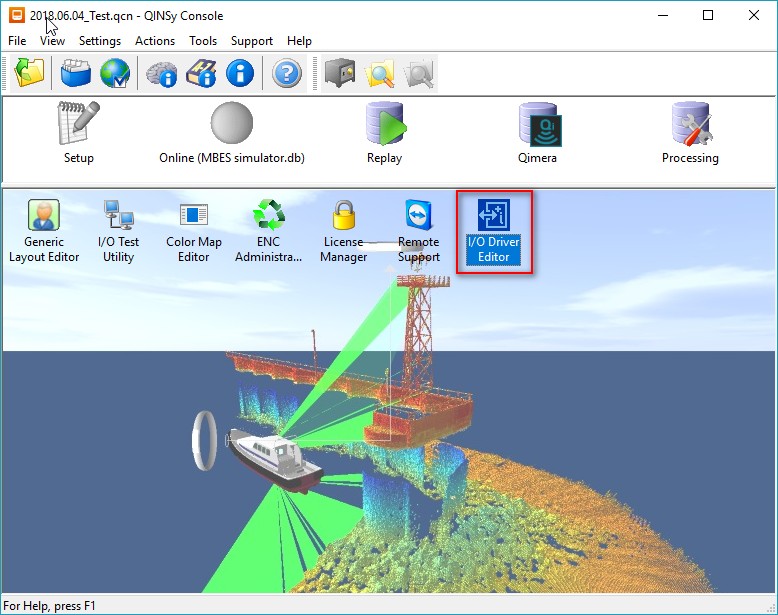

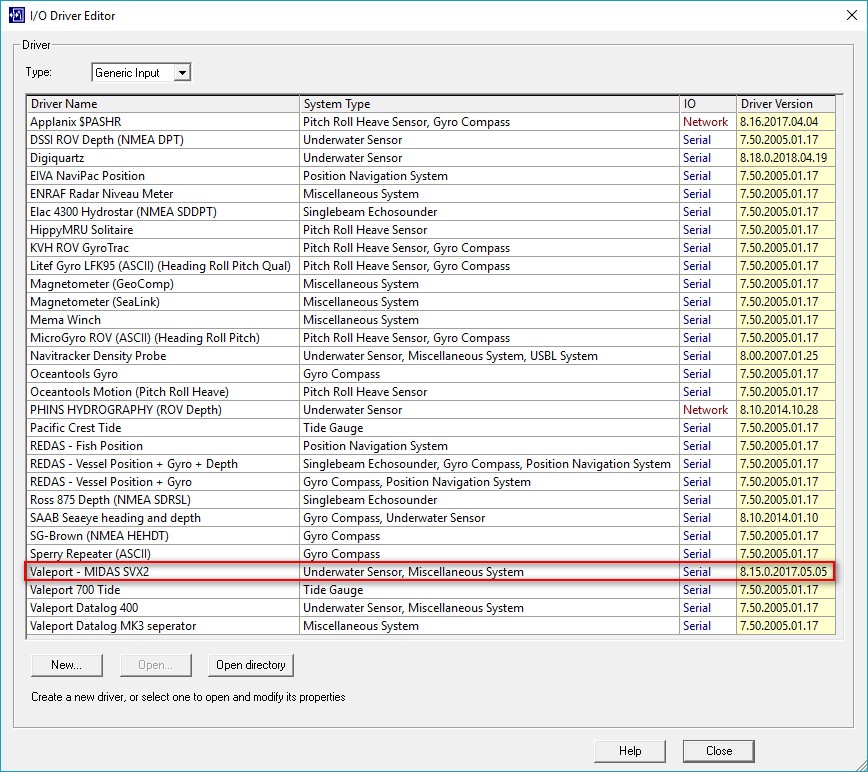

The driver is still editable. This can be done via the I/O Driver Editor.
