Moxa CP-168 EL
Info
| Manufacturer | Moxa |
|---|---|
| Model | CP-168EL |

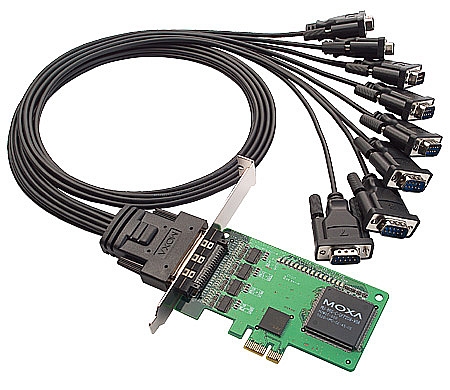

| Description | 8-port RS-232 PCI Express Smart Serial Board |
| P/N | PCBCP-168EL VER:1.2 |
| S/N | azvNF2000104 |
| Website | http://www.moxa.com/product/CP-168EL.htm |
| Cable/Box | Opt8B+ (SCSI VHDCI 68 to 8 x DB25(M) RS-232 Connection Box) |
| Images |    |
Test Results
The following table shows the latency (milliseconds) per baud rate using specific settings within the IO card.
| Result | Settings | 9600 | 19200 | 38400 | 57600 | 115200 | Comment |
|---|---|---|---|---|---|---|---|
 | FIFO Default | 34 | 17 | 9 | 6 | ||
 | FIFO Disabled | 1 | 1 | 0 | 0 |
Tip
The PPS can be used via the IO card.
Settings
| There are no images attached to this page. |
Known issues
Problems, with the PPS connected on this multi I/O card, might be fixed using the following driver:
Windows Driver for Multiport Serial Boards (WHQL Certified)
Version 1.23. Released Mar 3, 2016
Details and release notes
> Download 1.12 MB
http://www.moxa.com/support/sarch_result.aspx?type=soft&prod_id=76&type_id=9
Tip
Problems in Windows10, with serial outputs corrupted at destination computers, might be fixed using the following driver:
Windows Driver for Multiport Serial Boards (WHQL Certified)
Version 1.24. Released OCT 27, 2018
Details and release notes
> Download 1.3 MB
https://www.moxa.com/en/support/product-support/software-and-documentation/search?psid=56432
