Qimera - Update Spatial Index Process

This is a utility function used to update the spatial extents of QPDs.  If the spatial extents are somehow wrong, the mechanism in Qimera will activate when you try to create a Static Surface; you will get an error indicating that the bounds could not be determined or that your surface Z extents are invalid as shown below.

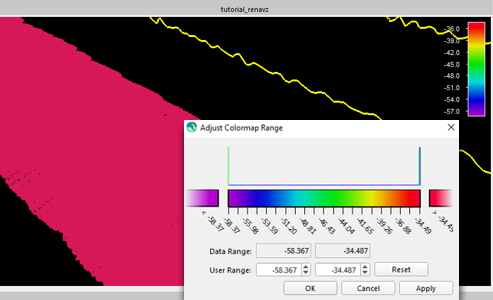

Bad Surface

To correct the problem, select the lines that were part of the surface, run the Update Spatial Index tool, then rebuild the static surface.  The new surface is shown below.

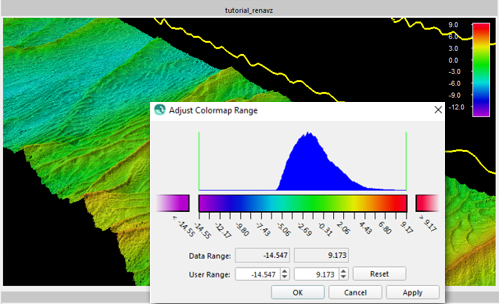

New Surface
