Description
Driver to decode vertical and horizontal wave displacements and inclination from a directional waverider.
The horizontal displacement is also calculated as a vector.
Driver Information
|
Driver |
RWS Directional Waverider |
Interface Type |
Serial |
Driver Class Type |
Terminated |
|---|---|---|---|---|---|
|
No |
Input / Output |
Input |
Executable |
DrvDirWaverider.exe |
|
|
Related Systems |
|||||
|
Related Pages |
|
||||
Decoding Notes
The vertical and horizontal displacement are converted to meters, the inclination is converted to degrees.
If one of the error codes is encountered the value will be the error code (i.e. 9990).
If there is no error code the quality indicator is set to '1', if there is an error code it will be set to '-1'.
The horizontal displacement vector is calculated from the two directional horizontal displacements and the values are meters for the length and degrees for the direction.
If one of the directional horizontal displacements have an error code the value of the vector values becomes 9990.
Interfacing Notes
Type of cable wiring (one-way or two-way).
|
DB-25 |
Sensor |
|
DB-9 |
COM |
|
DB-25 |
COM |
|---|---|---|---|---|---|---|---|
|
Pin 2 |
RXD |
----- |
Pin 3 |
TXD |
|
Pin 2 |
TXD |
|
Pin 3 |
TXD |
----- |
Pin 2 |
RXD |
|
Pin 3 |
RXD |
|
Pin 7 |
SG |
----- |
Pin 5 |
SG |
|
Pin 7 |
SG |
Database Setup

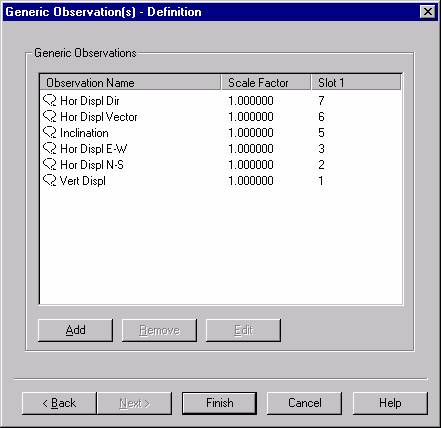

When adding observations to the systems the following slot numbers should be used:
Slot numbers 1 – 5 are based on the data string, slot number 6 and 7 are calculated internally.
RWS Directional Waverider Unknown Attachment
|
Driver Type |
Description |
RWS Directional Waverider |
|
|
Interface Type |
Serial |
Input / Output |
Input |
|
UTC Driver |
|
Driver class type |
Terminated |
|
Driver.io |
230050 |
Executable |
DrvDirWaverider.exe |
|
Other Driver Types |
|
Drivers.io options |
|
|
Related Drivers |
|
Related Pages |
|
Description
Driver to decode vertical and horizontal wave displacements and inclination from a directional waverider.
The horizontal displacement is also calculated as a vector.
Driver Information
|
Driver |
RWS Directional Waverider |
Interface Type |
Serial |
Driver Class Type |
Terminated |
|---|---|---|---|---|---|
|
No |
Input / Output |
Input |
Executable |
DrvDirWaverider.exe |
|
|
Related Systems |
|||||
|
Related Pages |
|
||||
Decoding Notes
The vertical and horizontal displacement are converted to meters, the inclination is converted to degrees.
If one of the error codes is encountered the value will be the error code (i.e. 9990).
If there is no error code the quality indicator is set to '1', if there is an error code it will be set to '-1'.
The horizontal displacement vector is calculated from the two directional horizontal displacements and the values are meters for the length and degrees for the direction.
If one of the directional horizontal displacements have an error code the value of the vector values becomes 9990.
Interfacing Notes
Type of cable wiring (one-way or two-way).
|
DB-25 |
Sensor |
|
DB-9 |
COM |
|
DB-25 |
COM |
|---|---|---|---|---|---|---|---|
|
Pin 2 |
RXD |
----- |
Pin 3 |
TXD |
|
Pin 2 |
TXD |
|
Pin 3 |
TXD |
----- |
Pin 2 |
RXD |
|
Pin 3 |
RXD |
|
Pin 7 |
SG |
----- |
Pin 5 |
SG |
|
Pin 7 |
SG |
Database Setup
When adding observations to the systems the following slot numbers should be used:
Slot numbers 1 – 5 are based on the data string, slot number 6 and 7 are calculated internally.
