NovAtel SPAN (BESTGNSSPOS Format) (With UTC) - 12

Description

Driver to decode positions computed by a NovAtel OEM / SPAN GNSS+INS receiver capable of outputting so-called SPAN Log messages.

Notes

It is recommended to enable the BESTGNSSPOS in combination with the INSSTDEV message for output.
Driver will auto-detect if legacy format BESTGPSPOS (or the older BESTPOS) is still being outputted by your receiver.
Driver supports both serial as well as network (UDP and TCP) communication.

Driver Information

Click here to expand details...

Driver	NovAtel SPAN (#BESTGNSSPOS Format) NovAtel OEM4 Family (#BESTPOS Telegram)	Interface Type	Serial or Network	Driver Class Type	Terminated
UTC Driver	Yes	Input / Output	Input	Executable	DrvQPSTerminated.exe DrvQPSTerminatedUDP.exe DrvQPSTerminatedTCP.exe
Related Systems	Network (TCP) - NovAtel SPAN (BESTGNSSPOS Format) (With UTC) - 12 Positioning Navigation System Network (TCP) - NovAtel SPAN (BESTGNSSPOS Format) Status - 23 Miscellaneous System Network (UDP) - NovAtel OEM4 Family (BESTPOS Format) Status - 23 Miscellaneous System Network (UDP) - NovAtel SPAN (BESTGNSSPOS Format) (With UTC) - 12 Positioning Navigation System Network (UDP) - NovAtel SPAN (BESTGNSSPOS Format) Status - 23 Miscellaneous System NovAtel OEM4 Family (BESTPOS Format) (With UTC) - 12 Positioning Navigation System NovAtel OEM4 Family (BESTPOS Format) Status - 23 Miscellaneous System NovAtel SPAN (BESTGNSSPOS Format) (With UTC) - 12 NovAtel SPAN (BESTGNSSPOS Format) Status - 23 Miscellaneous System
Related Pages

Decoding Notes

Click here to expand notes...

Each message log starts with a header of 10 comma-separated fields, then separated with a semicolon character (';') to indicate the start of the remaining comma-separated data fields.
The 6th and 7th header field represent the GPS Time (week number and seconds) and will be used for time-stamping the data in case your template setup supports a Time Synchronization System (PPS).
The driver converts to decoded GPS time to UTC time so therefore it is important to set the correct UTC to GPS correction (leap-second) in your template setup (18 sec, as of Jan 2017).
The CRC32-bit checksum will decoded and used to check the data integrity.
If the checksum fails, no data will be decoded, unless you use command-line parameter 'NOCS' (advanced user only!).
The Solution Status text (data field # 1) is decoded as number as defined in the Solution Status Table.

Refer to the NovAtel online documentation for the latest table information update:

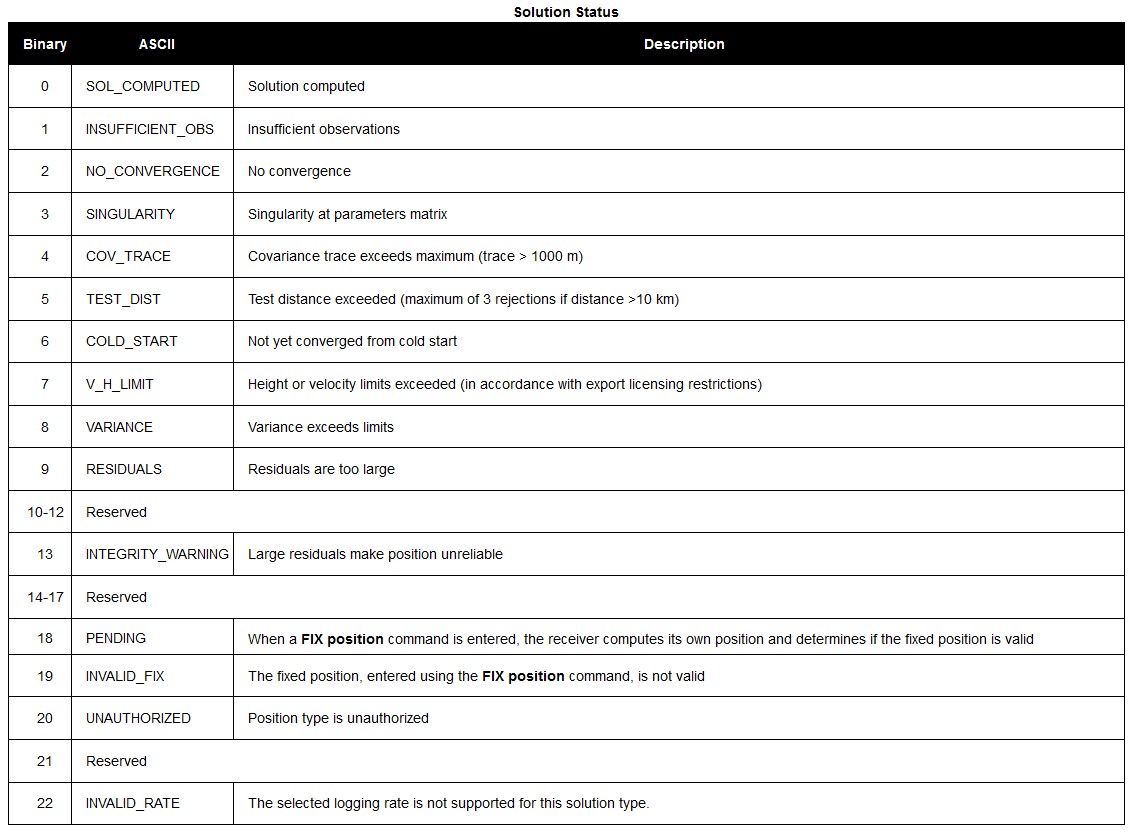

- Solution Status Table
  https://docs.novatel.com/OEM7/Content/Logs/BESTPOS.htm#SolutionStatus

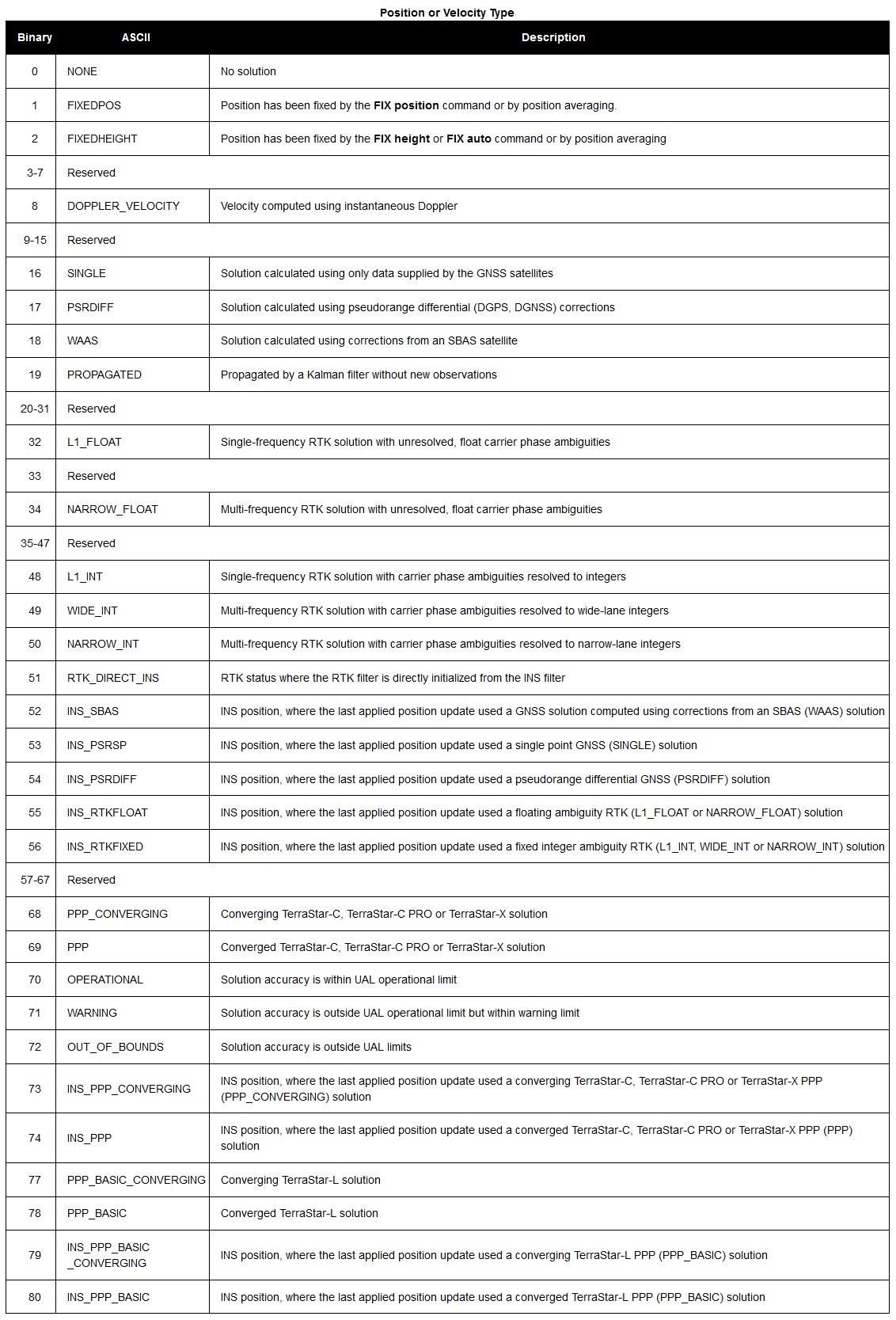

- Position Type Table
  https://docs.novatel.com/OEM7/Content/Logs/BESTPOS.htm#Position_VelocityType
- Extended Solution Status table
  https://docs.novatel.com/OEM7/Content/Logs/BESTPOS.htm#ExtendedSolutionStatus

Database Setup

It is important to use the same interfacing settings for all 'NovAtel SPAN (#BESTGNSSPOS Format) ' systems in your template setup.

Click here to expand setup details...

[ ] [ Position Navigation System ] [ Time Synchronization System ] [ Miscellaneous System ]

Position Navigation System

Add a Position Navigation System to your template setup and select driver:

"NovAtel SPAN (#BESTGNSSPOS Format) (With UTC)" when using the serial I/O interface, or
"Network (UDP/TCP) - NovAtel SPAN (#BESTGNSSPOS Format) (With UTC)" when using the network interface.

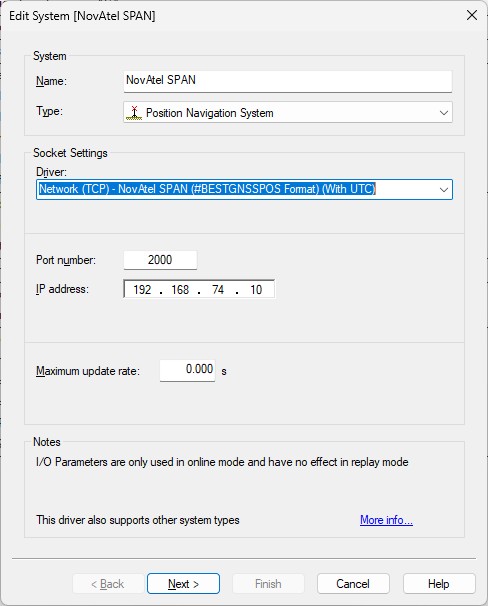

The latitude, longitude and height observation will be decoded automatically from the #BESTGNSSPOS message or from the legacy #BESTGPSPOS message if that is still being used from a receiver with older firmware:

First Wizard Page

Example TCP network interface

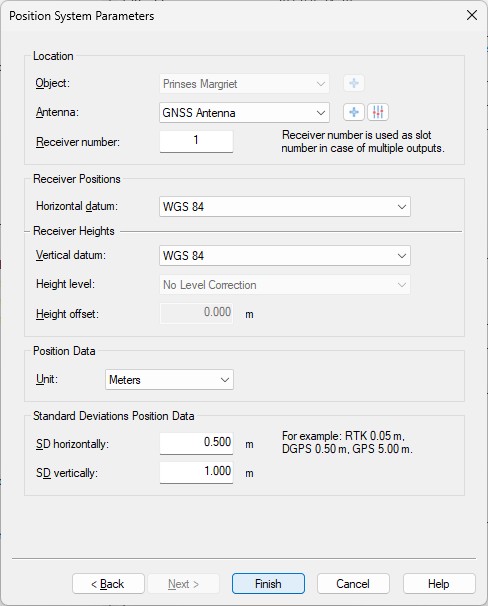

Second Wizard Page

Location
Select the correct antenna location that represents the position of the GNSS receiver.
Receiver number
Not used by this driver as Slot ID (only one position will be decoded from all the incoming messages)
Horizontal / Vertical Datum
Select the correct horizontal and vertical datum that is applicable for the latitude and longitude fields: the same datum as seen in data field #7, 'Datum ID' of the message telegram.
Normally this will be the default 'WGS84' datum.

Time Synchronization System

Add a Time Synchronization System to your template setup and select driver:

"NovAtel SPAN (#BESTGNSSPOS Format)" when using the serial I/O interface, or

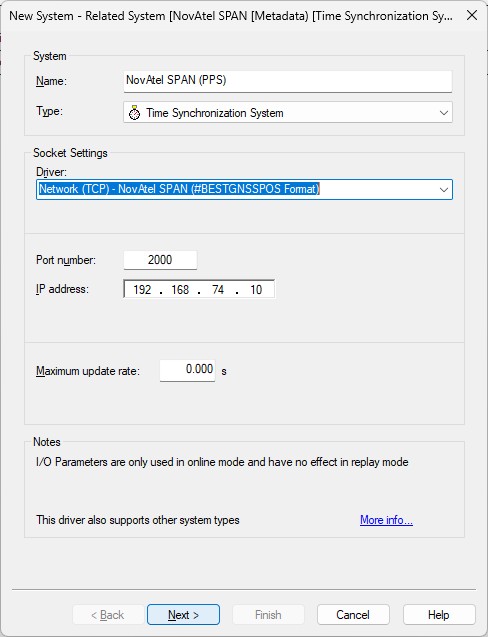

"Network (UDP/TCP) - NovAtel SPAN (#BESTGNSSPOS Format)" when using the network interface.

Time will be decoded from the #TIME message so make sure to enable this message type.

First Wizard Page

Example TCP network interface

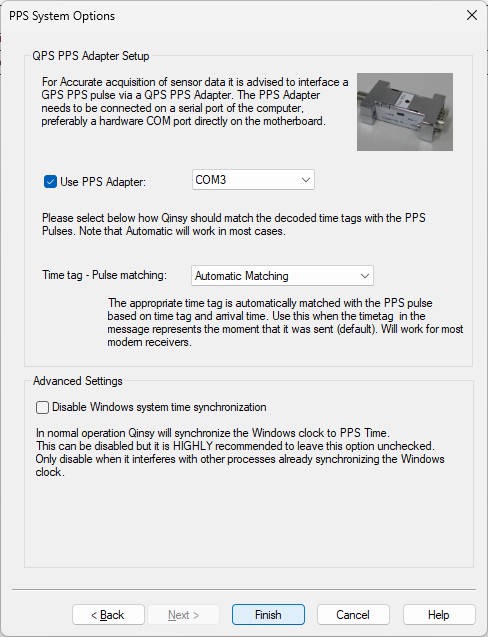

Second Wizard Page

Notes

Use a Time Synchronization Display to monitor this system while being online.
For easy monitoring you can see the decoded values formatted as a text string in the status column of this display.

Miscellaneous System

Add a Miscellaneous System to your template setup and select driver:

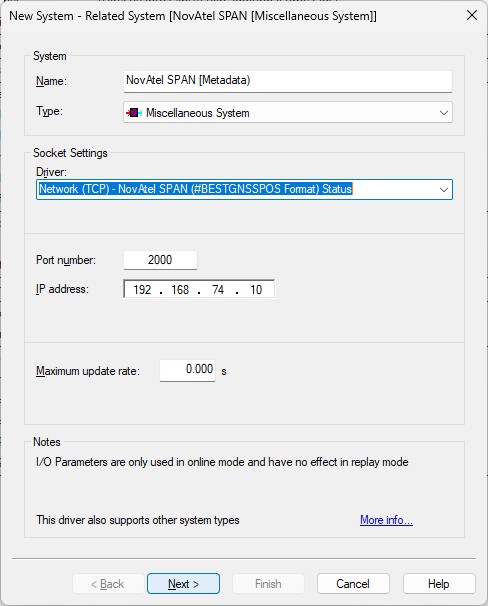

"NovAtel SPAN (#BESTGNSSPOS Format) Status" when using the serial I/O interface, or
"Network (UDP/TCP) - NovAtel SPAN (#BESTGNSSPOS Format) Status" when using the network interface.

Generic observations will be decoded from several fields inside the BESTGNSSPOS message.

First Wizard Page

Example of TCP network interface

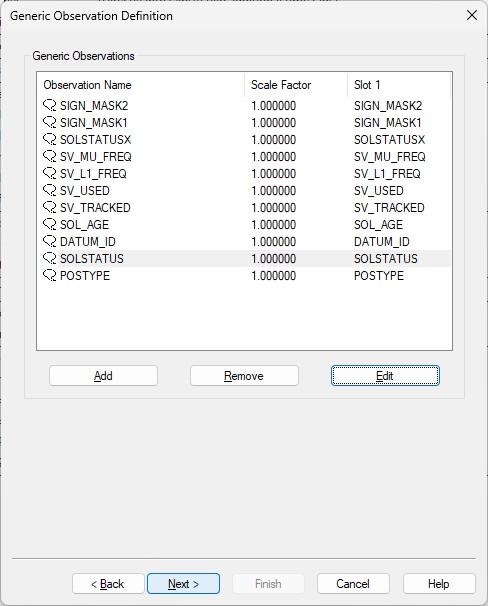

Second Wizard Page

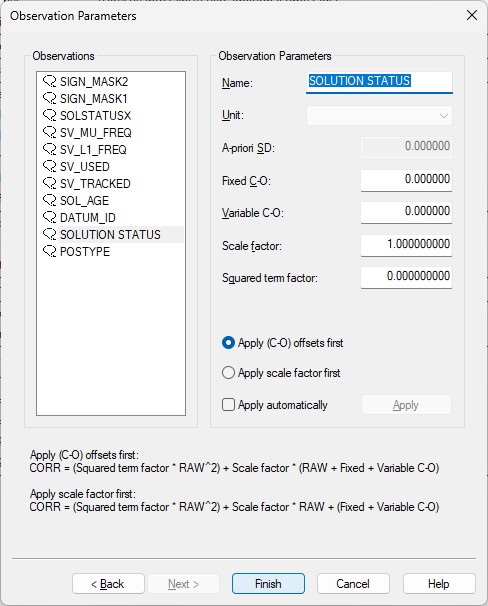

Here you can add up to eleven generic observations that you may want to monitor.
Each generic observation needs a unique Slot Id so the driver knows which field to decode.

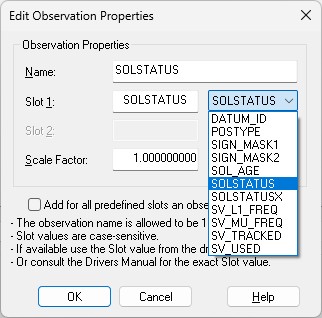

It is highly recommended to use the drop-down selection for the correct Slot Id:

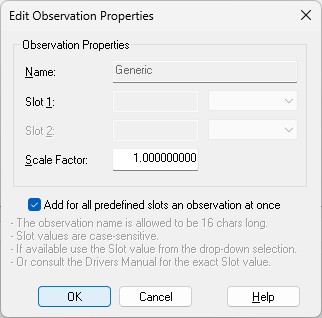

More convenient may be to use the checkbox to add all observations at once.

Of course you can change the default name for each observation as long as it doesn't exceed 16 characters.

Find below a table with all possible Slot IDs:

Slot 1 ID	Observation	Message
DATUM_ID	Datum ID (61 = WGS84, 63 = USER)	BESTGNSSPOS, Field #8
POSTYPE	Enumeration value. See table 'PositionType'	BESTGNSSPOS, Field #3
SIGN_MASK1	Mask value. See table Galileo and BeiDou Signal-used mask	BESTGNSSPOS, Field #21
SIGN_MASK2	Mask value. See table GPS and GLONASS Signal-Used mask	BESTGNSSPOS, Field #22
SOL_AGE	Solution age in seconds	BESTGNSSPOS, Field #14
SOLSTATUS	Enumeration value. See table 'Solution Status'	BESTGNSSPOS, Field #2

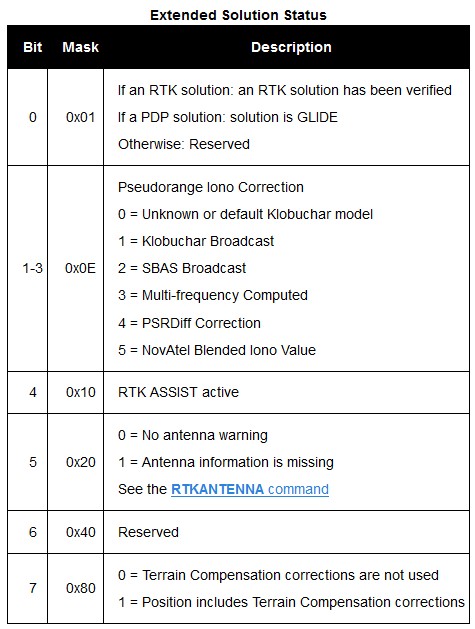

SOLSTATUSX	Mask value. See table 'Extended Solution Status'	BESTGNSSPOS, Field #20
SV_L1_FREQ	Number of satellites with L1/E1/B1 signals used in solution	BESTGNSSPOS, Field #17
SV_MU_FREQ	Number of satellites with multi-frequency signals used in solution	BESTGNSSPOS, Field #18
SV_TRACKED	Number of satellites tracked	BESTGNSSPOS, Field #15
SV_USED	Number of satellite solutions used in solution	BESTGNSSPOS, Field #16

Note that the Slot ID is case-sensitive.

Third Wizard Page

Here you can also change the default name of each observation as long as it doesn't exceed 16 characters.
You may leave all parameters at their defaults.

Online

The driver has no user-interface so you need to set up several displays to see if data is received, decoded and what the computed results are

Click here for some examples of useful displays...

For a Position Navigation System you can monitor the Solution Status as Solution mode in a Position System Display, as Solution Mode in a Generic Display, or as Raw Alert 'Position Mode outside limit' in the Alert Display.

The other decoded fields, like base station Id, differential age, etc., can be monitored using a Position System Display or a Generic Display.
Note that the Position RMS is derived from the decoded Lat/Lon/Height Standard Deviation fields (#8, #9 and #10).

Note
Due to demand the Positioning System Display now shows under the Satellites tab, the number of satellites used in the solution, and not the number of satellites tracked.

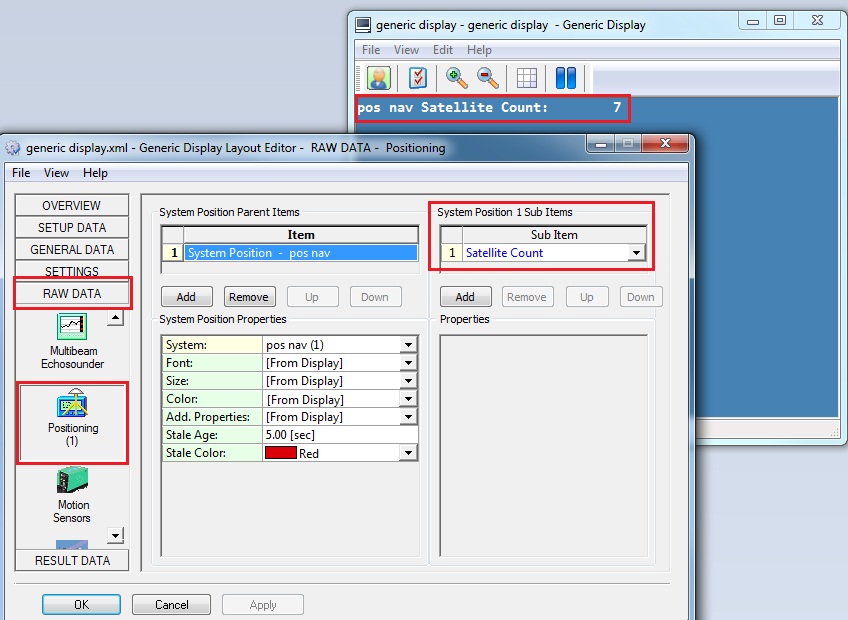

The same applies to the Generic Display Satellite Count. The screen captures below illustrate this:

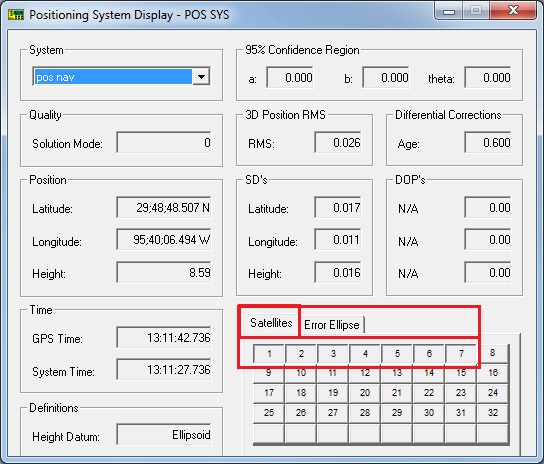

Position System Display

Generic Display
