Nortek Aquadopp 3D Velo - Pressure - Temp - 23
Description
The driver will decode three velocities (E, N en Z), pressure, temperature, compass heading, pitch and roll.
It is assumed that the Aquadopp is outputting data at continuous rate and that the output format is according to the format description described below.
Driver Information
Driver | Nortek - Aquadopp | Interface Type | Serial | Driver Class Type | Counted |
|---|---|---|---|---|---|
No | Input / Output | Input | Executable | DrvAquadopp.exe | |
Related Systems |
| ||||
Related Pages | |||||
Decoding Notes
The time used for timetagging is the PC system time or PPS time.
The time in the datastring is ignored.
All the values decoded from the data are internally converted to SI units (meters, degrees, degrees Celsius).
Interfacing Notes
Type of cable wiring (one-way or two-way).
DB-25 | Sensor | DB-9 | COM | DB-25 | COM | |
|---|---|---|---|---|---|---|
Pin 2 | RXD | ----- | Pin 3 | TXD | Pin 2 | TXD |
Pin 3 | TXD | ----- | Pin 2 | RXD | Pin 3 | RXD |
Pin 7 | SG | ----- | Pin 5 | SG | Pin 7 | SG |
Database Setup

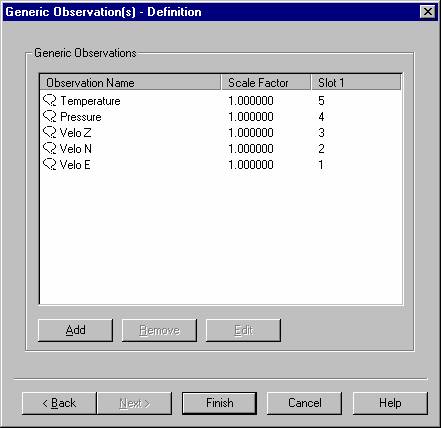

For decoding the 3D velocity, pressure and temperature, define a "miscellaneous system" and select driver "Nortek Aquadopp 3D Velo, Pressure, Temp". Add generic observations using the slot numbers below.
For decoding the compass heading, define a "gyro's and compasses system" and select the driver "Nortek Aquadopp Compass Heading".
For decoding the compass pitch and roll, define a "pitch, roll and heave system" and select driver "Nortek Aquadopp Compass R-P".
See the appropriate sections in this manual.
