Network (TCP) - C-Nav 3050 Raw GPS (Binary) Data (PVT) - 12
Description
The C-Nav3050 integrated C-Nav/RTK Extend Receiver provides decimeter-level position accuracy, anywhere in the world, anytime.
Powered by the new Sapphire GNSS Engine, the C-Nav3050 provides 66-channel tracking, including multi-constellation support for GPS, GLONASS and Galileo.
Driver Information
Driver | C-Nav 3050 Raw GPS 'Binary' Data (PVT) | Interface Type | Serial / UDP / TCP | Driver Class Type | Terminated |
|---|---|---|---|---|---|
Yes | Input / Output | Input | Executable | DrvQPSTerminated.exe DrvQPSTerminatedUDP.exe | |
Related Systems |
| ||||
Related Pages | |||||
Database Setup

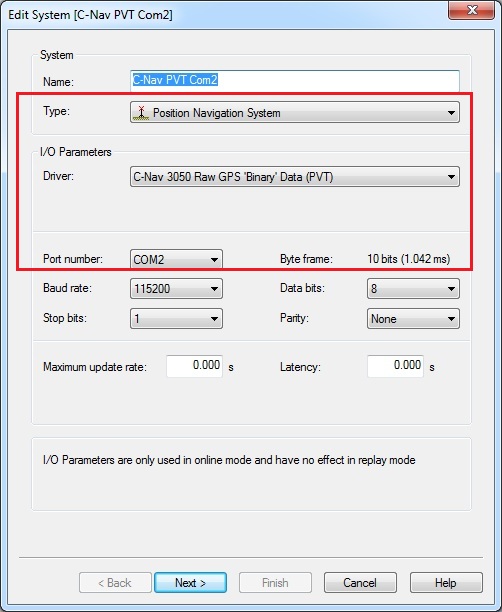

Create a Position Navigation System and select as driver type "C-Nav 3050 Raw GPS 'Binary' Data (PVT)".
Verify the I/O parameters are set correctly e.g. Port number.
Set the Location of the Position Navigation System.

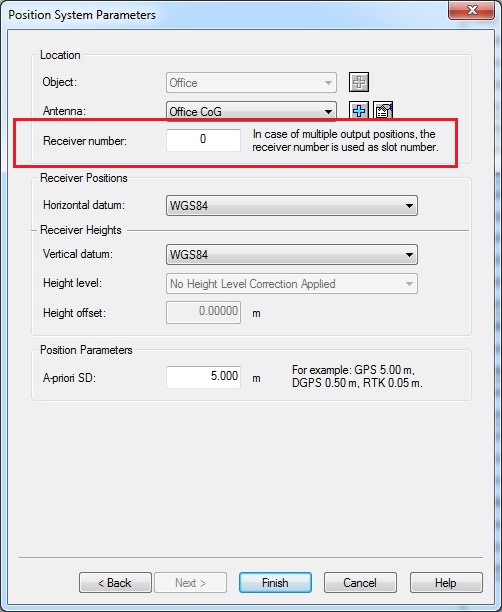

If multiple Position systems are available, make sure to set the Receiver number correctly.
From Qinsy v8.18.1 on it is not necessary anymore to set the Receiver number to 0 (zero): any number can be used.
Online
Verify the data is decoded correctly by this driver.

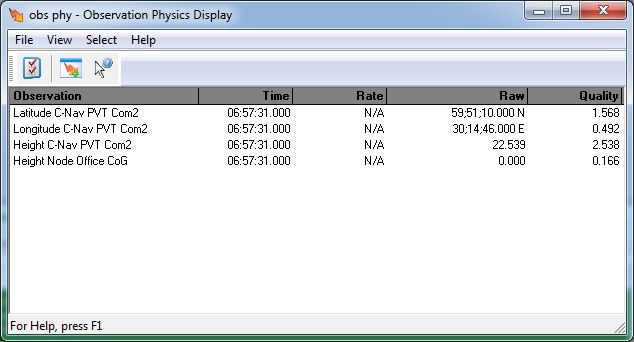

This can be observed via the Observation Physics Display and the Positioning System Display.

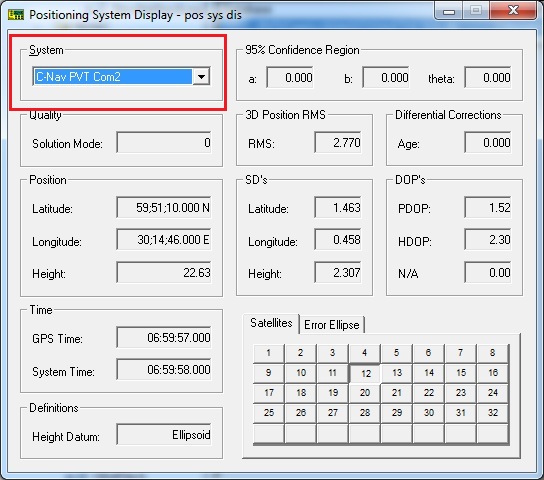

Geographical information received from C-Nav 3050. Data decoded by the driver and shown in this display.
When multiple positioning systems are available make sure to select the correct one from this drop-down box.
