Network - Shallow Water Range Geodetic (UTC) - 30

Description

The Shallow Water Range Geodetic (SWRG) driver is used to decode the SWRG format as used by the Naval Underwater Warfare Centers (NUWC) in operation by United States Navy (USN). This driver is used to display the location of various objects using Qinsy. Currently the format supports a geodetic position (latitude, longitude and altitude or depth) and a speed over ground (SOG) and course over ground (COG) value for each of the tracked objects. DrvQpsTerminated.exe may be used for RS-232 connections. DrvQpsTerminatedUdp.exe may be used for UDP broadcasts and UDP unicasts.

Driver Information

Driver

Network - Shallow Water Range Geodetic (UTC)

Interface Type

UDP

Driver Class Type

Terminated

UTC Driver (question)

Yes

Input / Output

Input

Executable

DrvQPSTerminatedUdp.exe NUWC_SWRG PPS

Related Systems

Related Pages


Decoding Notes

All fields are decoded. No unit conversions are applied by driver.

Position records are only accepted after receiving a valid time record.

System Configuration

There are no specific settings for the range system.

The default settings for the RS-232 connection are:

RS-232 Setting

Value

Baudrate

9600

Data Bits

8 Bits

Parity

None

Stop Bits

1 Bit

The default settings for the UDP broadcast are:

UDP Setting

Value

Address

255.255.255.255

Port

4000

The default settings for the UDP unicast are:

UDP Setting

Value

Address

user defined

Port

User defined

Interfacing Notes

A one way RS-232 cable is sufficient as the driver does NOT send any data to the range system.

Database Setup

The following table shows the slot assignments:

System/Observation

Slot value

Position Navigation System (Latitude, Longitude and Altitude or Depth)

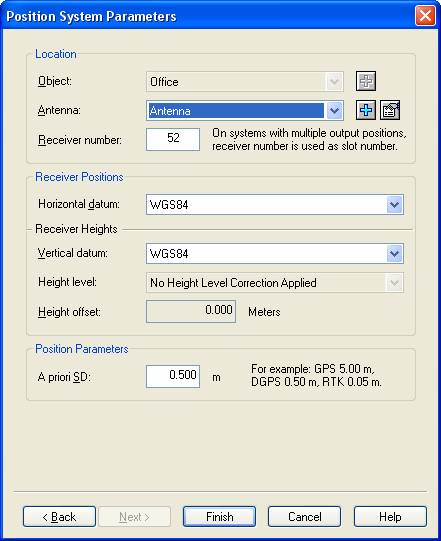

Enter object id in 'Receiver Number' field i.e. '52'

Speed Log System COG observation

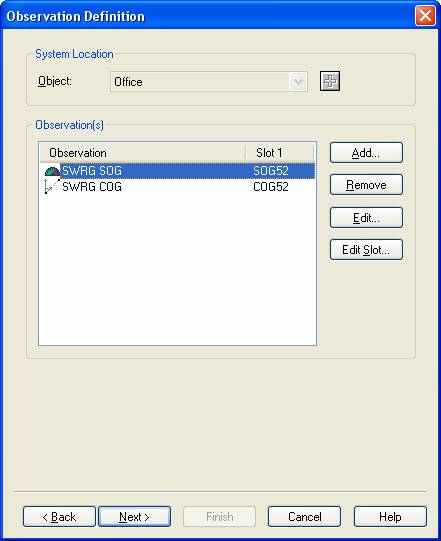

Enter 'COG' + object id in observation slot field i.e. 'COG52'

Speed Log System Speed observation

Enter 'SOG' + object id in observation slot field i.e. 'SOG52'


Drivers IO Notes

Command line parameter description for "drivers.io" file.

Command Line Parameter

Meaning

NUWC_SWRG

Enable decoding of NUWC SWRG format

PPS

Accept time from Time record as UTC time tag
