DM-0387

Description

This driver can be used to interface to Tritech's StarFish sidescan sonar family.

As it is a USB based device, make sure to install the proper firmware from the manufacturer before using the device in Qinsy.

Time of arrival and USB

Please note that the sidescan data from the unit is not time synchronized. This means that Qinsy will use the 'time of arrival' to match the sidescan data with other data (e.g. position, motion etc). Due to the technology of USB there is a delay between data arriving at the USB port and the time that the data is available for the OS (and thus, for Qinsy). The exact value of this delay is unpredictable. To keep this delay as short as possible, make sure to connect as few devices as possible to the USB controller the Tritech device is connected to.

Driver Information

Driver	Tritech StarFish 450/452/990	Interface Type	-	Driver Class Type	USB / with U/I
UTC Driver	-	Input / Output	Input	Executable	DrvL3Kleinsocket.exe
Related Systems	Tritech StarFish 450/452 - 27 Sidescan Sonar Tritech StarFish 990 - 27 Sidescan Sonar
Related Pages

Database Setup

Driver

Make sure to choose the correct driver for your device: "Tritech StarFish 450/452" for the 450F, 450H and 452F, or "Tritech StarFish 990" for the 990F.

Sound velocity

Choose 'Use sound velocity from unit'.

Channels

The C-Max fish supports only two channels at the same time. Make sure to define two channels: one with orientation port and one channel with orientation starboard. The driver will assign the data based on the orientation.

Online

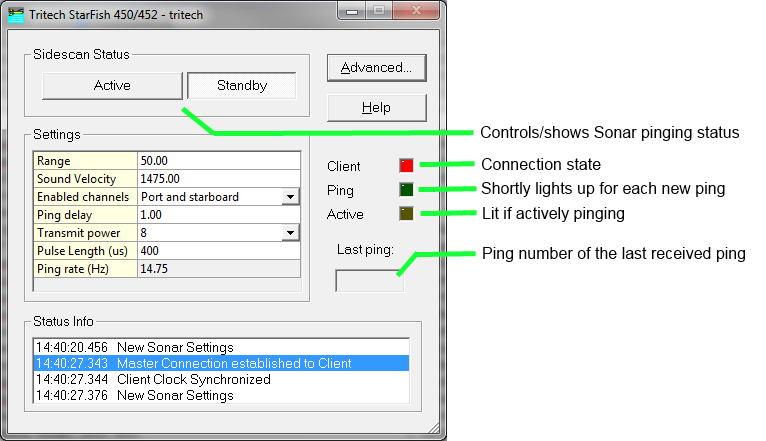

When online, the sidescan can be controlled through the driver user interface:

Status

Settings

Setting	Meaning
Range	Set the operating range. Ranges from 1.0 to 200.0 meters can be set. Please note that ranges higher than supported by the specific unit can be set, but will not result in valid data.
Sound velocity	The sound velocity used by the unit to calculate range from travel time.
Enabled channels	Enable or disable port or starboard receivers.
Ping delay	Normally, the unit will ping as fast as possible. By increasing the ping delay factor beyond 1, the ping rate will be lowered.
Transmit power	The power used by the transmitter to send out the pulse. Normal values lie between 8 and 10.
Pulse length	Length of the pulse in micro seconds.
Ping rate	(Read only) The current ping rate.

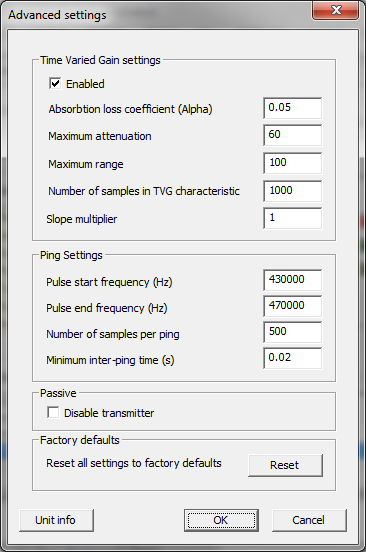

Advanced settings

Setting	Meaning
TVG settings
Enable TVG	Enable or disable the time varied gain algorithm.
Absorption loss coefficient	The acoustic absorption loss coefficient used by the TVG algorithm in dB/m.
Maximum attenuation	Maximum attenuation applied to the signal at the start of reception, in Decibels.
Maximum range	The range at which no attenuation is applied to the received signal, in metres.
Samples	How many points will be computed in the TVG characteristic. This does not relate to reception samples.
Slope multiplier	Multiply the slope of the TVG characteristic by this number.
Ping settings
Pulse start frequency	The start frequency of the chirp.
Pulse end frequency	The end frequency of the chirp.
Number of samples per ping	The number of samples used to store a complete ping.
Minimum inter-ping time	Minimum time between two pings. Normally the unit will ping as fast as possible (e.g. shorter range = higher ping frequency). This variable can be used to save energy for shorter ranges.

Disable transmitter	Do not send out pulses anymore, only listen.
Reset	Reset all settings (both advanced and non-advanced) to the factory defaults.
