Qimera Remove Lines Dialog


How to Start

  • Remove Lines from Dynamic Grid option from Dynamic Grid - Sources context menu in the Project Layers dock.
  • Context menu of processed point files
  • Context menu of raw sonar files

What it Does

This dialog allows you to remove lines from a Dynamic Grid.

General Description

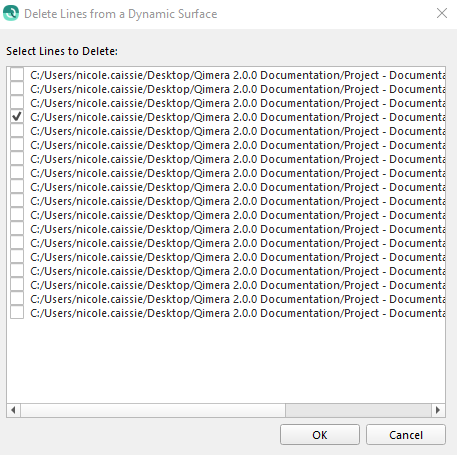

After selecting a dynamic grid from the project layers window this option lets you remove the data from one or more lines that was used to build the grid. For example say one accidently added  the "..._0009_20050728_..." line as shown in the dialog above. Simply uncheck that line and click Ok and the dynamic grid will be updated with all data from the unchecked line removed. If you open this dialog again that line will no longer appear as part of the dynamic grid. By default only the lines that are currently selected in the Project Sources tree will be marked as checked. To add more lines you the append to a dynamic grid option.
