Qinsy 9.5.6 - Known Issues
The QPS team is continuously improving Qinsy to implement new functionality and documentation.
Unfortunately, there are a number of known issues in our software release.
These software issues will be solved in future maintenance releases.
Drivers - Laser - DrvLaser crashes when going Online
Problem

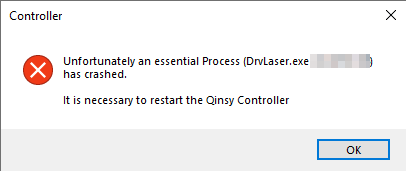

When you go online with Qinsy, using any laser driver, you will get a message which looks like this;
This mean you won’t be able to go online with Qinsy.
Workaround
We have the following patch available that you can copy into the installation folder.
The exact steps are in the Readme.txt which is included in the zip file.
Planned fix
This is fixed in Qinsy 9.6.0.
Drivers - SSS - Edgetech - Data lagging behind
Problem
Recently we received tickets from customers were the Edgetech data seems to be lagging behind.
The data is still properly recorded.
Workaround
For now the only workaround seems to be to either:
Lower the update rate by setting a wider range;
Or not to use the gap filling option.
Planned fix
This is planned to be fixed in Qinsy 9.6.0 feature release. This since the changes were to extensive to add to a maintenance release.
If you run into this problem, please reach out to QPS support.
Displays - Navigation - CAD
Converting a design file into a background file will not show lines when the start and end point of a line are outside the view. (Viewing Panel)
Recommendation
Do not convert design files into background files. If lines from a design are needed in the Navigation Display, then create a dedicated background file.
Displays - Navigation - CAD Survey Manager
The QPS team encountered a memory problem with CAD files which contain many complex blocks.
Recommendation
Do not use CAD files which contain many complex blocks. This bug will be solved in a future maintenance release.
Displays - Navigation - ENC Survey Manager
Both the Survey Manager and Navigation Display are not Per monitor DPI aware.
With two monitors, each with different display scales, the scale on the secondary monitor will not be correct.
This also affects the way the ENCs are drawn.
Recommendation
Please vote on: FQI-605
Survey Manager - Plan View - ENC
ENCs produced by Rijkswaterstaat for the Dutch province of Zeeland and ENCs produced by the Netherlands Hydrographic office cannot be displayed simultaneously due to the different usage levels and compilation scales of both producers.
For more information and updates: https://vaarweginformatie.nl/frp/main/#/page/infra_enc
Survey Manager - Sounding Grid - Import Geoid Model
Since Qinsy 9.5.0 it is possible again to import most Geoid models into a sounding grid.
The only Geoid models that cannot be imported yet, are the ones that cross the dateline (+180° East/West).
Please let us know if you do need to import such a model.
