Objects

return

	Parent Item

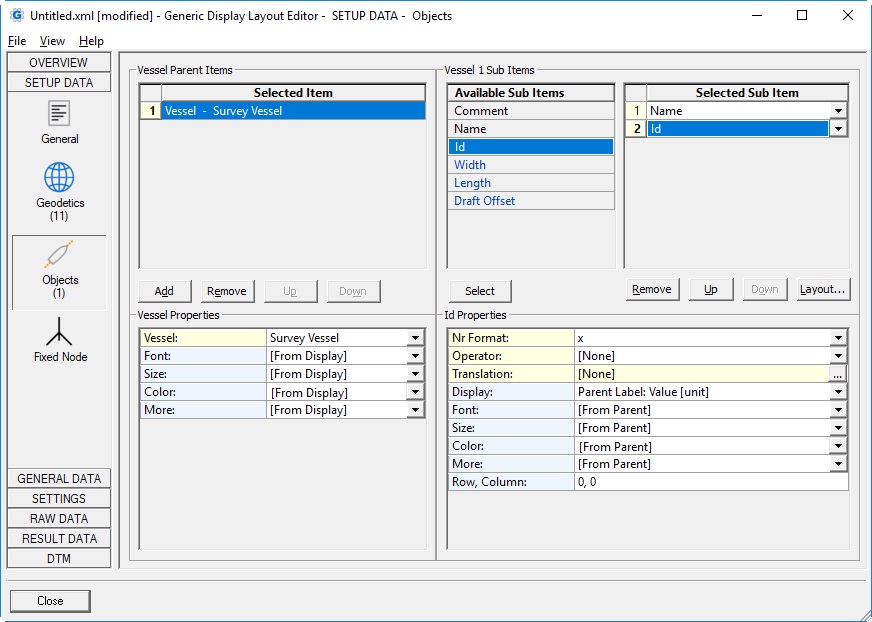

Vessel:	The first entry is always [Reference Vessel] This means that the first defined object will be used (with Object Id 1). In Db Setup you will see 'square' icon in front of the vessel name: The rest of the list will show all available objects, existing in the current selected QINSy database. (see General Layout Information about loading a QINSy database).

Sub Item

Description

Value Type

Comment

Text Format

Normal Text
Your own free plain text
Binary
Enter one or more ASCII character codes, comma or space separated, in the range between 1 and 127.
For example '2' for a binary STX character, '3' for a binary ETX character, or '13, 10' for CR+LF.
See table ASCII Codes for an overview of all possible characters.
New Line
Same as Binary but already formatted as '13, 10' (meaning CR+LF) and without a possible Field Delimiter.
A Field Delimiter may be present when your layout purpose is for Export or ASCII Logging.

text

Name

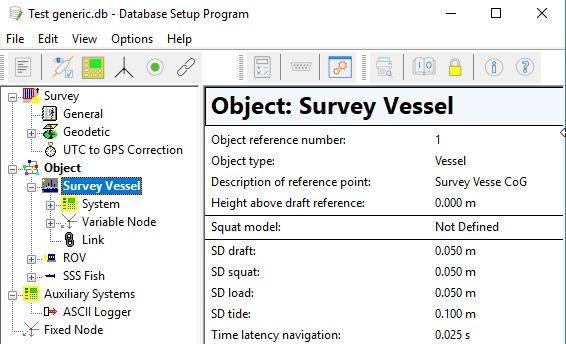

Name of the vessel (object), as entered in Db Setup

text

Id

Unique identifier, automatically set by QINSy when adding an object in the Database Setup.
The first added object in Db Setup will have id 1, and so on...

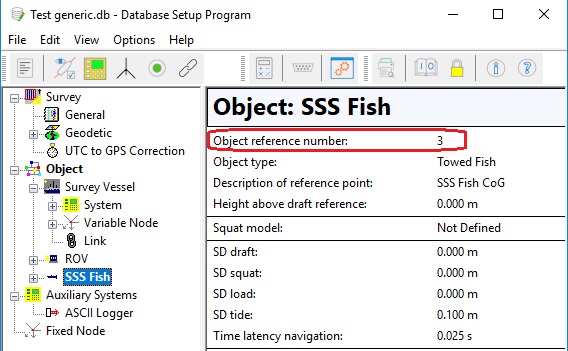

The Id can also be seen as Object reference number in the right pane of the Database Setup.:

integer

Width

Width of the object, determined from the shape definition, as defined in the Database Setup.
(I.e. the difference between the smallest and the biggest X-offset value)

double

Length

Length of the object, determined from the shape definition, as defined in the Database Setup.
(I.e. the difference between the smallest and the biggest Y-offset value)

double

Draft Offset

Value will be the Height above draft reference as entered in the Object definition of the Database Setup.

double
