General

 return

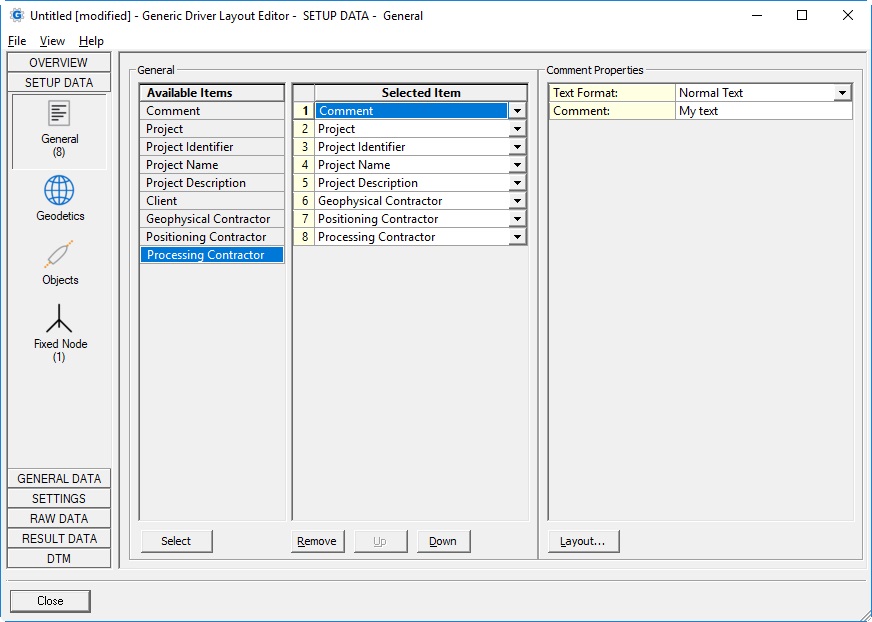

Main ItemDescriptionValue TypeProperties
CommentUser-defined texttext
Text Format
  • Normal Text
    Your own free plain text

  • Binary
    Enter one or more ASCII character codes, comma or space separated, in the range between 1 and 127.
    For example '2' for a binary STX character, '3' for a binary ETX character, or '13, 10' for CR+LF.
    See table ASCII Codes for an overview of all possible characters.

  • New Line
    Same as Binary but already formatted as '13, 10' (meaning CR+LF) and without a possible Field Delimiter.
    A Field Delimiter may be present when your layout purpose is for Export or ASCII Logging.
ProjectName of the current project, as selected in the Qinsy ConsoletextShow Full Path
  • No (default)
  • Yes

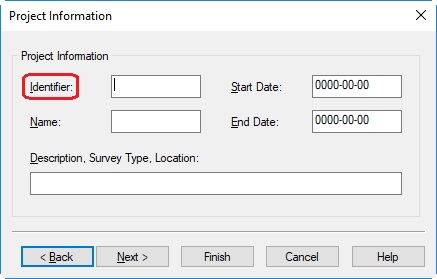

Project Identifier

As entered in Db Setup, Edit menu, General Information, Project Information

text

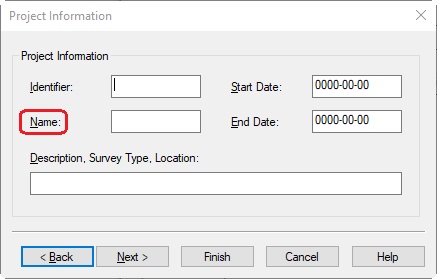

Project Name

As entered in Db Setup, Edit menu, General Information, Project Information

text

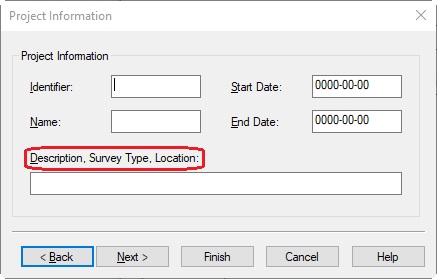

Project Description

As entered in Db Setup, Edit menu, General Information, Project Information

text

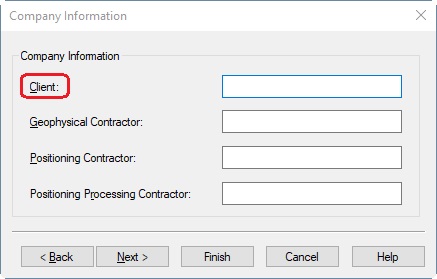

Client

As entered in Db Setup, Edit menu, General Information, Company Information

text

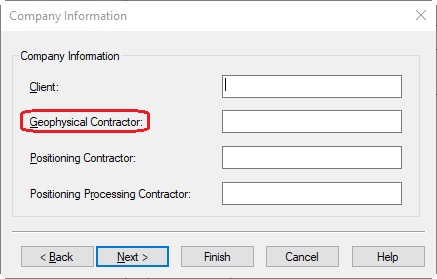

Geophysical Contractor

As entered in Db Setup, Edit menu, General Information, Company Information

text

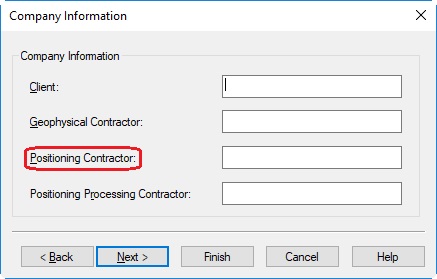

Positioning Contractor

As entered in Db Setup, Edit menu, General Information, Company Information

text

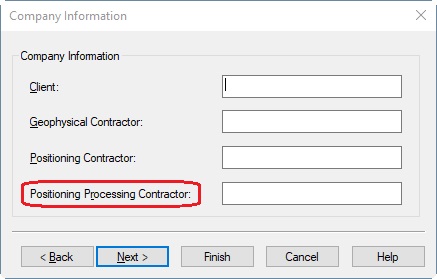

Processing Contractor

As entered in Db Setup, Edit menu, General Information, Company Information

text
