Space time notes are picked XYZ points on your surfaces, they can be used to select features or to create views for presentation
Add Note
Adding a new note will create a selection on the the surface with an X,Y and Z co-ordinate
Show Markers
This option switches on and off the marker display on the surface

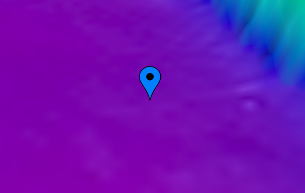

Marker Displayed on Surface

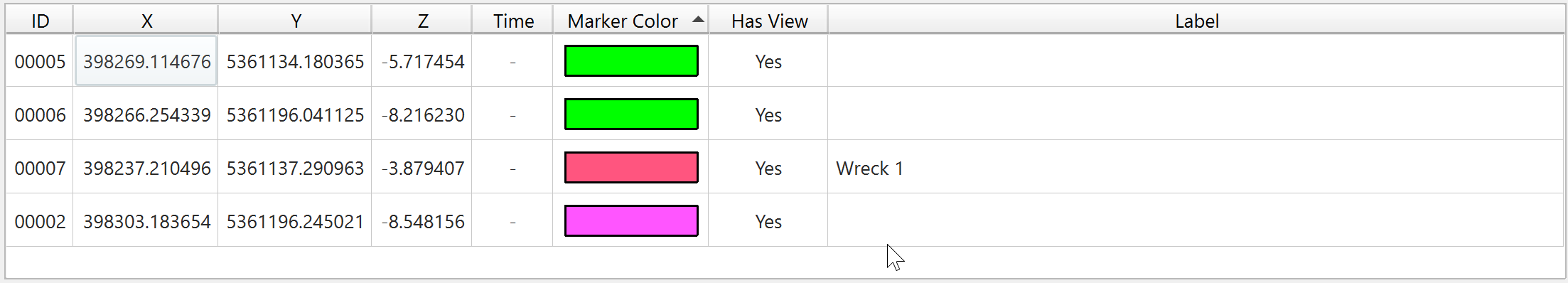

Space Time Note Display Table
The table will display all the notes in the scene, with their ID, position, time (if applicable), marker color, whether there is an associated view and the label. If there is a label included this will also be displayed on the surface.

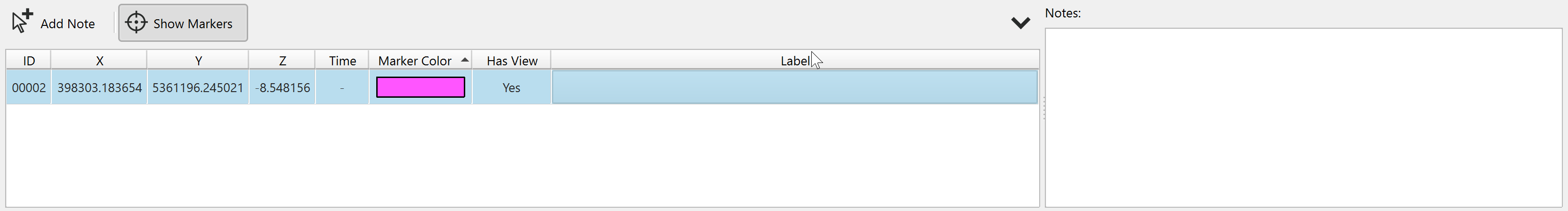

Space Time Note Table

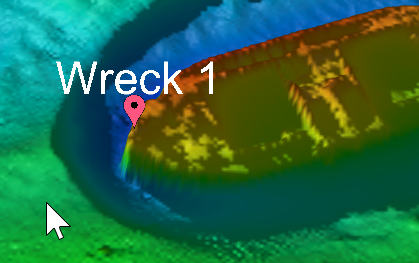

Label Displayed on Surface with Marker
Right Click Menu
Once you have selected a Space Time Note it is possible to bring up more options using Right Click.
Center in View
This option will re-center the screen on the selected Space Time Note.
Save Current View
This option will override the saved view with the currently selected one.
Add to Presentation
This will add the Space Time Note, with its information and view to the Slides Dock.
Remove...
This will remove the selected Space Time Notes.
More Actions
The More Actions drop down menu lets you access import and export operations.
Import from ASCII
This will allow you to select the required file and will launch the ASCII parsing engine to bring the data into your scene.
Export to ASCII
This will export all selected Space Time Notes to an ASCII text format with the header X, Y, Z, Date-time, Label, Notes.
Create Points from Space Time Notes
This will create points in the scene from the space time notes. You will be prompted for a file name to save the points. The points will initially have the same colors as the space time notes, this can be changed in the created points object.
Create Lines from Space Time Notes
This will create lines in the scene from the space time notes. You will be prompted for a file name to save the lines. Beware that the line(s) or portions of lines may be below the surface. Use Drape Lines in the created lines object to drape onto the surface. The color of the lines will be the default, usually white.
Notes
Text can be added to the Notes section, if the Space time notes are exported to Ascii then the Notes will also be exported, they can also be imported from an ascii file.

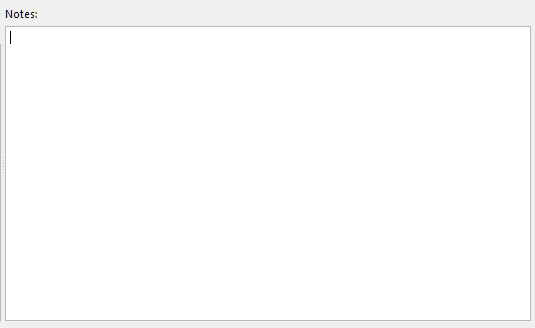

Notes Window
