Fledermaus Object Properties Dock

Object Properties Dock

Object Properties Dock

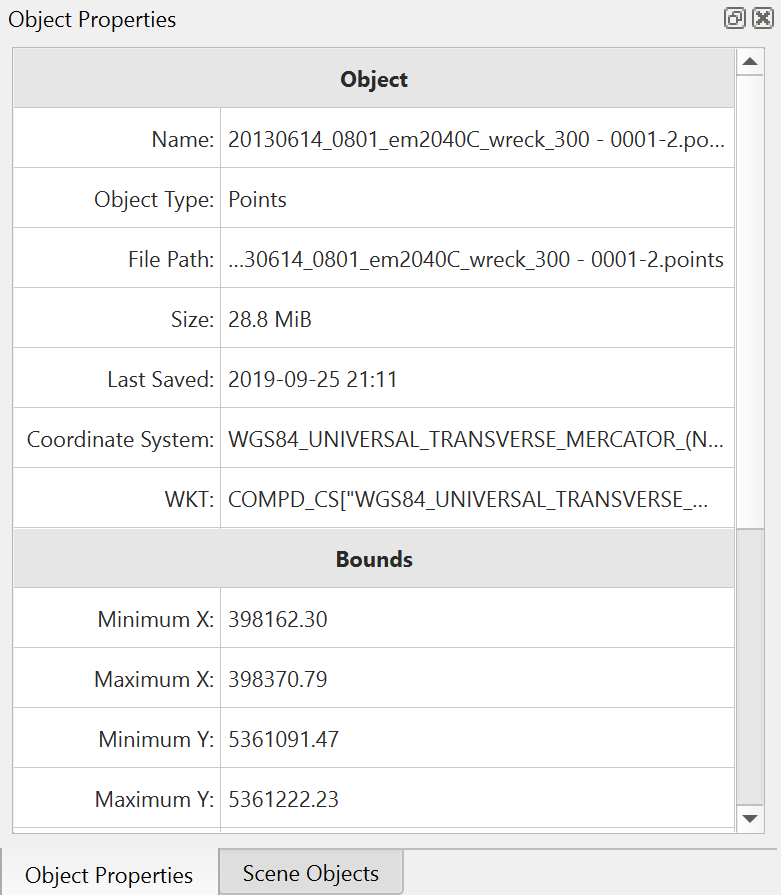

The Object Properties Dock will display specific properties for the object selected in the Scene object dock. Object metadata, such as name, Object type, File path location, size on disk, Last time saved, Coordinate System and WKT.

Depending on the scene object types the Object properties can be the following:

Surface

Object Metadata, Bounds, Solid Model

Points

Object Metadata, Bounds, Point number (total), Number of clusters (if any).

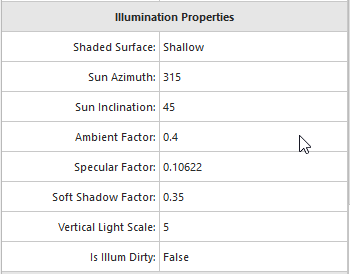

Illumination Properties

This section contains the illumination properties for the selected surface. Is Illum Dirty indicates whether shading has been computed for this surface. And, the Shaded Surface indicates the layer for which the shading has been computed, shallow, deep, average, or cube.
