DM-0388

Additional notes for Magnetometers

• Database Setup



  Add manual echosounder

  Please be aware that you need to add a Manual echosounder to your towed object to be able to process the track of the towed object.

• Online / Replay



  Since Qinsy version 8.10.2014.10.20:

  • Storing magnetometer data to a sounding grid has the option to create a corridor perpendicular to the sailing direction. I.e. that the full path of the corridor is filled automatically with each single reading of the magnetometer.

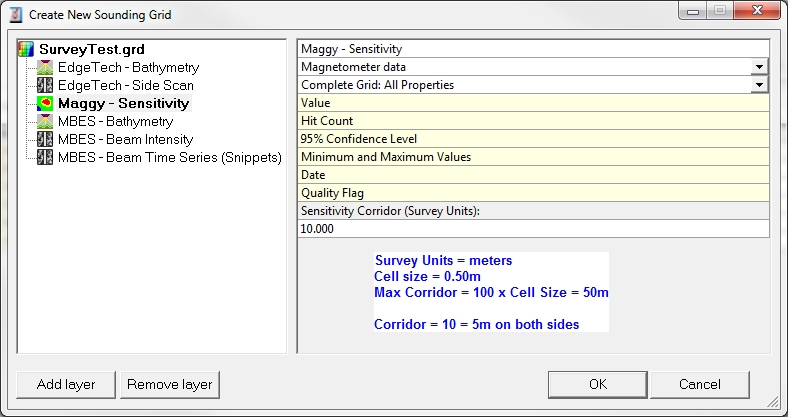

    To set this corridor width value, go to the layer properties in the Controller Session Setup, Storage, Sounding grid or use the Sounding Grid Utility, making sure that the layer type is 'Magnetometer data'.

    The maximum width of the corridor is 100 times the minimum cell size of the sounding grid
